1x4 VGA Splitter
P/N: AV-GM06P3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM06P3-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG AV-GM06P3-S1

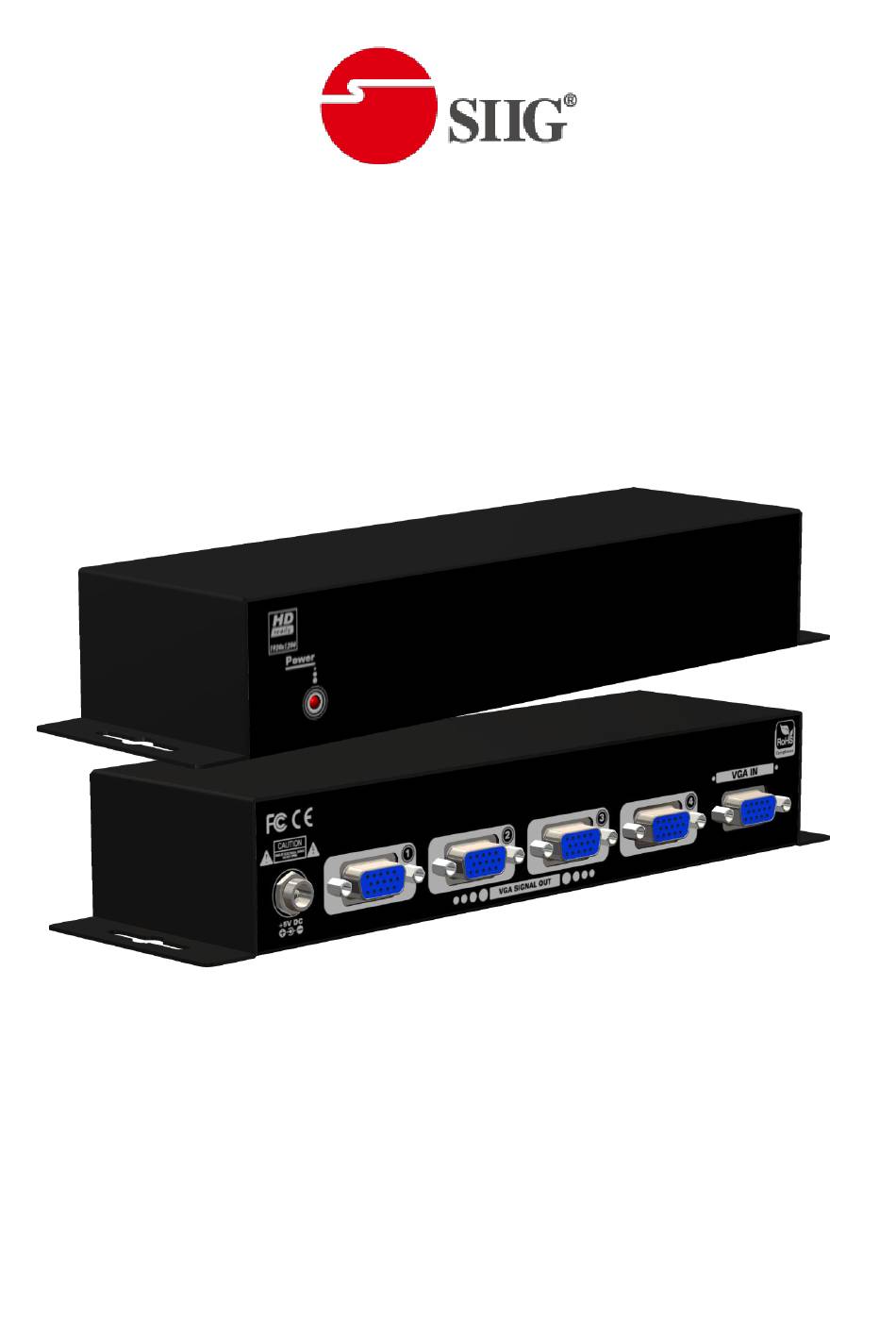

  • Page 1 1x4 VGA Splitter P/N: AV-GM06P3-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM06P3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    VGA, component, or composite video applications. The AV-GM06P3-S1 not only takes one video input from a VGA/YPbPr/CVBS source and immediately directs it to four VGA/YPbPr/CVBS monitors or projectors, but also boosts and extends the signal up to 65m (210ft) without noticeable signal loss or picture degradation.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM06P3-S1 Technical Output Ports Supported input/output Video bandwidth 400MHz Video support WUXGA [1920x1200@60] & UXGA [1600x1200@60] or even higher Transmission UXGA – 65m [210ft] Audio support VGA connector HD-15 [15-pin D-sub female] Mechanical Housing Metal case 206 x 61 x 33mm [8.1” x 2.4” x 1.3”]...
  • Page 5: Panel Descriptions

    PANEL DESCRIPTIONS Rear Panel Power LED +5V DC: Connect to 5V 2A DC interlocking power adapter VGA OUT: VGA output to a remote video display VGA IN: VGA input from a video source...
  • Page 6: Hardware Installation

    HARDWARE INSTALLATION 1. Connect a PC source (or a component/composite source with a YPbPr-to-VGA adapter) to the VGA/YPbPr/CVBS input of the AV-GM06P3-S1. 2. Connect two VGA monitors or projectors to the VGA outputs (or two component/composite displays with two YPbPr-to-VGA adapters to the VGA outputs).
  • Page 7: Warranty

    Also, the technical information contained herein regarding the AV-GM06P3-S1 features and specifications is subject to change without further notice. Support For more info or tech support http://www.siig.com/support...
