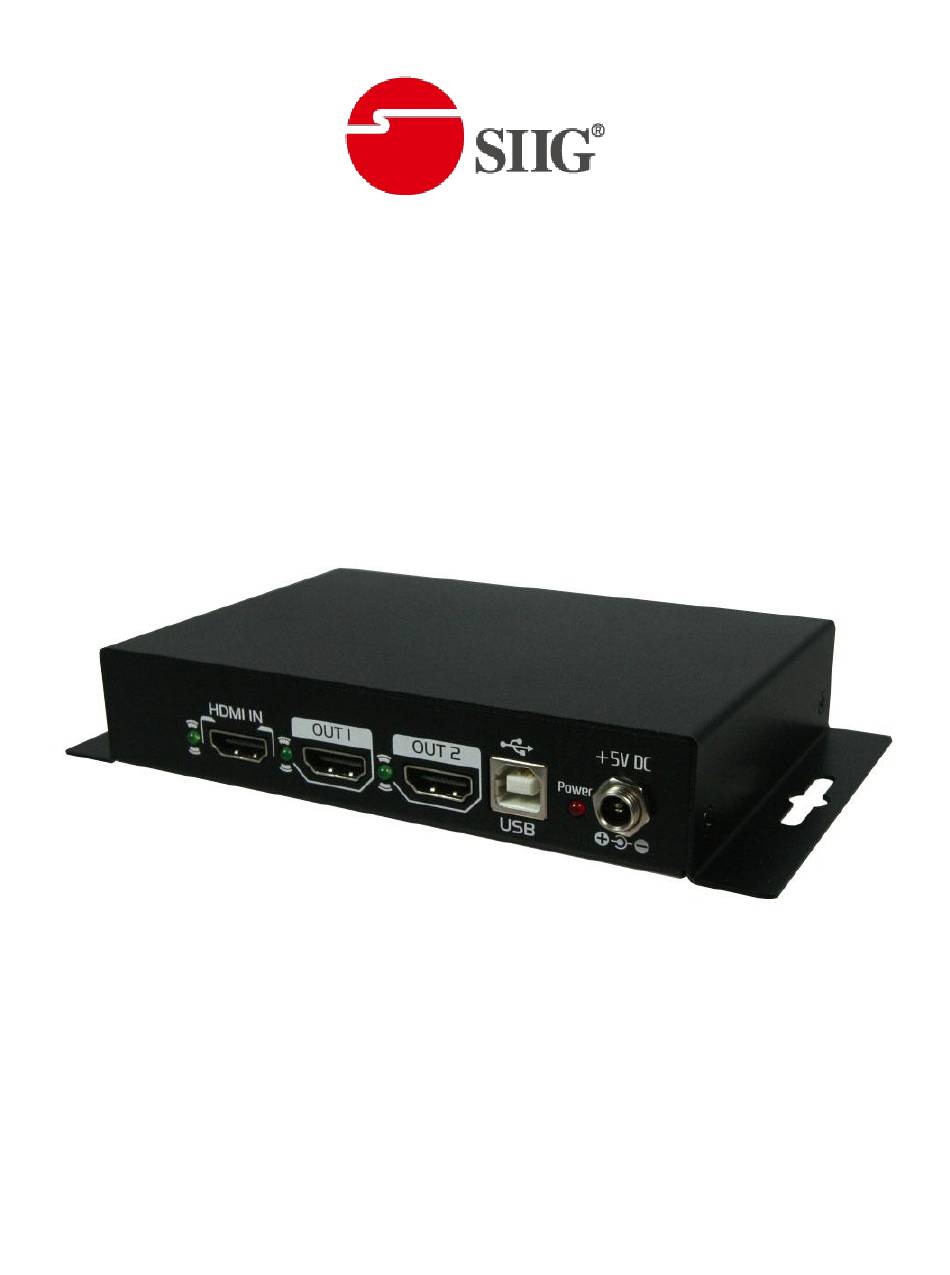

1x2 HDMI Splitter with Dedicated CEC
P/N: AV-GM05G3-S1

Advertisement

loading

Related Manuals for SIIG AV-GM05G3-S1

Summary of Contents for SIIG AV-GM05G3-S1

  • Page 1 1x2 HDMI Splitter with Dedicated CEC P/N: AV-GM05G3-S1...

  • Page 2: Safety And Notice

    However, like all electronic equipments, the AV-GM05G3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction The AV-GM05G3-S1 1x2 HDMI Splitter with Dedicated CEC provides the most cost effective and advanced HDMI 1.3 splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing quality. With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed.
  • Page 4 Specifications & Package Contents Model Name AV-GM05G3-S1 Technical Role of usage 1x2 Distribution Amplifier (Splitter) HDMI compliance High Speed HDMI-Deep Color&Full 3D support DVI compliance DVI 1.0 HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support Up to WUXGA [1920x1200@60Hz] & FullHD [1080p@60Hz]...

  • Page 5: Panel Descriptions

    1x SP-5002E Package Contents 1x 5V power adapter 1x User Manual Panel Descriptions Rear Panel 1. HDMI IN: HDMI input source 2. HDMI OUT: Distributed HDMI outputs 3. USB IN: For firmware update use only 4. Power Indicator: When power on, the LED will blink. 5.

  • Page 6: Hardware Installation

    Hardware Installation Broadcasts HDMI signal to 2 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply. 5.
  • Page 7 Notice 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.

  • Page 8: Limited Warranty

    Limited Warranty The SELLER warrants the AV-GM05G3-S1 1x2 HDMI Splitter with Dedicated CEC to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 3...
