SIIG AV-GM05L3-S1 User Manual

SIIG AV-GM05L3-S1 User Manual

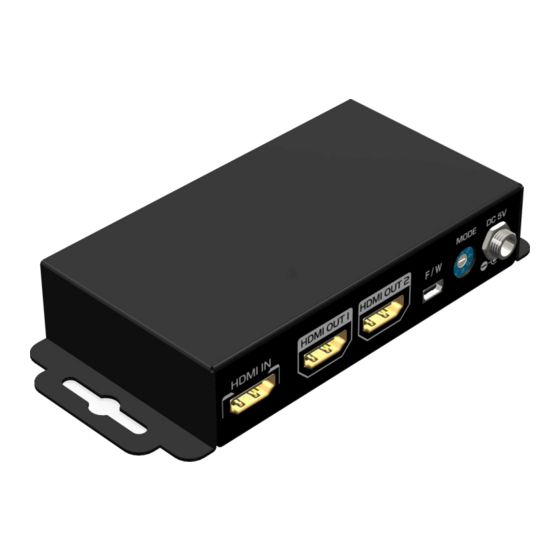

1x2 hdmi 4k2k splitter with built-in & user adjustable edid management

Advertisement

Quick Links

1x2 HDMI 4K2K Splitter with Built-in & User
Adjustable EDID Management
P/N: AV-GM05L3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM05L3-S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIIG AV-GM05L3-S1

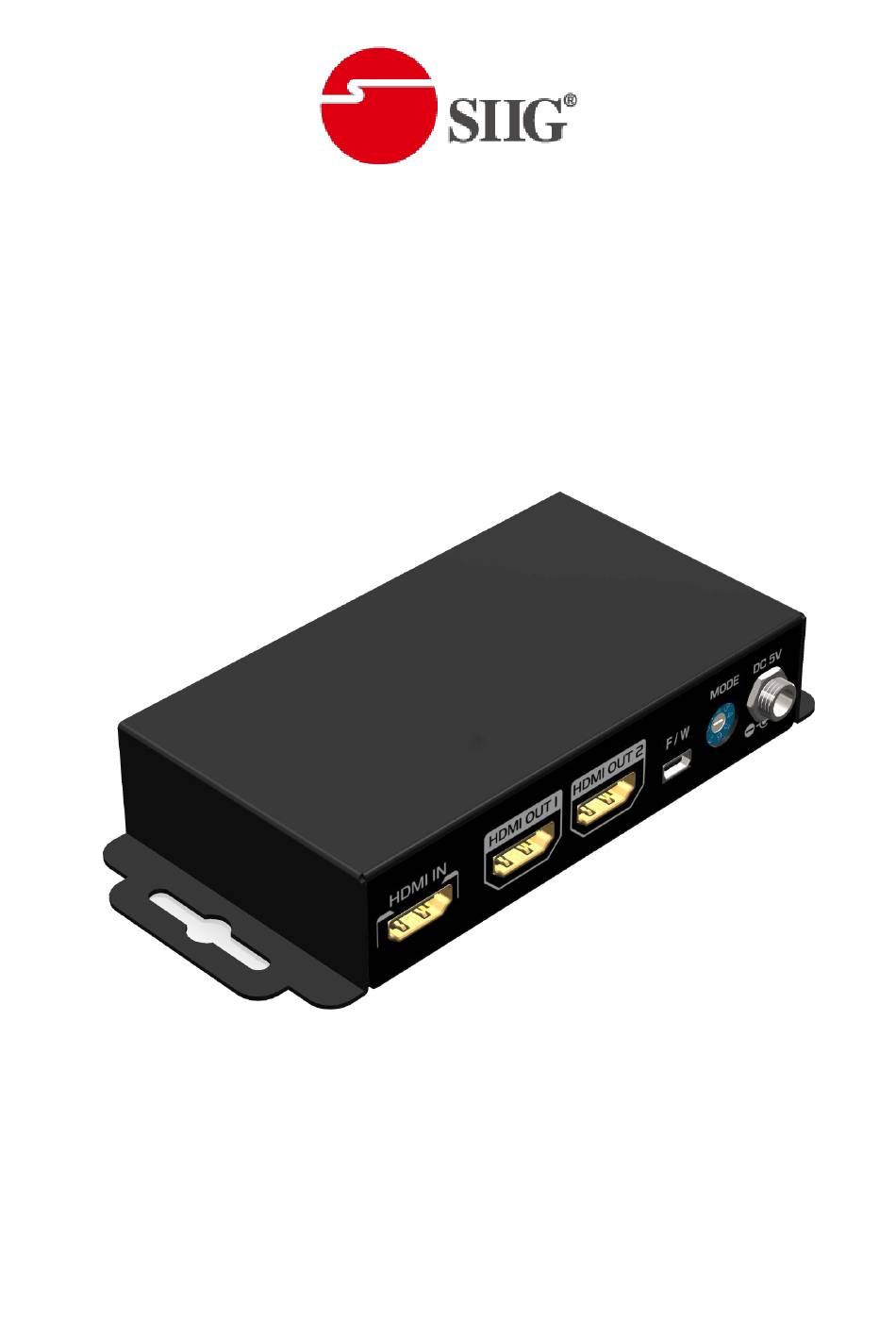

  • Page 1 1x2 HDMI 4K2K Splitter with Built-in & User Adjustable EDID Management P/N: AV-GM05L3-S1...
  • Page 2 1x2 HDMI 4K2K Splitter with Built-in & User Adjustable EDID Management has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AV-GM05L3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3 HDMI splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 2 different locations without losing quality. AV-GM05L3-S1 supports all 3D formats and the true 4K2K video! With built-in RS-232 firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed.
  • Page 4 SPECIFICATIONS Model Name AV-GM05L3-S1 Technical Role of usage 1x2 Distribution Amplifier (Splitter) HDMI compliance HDMI Deep Color, full 3D & 4K2K DVI compliance DVI 1.0 HDCP compliance HDCP 1.3 Video bandwidth Single-link 340MHz [10.2Gbps] Video support Up to 4K2K @30...
  • Page 5 Operation 0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS 1. Signal LED: Signal LED indicator 2. Power LED: Lights on when device is ready 3. HDMI IN: Connect to a HDMI input source 4.
  • Page 6 HARDWARE INSTALLATION Broadcasts HDMI signal to 2 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the displays. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply. 5.
  • Page 7 NOTICE 1. While connecting a new monitor to the splitter under mode6 (auto EDID) & mode7 (EDID learning), experiencing a short period of time without display might be expected. The splitter will do Automatic EDID learning which analyzes the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.
  • Page 8 The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM05L3-S1 features and specifications is subject to change without further notice.
