Summary of Contents for SIIG AV-GM06M3-S1

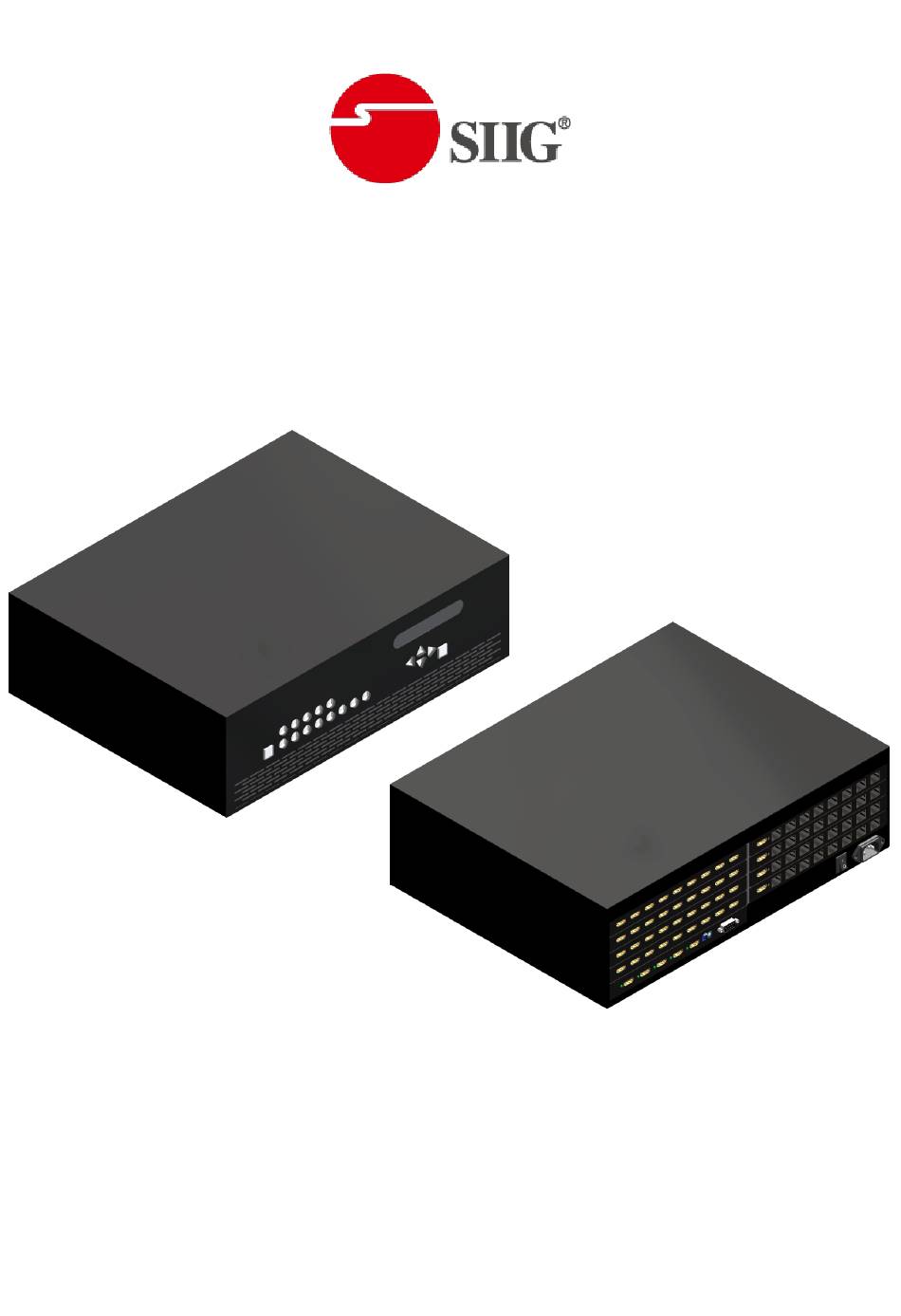

- Page 1 5x64 HDMI Splitter in Modularized HDMI/Cat.X Out P/N: AV-GM06M3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM06M3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
HDMI splitter with flexible output port expansion capability in the market. The number of HDMI outputs of AV-GM06M3-S1 can be up to 64 in typical HDMI connectors or CAT5 connectors. AV-GM06M3-S1 offers the first HDMI distribution system which can be easily expanded to have more outputs with plug daughter boards to increase the size of high definition HDMI distribution network. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM06M3-S1 Technical Role of usage 5x64 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 24/30/36-bit color Transmission over UTP Full HD (1080p)-40m (130ft) [CAT.X]... -
Page 5: Package Contents
Relative humidity 20~90% RH [no condensation] * The number of HDMI or cat-5/5e/6 is depended on the daughter boards. PACKAGE CONTENTS ● 1x AV-GM06M3-S1 ● 1x Rack-mounting ear set ● 1x UL AC C13 power cord ● 1x User Manual... - Page 6 Up Button: Use to select sub menu or increase number Down Button: Use to select sub menu or decrease number Left Button: Use to go back the previous item Right Button: Used to select the sub menu show on VFD Set Button: Use to set the change Rear Panel HDMI Signal Local Inputs: Local input from Group 1 to Group 8...
-
Page 7: Dip Switch Setting
DIP SWITCH SETTING DIP Switch Position Video Audio Description Pin 1 Pin 2 Default Mode — Up to 1080p Surround Up to 1080p & surround sound audio output up to 7.1ch (DTS-HD Master & Dolby TrueHD) Safe Mode — On [ ] Up to 1080p Stereo Make the system output at 1080p video and... -
Page 8: Hardware Installation
HDMI cable. 2. Set the DIP switch position pin 1 at ON [ ]. 3. Please reboot the AV-GM06M3-S1 and wait for 30 seconds. Then the EDID learning sequence will be completed after the 30 seconds. 4. Resume the installation (see Hardware Installation section for more detail). -
Page 9: Connection Diagram
CONNECTION DIAGRAM... -
Page 10: Firmware Update
FIRMWARE UPDATE This section is for technical support only. Do not try The definition of rotary switch is listed below. When the user is going to do firmware update, please set the rotary switch from O to F first. Once the procedure is done, please switch it back to 0. Normally, user should keep the position of the rotary switch at 0. -
Page 11: Operation
Method A: Push-in Button There are two ways to control AV-GM06M3-S1 via the front panel. The easiest method is to control via the left side of the front panel. The first step is to select one input as the Main input. And then decide if it follows the Main Input or adopt its Sub Input output module by output module. - Page 12 Sub Menu – Status [Show the Global/Local input for each output module] Use UP button and Down button to switch the information. If user doesn’t push any button in this mode, the system will go back to Main Menu automatically few minutes later.
- Page 13 Method B: Software Control through RS-232 or USB port COM Port ： The software will automatically detect which COM port is occupied in the PC. Please choose the correct COM port first and press Connect button to connect the device and PC. After connection, user also can press Disconnect button to terminate connection.
-
Page 14: Pin Definition
If there is no daughter board inserted into the output module port, the software will disable the corresponding drop-down menu to avoid any misunderstanding. PIN DEFINITION HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12... -
Page 16: Notice
NOTICE 1. When adjusting the signal level on the receiver unit, please dial the rotary control switch from 7 to 0 and stop turning the rotary switch whenever the audio/video is playing normally. Inappropriate signal level setting may cause overpowering issue that would shorten the product life significantly! 2. -
Page 17: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06M3-S1 features and specifications is subject to change without further notice.
