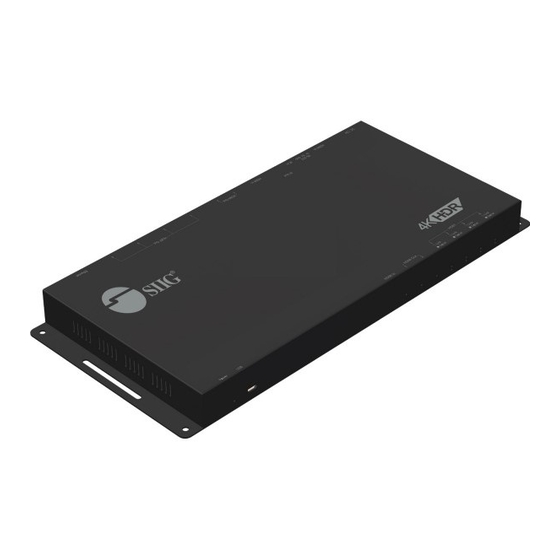

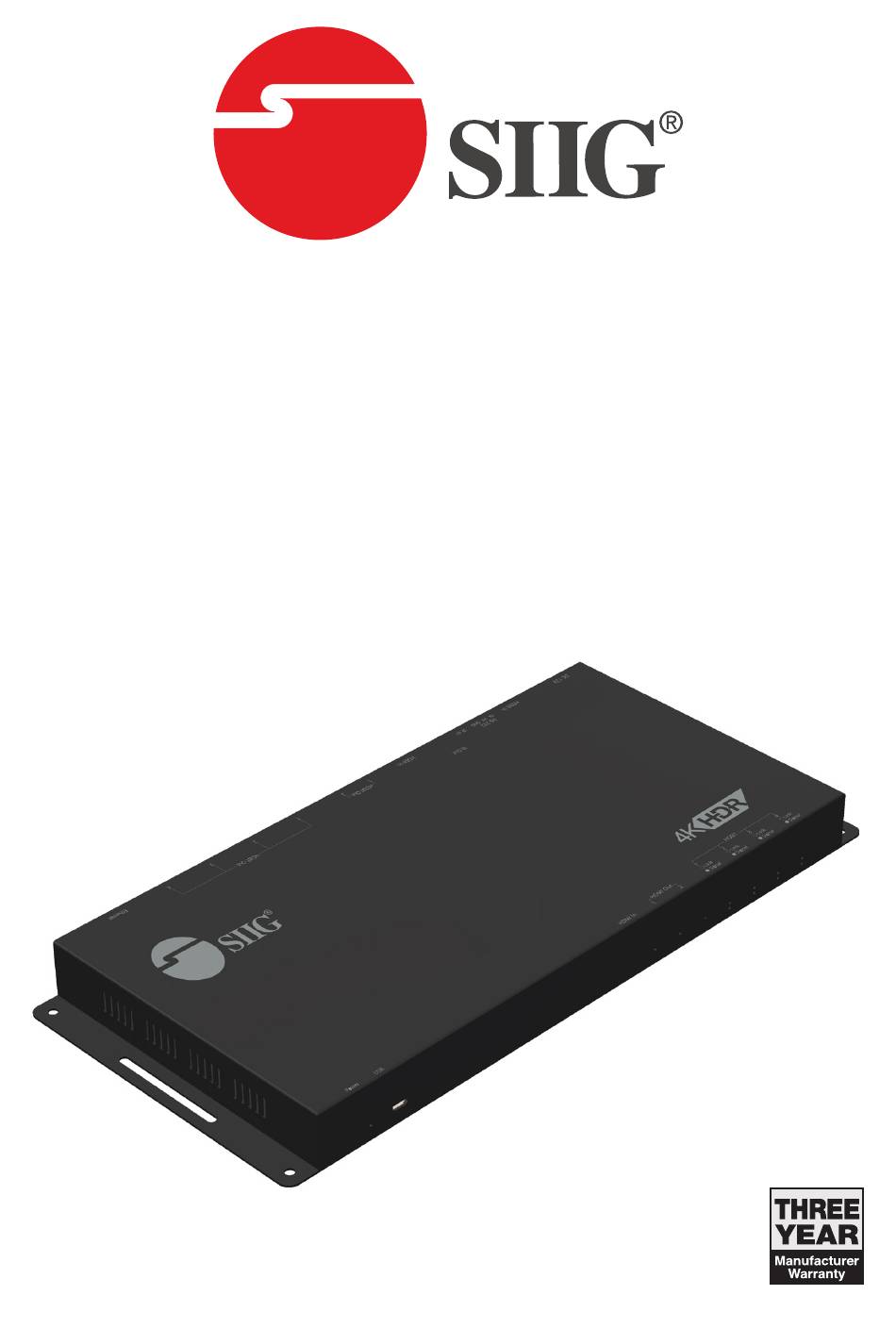

- Page 1 HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling User Manual 04-1192A P/N: CE-H24N11-S1...
-
Page 2: Package Contents
Safety and Notice The device has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the device should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Thank You for your purchase! Features • HDMI 2.0a compliant • Supports 4K2K@60 4:4:4 8bits • Supports HDR which is 4K2K@60 4:2:0 10bits • Extends HDMI signal up to 198ft from the HDMI source at Full HD 1080p 36-bit, 114ft at 4K2K@60 444 (4K-HDR Technology) •...
- Page 4 Layout TX Front Panel Power LED: Micro-USB: For technical support only [firmware update] HDMI Signal LED: Input signal LED indicator (From the left side to the right is Loopout #1signal LED indicator and Loopout #2 signal LED indicator) Link Receiver LED: Link LED indicator 1- 4 HDMI Signal LED: Output signal LED indicator 1- 4 Rear Panel Power jack: Connect to the DC 12V/7.5A power supply unit...
- Page 5 RX Panel Micro-USB: For technical support only [firmware update] HDMI Signal LED: Output #1 signal LED indicator HDMI Signal LED: Output #2 signal LED indicator Power LED: Link LED: Signal LED: When receive the HDMI signal, LED light will shine RJ45: Plug in a Cat5e/6 cable that needs to be linked to the TX IR Receiver: Plugging in the extension cable of IR receiver IR Blaster: Plugging in the extension cable of IR blaster...
- Page 6 EDID Switch / Dip Switch MODE 0 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 7.1ch audio MODE 1 Ultra HD(4K2K@60) – 8/10/12bit 3D HDR video & 2ch audio MODE 2 Ultra HD(4K2K@30)(4K2K@60 420) – 8/10/12bit 3D HDR video & 7.1ch audio MODE 3 Ultra HD(4K2K@30)(4K2K@60 420) –...
- Page 7 Firmware update Main Board Power on the device Connect the Micro-USB cable between PC and device Open firmware update software Set the correct COM port and “DO NOT” click OPEN button Click the Open Dialog button to open the Update window Click the File button to select the main board firmware file Click the Start button and the firmware will start to update After updating, please power cycle the device...
- Page 8 Click the File button to select the output firmware file Click the Start button and the firmware will start to update After updating, please power cycle the device Support For more info or tech support http://www.siig.com/support Feb, 2019 Copyright © 2019 by SIIG, Inc. All rights reserved.
