4Kx2K & EDID Management
Introduction

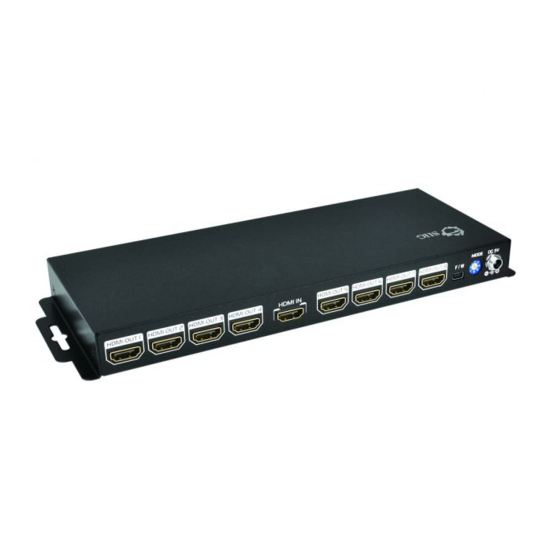

The 1x8 HDMI Splitter with 4Kx2K & EDID Management
splits one HDMI signal to eight HDMI displays at up to
4Kx2K resolution.
Key Features and Benefits
•
Broadcast HDMI video/audio signals from one
HDMI source to eight displays without losing
quality
•
Supports HDMI Deep Color & 3D
•
Supports 1080p and up to 4Kx2K PC resolution
•
Supports Dolby Digital, DTS-HD and Dolby True-
HD audio
•
Video bandwidth: 340MHz (10.2Gbps)
•
Embedded default EDID and EDID learning ability
Package Contents
•
1x8 HDMI Splitter with 4Kx2K & EDID Management
•
Power adapter (Output: 5V/4A)
•
Power cord
•
Mounting screws (2)
•
Installation guide
04-0947A
1x8 HDMI Splitter with
Installation Guide
1
Advertisement
Related Manuals for SIIG 1x8 HDMI Splitter with 4Kx2K & EDID Management
Summary of Contents for SIIG 1x8 HDMI Splitter with 4Kx2K & EDID Management
- Page 1 1x8 HDMI Splitter with 4Kx2K & EDID Management Installation Guide Introduction The 1x8 HDMI Splitter with 4Kx2K & EDID Management splits one HDMI signal to eight HDMI displays at up to 4Kx2K resolution. Key Features and Benefits • Broadcast HDMI video/audio signals from one HDMI source to eight displays without losing quality •...
- Page 2 Layout DC 5V MODE HDMI HDMI HDMI HDMI OUT 1 OUT 2-4 OUT 5-8 Figure 1: Rear Panel • HDMI IN: Connects to your HDMI source device by using an HDMI cable (cable not included) • HDMI OUT 1-8 (left to right): Connects to your HDMI displays by using HDMI cables (cables not included) •...
-
Page 3: Hardware Installation
Hardware Installation Power off all devices you plan to connect to the Splitter. Connect your HDMI source's HDMI output to the Splitter's HDMI IN using an HDMI cable (HDMI cable not included). Connect your HDMI displays to the Splitter's HDMI OUT using HDMI cables (HDMI cables not included). - Page 4 Firmware update EDID Full-HD (1080p@60) - 24bit 2D video & 7.1ch audio EDID Full-HD (1080p@60) - 24bit 2D video & 2ch audio EDID Full-HD (4K2K@30) - 24bit 2D video & 7.1ch audio EDID Full-HD (4K2K@30) - 24bit 2D video EDID HD (1080p@30)(1080i@60)(720p@ 60) - 24bit 2D video &...
- Page 5 Application 3DTV 3DTV HDMI source * Input length: 5m (Max) * Output length: 10m (Max) Figure 3: Application...
- Page 6 Blank Page...
-
Page 7: Technical Support And Warranty
(2) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. - Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 1x8 HDMI Splitter with 4Kx2K & EDID Management is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.
