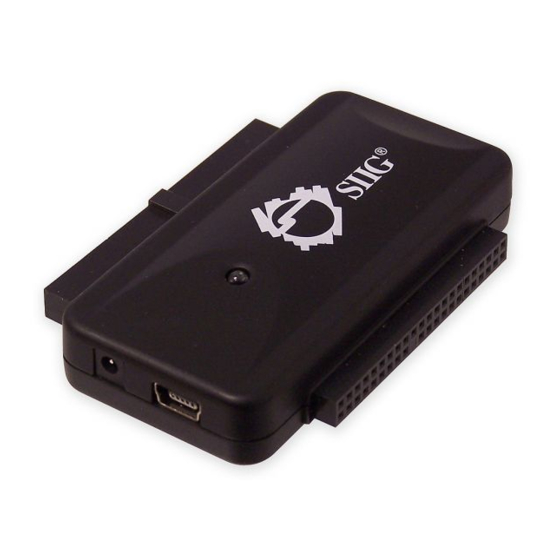

Introducing the USB 2.0 to SATA/IDE
The USB 2.0 to SATA/IDE allows you to connect a
barebone SATA/IDE disk drive through a USB port.
Features and Benefits
•
Fully compliant with USB 2.0 & USB 1.1
•
Transfer Rate: High-Speed up to 480 Mbps data
transfer rate
•
Access any 2.5
drive through USB 2.0 port
•
Compatible with any IDE or SATA drive of any
brand or size
•
Supports Ultra DMA 0-6 and Multi-word DMA 0-2
System Requirements
•
Desktop or notebook PC computer with an available
USB 2.0 port
•
Windows
/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-
/64-bit) / Server 2008 R2 / 2000
04-0477C
USB 2.0 to SATA/IDE
Quick Installation Guide
or 3.5
"
8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-
®
SATA or 2.5
"
or 3.5
IDE
"
"
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG USB 2.0 to SATA/IDE
Summary of Contents for SIIG USB 2.0 to SATA/IDE
- Page 1 USB 2.0 to SATA/IDE Quick Installation Guide Introducing the USB 2.0 to SATA/IDE The USB 2.0 to SATA/IDE allows you to connect a barebone SATA/IDE disk drive through a USB port. Features and Benefits • Fully compliant with USB 2.0 & USB 1.1 •...
-
Page 2: Hardware Installation
Package Contents • USB 2.0 to SATA/IDE adapter • Power adapter with molex cable • Power cord • Serial ATA data cable • 4-pin white molex to black Serial ATA power adapter • Mini USB cable • Quick installation guide Layout 40-pin IDE connector for IDE 3.5"... - Page 3 2.5" IDE Hard Disk 44-pin IDE connector is protected against polarity and should be easily connected to the device. If not, check if your connection points are appropriately aligned. Connect the 44-pin IDE connector of the adapter to the 2.5" HDD. Attach the provided power supply to your 2.5"...
- Page 4 Plug the adapter into the USB port of your PC via the mini USB cable. Figure 3: Connecting 3.5 IDE HDD 2.5"/3.5" SATA Drive Connect SATA to device. Attach the provided power supply to your SATA drive. Plug the adapter into the USB port of your PC via the mini USB cable.
-
Page 5: Led Status
Windows Driver Installation No driver installation needed. To Verify Windows Installation 1. Check Device Manger to verify installation. For Windows 8 / 7 / Server 2008 R2: Right click Computer, click Manage, then click Device Manager. For Windows Vista: Right click Computer, click Manage, click Continue, click Device Manager. - Page 6 Blank Page...
- Page 7 (5) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 USB 2.0 to SATA/IDE is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
