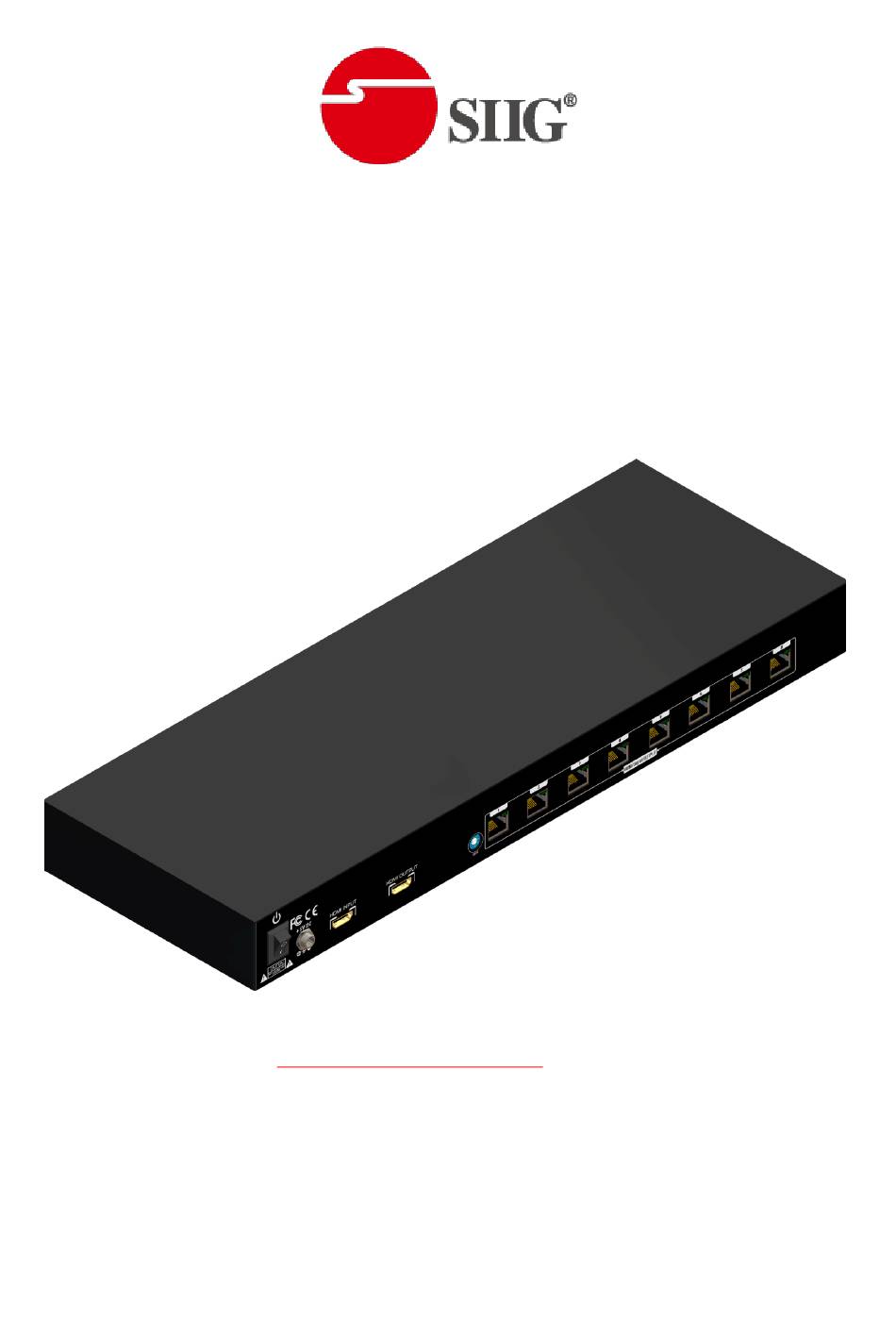

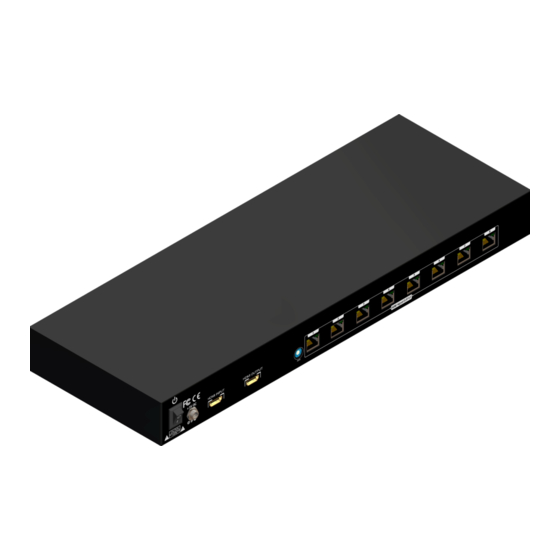

1x9 HDMI over Single CAT5 Splitter with
Local Output
To avoid EMI issue, complete STP Cat6 cable is strongly recommended!
P/N: AV-GM0683-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM0683-S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIIG AV-GM0683-S1

  • Page 1 1x9 HDMI over Single CAT5 Splitter with Local Output To avoid EMI issue, complete STP Cat6 cable is strongly recommended! P/N: AV-GM0683-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM0683-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    9 HDMI-enabled displays through cost effective Cat-5/5e/6 cables with CAT5 receivers (CE-H20111-S1) and/or mini-receivers (CE-H20111-S1). The AV-GM0683-S1 has a local HDMI output for easy monitoring or cascading to another HDMI splitter. With the built in equalization, the input HDMI cable can be extended up to 20 meters long under Full HD 1080p, and make the overall transmission distance superior than regular HDMI splitters in the market.
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM0683-S1 Technical Role of usage 1x9 splitter / transmitter [TX] HDMI compliance HDMI Deep Color & full 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 12-bit HDMI over UTP Full HD (1080p)-40m (130ft) [CAT.X]...
  • Page 5: Panel Descriptions

    HDMI INPUT: Connect to one HDMI source device HDMI OUTPUT: Connect to a HDMI display for local monitoring or cascade to another HDMI splitter such as AV-GM0643-S1, AV-GM0683-S1 or AV-GM06B3-S1 MODE: 0 = [Video] –2D / Full-HD 24bit 1080p@60 [Audio] – up to 7.1ch surround soundt 1 = [Video] –2D / Full-HD 24bit 1080p@60 [Audio] –...
  • Page 6 4 = [Video] –2D / HD 24bit (1080p@30)(1080i@60)(720p@60) [Audio] – up to 7.1ch surround sound 5 = [Video] –2D / HD 24bit (1080p@30)(1080i@60)(720p@60) [Audio] – up to 2.0ch surround sound 6 = [Video] –3D / Full-HD 36bit (1080p@60) [Audio] – up to 2.0ch surround sound 7 = [EDID Learning Mode] –...
  • Page 7: Hardware Installation

    HARDWARE INSTALLATION Broadcasts HDMI signals to 1 local and 8 remote displays from one video source 1. Switch off all devices, including displays. 2. Connect a HDMI display or another cascaded HDMI splitter to the HDMI OUTPUT port. 3. Connect a HDMI source (such as a Blu-ray Disc player) to the HDMI INPUT port. 4.
  • Page 8: Pin Definition

    PIN DEFINITION HDMI Type A (Receptacle) HDMI Pin 1 TMDS Data2+ Pin 11 TMDS Clock Shield Pin 2 TMDS Data2 Shield Pin 12 TMDS Clock– Pin 3 TMDS Data2– Pin 13 Pin 4 TMDS Data1+ Pin 14 Reserved (N.C. on device) Pin 5 TMDS Data1 Shield Pin 15...
  • Page 9: Notice

    NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI or HDMI display EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C.
  • Page 10: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0683-S1 features and specifications is subject to change without further notice.
