- Page 1 1x4 HDMI Splitter with Dedicated CEC P/N: AV-GM05Q3-S1...
-
Page 2: Safety And Notice
However, like all electronic equipments, the AV-GM05Q3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction The AV-GM05Q3-S1 1x4 HDMI Splitter with Dedicated CEC provides the most cost effective and advanced HDMI 1.3 splitter solution on the market, by which the high definition video and high quality audio can be transmitted to 4 different locations without losing quality. With built-in USB firmware update mechanism, the compatibility among countless HDMI sources and receivers can be further guaranteed.
- Page 4 Weight Package 985 [2.2 lb] Fixedness Wall-mount with screws Power supply 5V 2A DC Power consumption 10 Watts [max] Operation 0~40C [32~104F] temperature Storage temperature -20~60C [-4~140F] Relative humidity 20~90% RH [no condensation] Package Contents 1x AV-GM05Q3-S1 ~ 3 ~...
- Page 5 1x 5V power supply unit 1x User Manual ~ 4 ~...
-
Page 6: Panel Descriptions

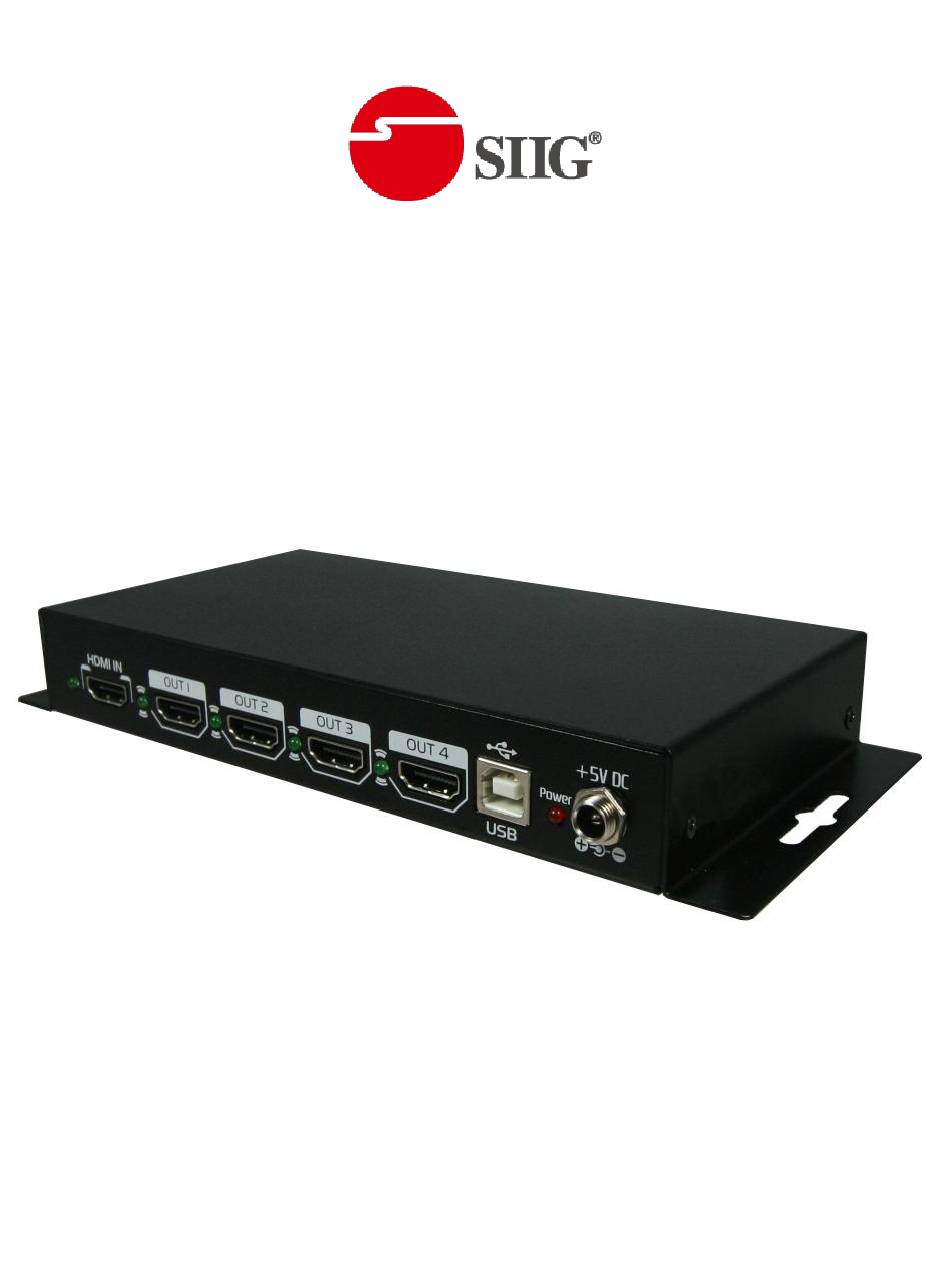

Panel Descriptions Rear Panel 1. HDMI IN: HDMI input source 2. HDMI OUT: distributed HDMI outputs 3. USB IN: for firmware update use only 4. Power: Red light means power is on 5. +5V DC interlocking power jack: connect to 5V 2A interlocking power supply unit When the connected HDMI monitor is verified as HDMI and HDCP compliant, the corresponding green LED will blink. -
Page 7: Hardware Installation
Hardware Installation Broadcasts HDMI signal to 4 HDMI displays! 1. Switch off all devices, including monitors. 2. Connect to the receivers. 3. Connect an HDMI source (such as a Blu-ray Disc player) to the HDMI In. 4. Plug in 5V DC power supply unit. 5. - Page 8 Notice 1. While connecting a new monitor to the splitter, experiencing a short period of time no display may be expected. Automatic EDID learning will analyze the newly connected monitor to see if the EDID for the HDMI input is necessary to update! 2.
-
Page 9: Limited Warranty
Limited Warranty The SELLER warrants the AV-GM05Q3-S1 1x4 HDMI Splitter with Dedicated CEC to be free from defects in the material and workmanship for 3 years from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 3... - Page 10 Support For more info or tech support http://www.siig.com/support April, 2018 ~ 9 ~...
