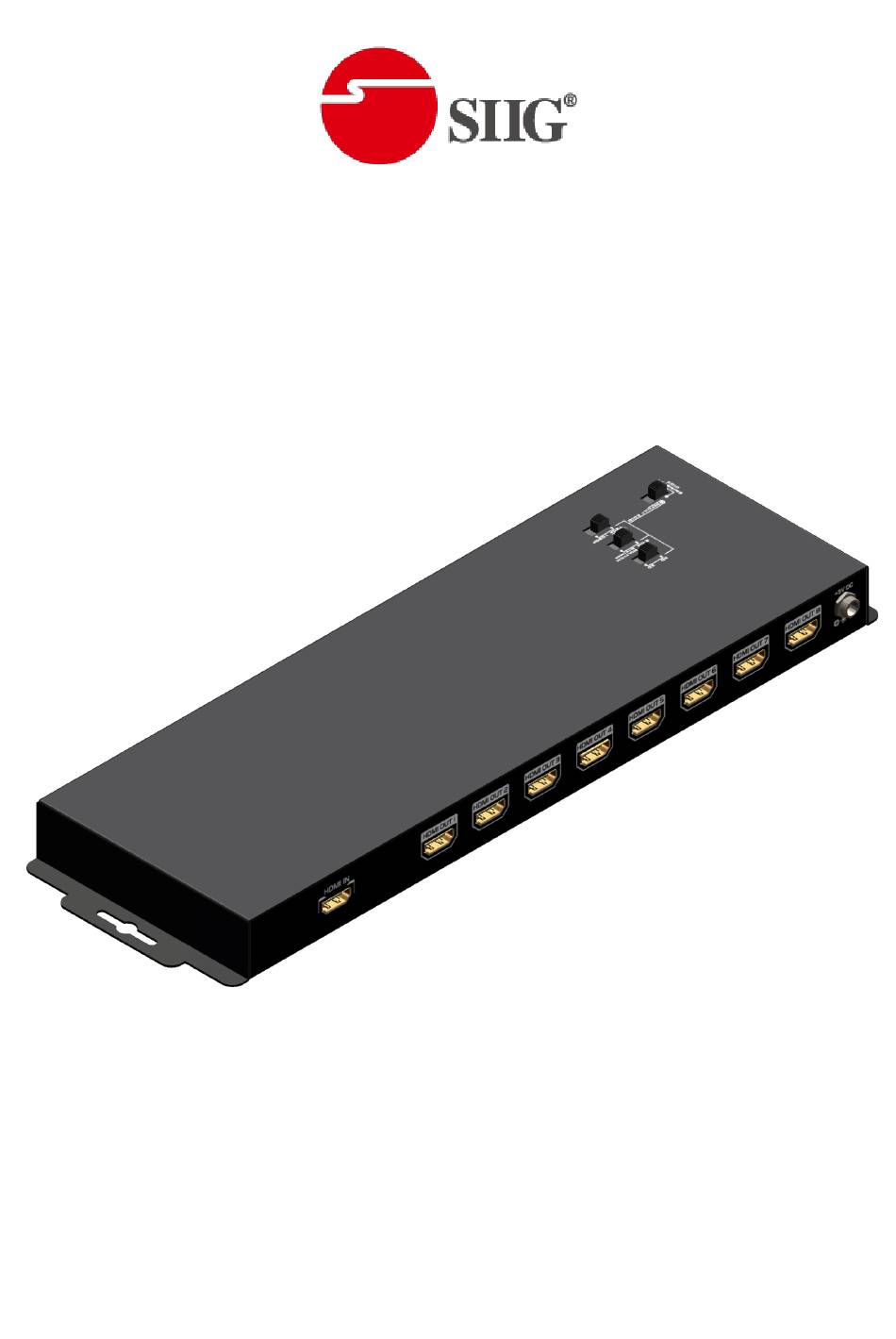

- Page 1 1x8 HDMI Splitter with EDID Manager P/N: AV-GM06H3-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM06H3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
● Support HDMI Deep Color & 3D ● HDCP compliant ● HDMI video distribution to up to 8 displays and cascade to another AV-GM06H3-S1 ● Regenerates the HDMI signal ● Supports default HDMI EDID and has the ability to learn the EDID of displays ●... -
Page 5: Specifications
SPECIFICATIONS Model Name AV-GM06H3-S1 Technical Role of usage 1x8 Distribution Amplifier (Splitter) HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support Up to WUXGA [1920x1200@60Hz] & UXGA [1600x1200@60Hz] DTS-HD Master Audio, Dolby TrueHD... -
Page 6: Panel Descriptions
temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Power: Power detection Indicator Signal: Signal detection Indicator Rear Panel HDMI INPUT: for cascading from HDMI source HDMI OUT 1~8: for connecting to display through HDMI cable or through Cat-5e cable with our HDMI over Cat-5e extender POWER +5V DC: connect to 5V 4A DC interlocking power adapter Top Panel... - Page 7 SW1: EDID Mode SW2: EDID — Full HD/HD Selection SW3: EDID — Audio Selection SW4: EDID — Output Format Selection...
-
Page 8: Switch Setting
1. Power up the AV-GM06H3-S1. Connect to HDMI OUT8 with the display you want the AV-GM06H3-S1 to learn its EDID. 2. The AV-GM06H3-S1 is only bound to learn the EDID from the display for the HDMI source device connected to HDMI OUT8. -
Page 9: Hardware Installation
1. Connect HDMI input to HDMI compliant sources (such as a Blu-ray Disc player) 2. Connect all HDMI outputs to the HDMI displays 3. Plug in 5V 4A DC power supply. 4. Power on the AV-GM06H3-S1 5. Power on the HDMI displays. 6. Power on the HDMI source(s). -
Page 10: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06H3-S1 features and specifications is subject to change without further notice.
