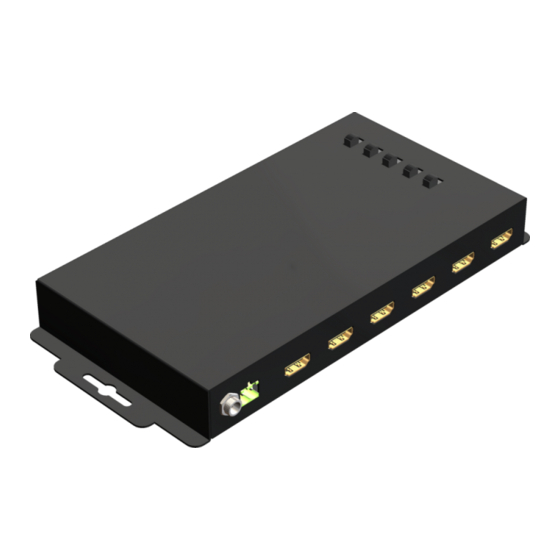

2x4 HDMI Splitter with EDID Manager
P/N: AV-GM06K3-S1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AV-GM06K3-S1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIIG AV-GM06K3-S1

  • Page 1 2x4 HDMI Splitter with EDID Manager P/N: AV-GM06K3-S1...
  • Page 2: Table Of Contents

    However, like all electronic equipments, the AV-GM06K3-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
  • Page 3: Introduction

    ● Support HDMI Deep Color & 3D ● HDCP compliant ● HDMI video distribution to up to 4 displays and cascade to another AV-GM06K3-S1 ● Acts as a 2x1 HDMI switch plus a 1x4 HDMI splitter ● Regenerates the HDMI signal ●...
  • Page 4: Specifications

    SPECIFICATIONS Model Name AV-GM06K3-S1 Technical Role of usage 2x4 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color & 3D HDCP compliance Video bandwidth Single-link 225MHz [6.75Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 Transmission over...
  • Page 5: Panel Descriptions

    Power consumption 10 Watts [max] Operation 0~40°C [32~104°F] temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Power/Signal LED: Red light means power indicator. Green light means signal detector. IN 1/IN 2 LED: Red light means HDMI source1. Green light means HDMI source2. Rear Panel +5V DC: Connect to 5V 4A DC interlocking power adapter Remote Control: Control signal...
  • Page 6 SW1: EDID SOURCE — Default EDID / learning EDID SW2: Full HD / HD Selection SW3: Bitstream / 2 CH SW4: 12 bit / 8 bit SW5: INPUT 1 / INPUT 2...
  • Page 7: Switch Setting

    1. Power up the AV-GM06K3-S1. Connect to HDMI OUT 4 with the display you want the AV-GM06K3-S1 to learn its EDID. 2. The AV-GM06K3-S1 is only bound to learn the EDID from the display for the HDMI source device connected to HDMI OUT 4.
  • Page 8: Hardware Installation

    1. Connect HDMI input to HDMI compliant sources (such as a Blu-ray Disc player) 2. Connect all HDMI outputs to the HDMI displays 3. Plug in 5V 4A DC power supply. 4. Power on the AV-GM06K3-S1 5. Power on the HDMI displays. 6. Power on the HDMI source(s).
  • Page 9: Warranty

    The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM06K3-S1 features and specifications is subject to change without further notice.
