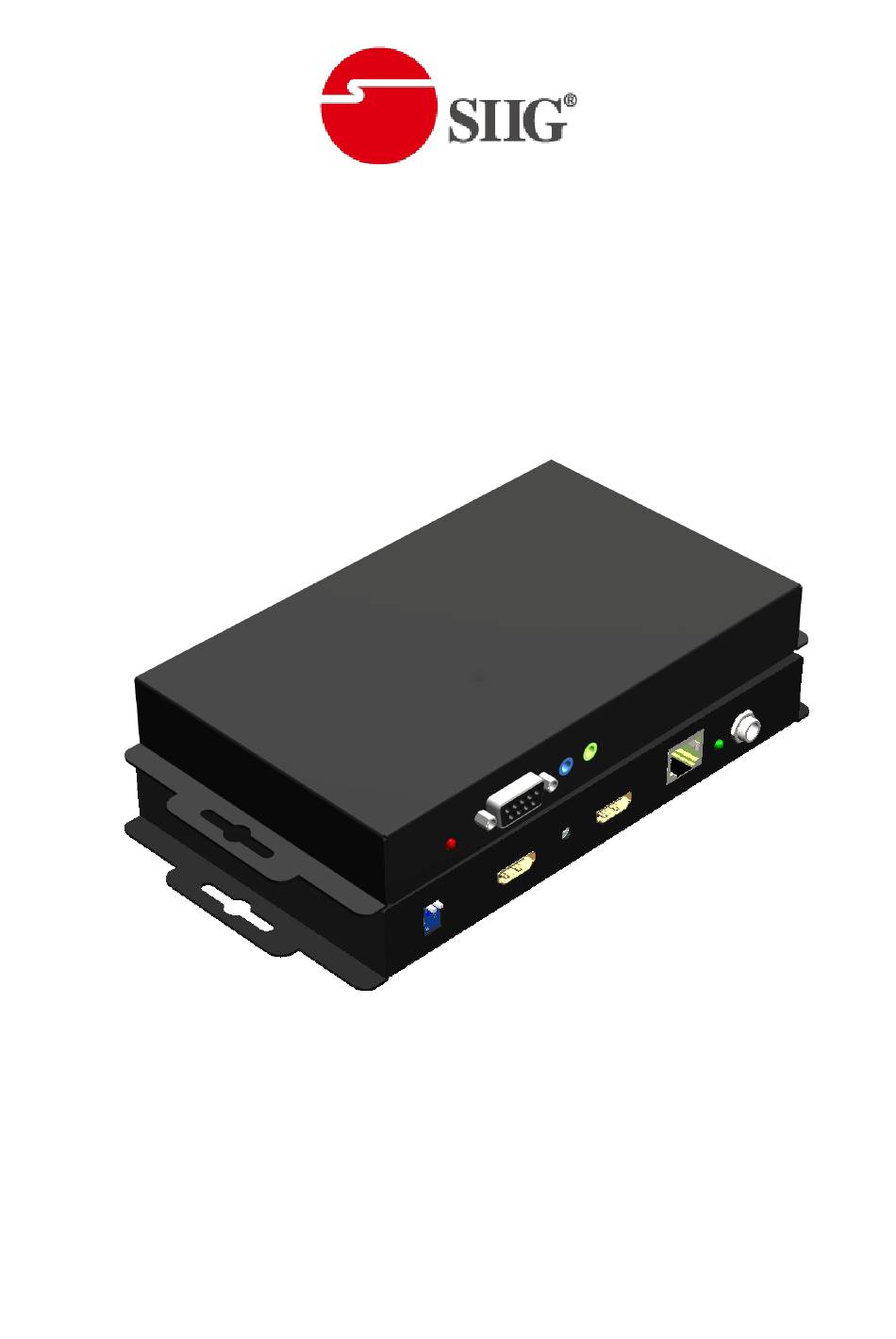

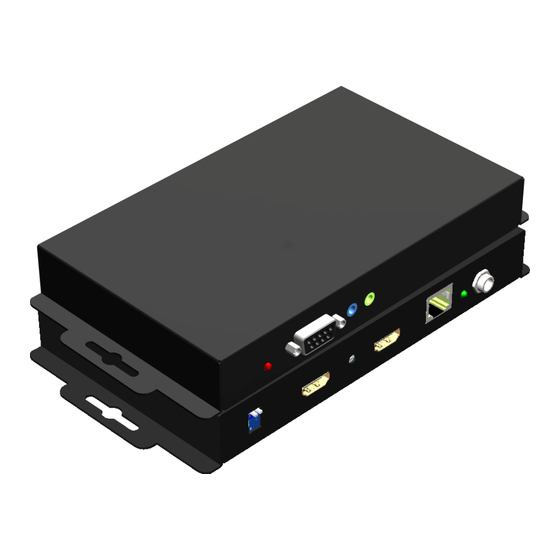

- Page 1 1x2 HDMI Splitter over Cat.X with HDBaseT-Lite, 4K2K, IR & RS-232 P/N: AV-GM0673-S1...
-
Page 2: Table Of Contents
However, like all electronic equipments, the AV-GM0673-S1 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
1 HDMI enable displays through cost effective Cat-5/5e/6 cables with HDMI over CAT.X receivers. For convenience, AV-GM0673-S1 is also equipped a local HDMI output for monitoring. With the built in equalization, the input HDMI cable can be extended up to 20 meters (66 feet) long under Full HD, and make the overall transmission distance superior than regular HDMI splitters or matrix switches in the market. -
Page 4: Specifications
SPECIFICATIONS Model Name AV-GM0673-S1 Technical Role of usage 1x2 Distribution Amplifier Transmitter [TX] HDMI compliance HDMI Deep Color, full 3D & 4K2K@30 HDCP compliance Video bandwidth Single-link 340MHz [10.2Gbps] Video support 480i / 480p / 720p / 1080i / 1080p60 up to 36-bit color Transmission over 1080p@60 60m (198ft) [CAT.X]... -
Page 5: Panel Descriptions
temperature Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] PANEL DESCRIPTIONS Front Panel Power LED: Lights on when power is on RS-232 IR blaster IR receiver Rear Panel Dip Switch: FW update HDMI IN: 8- rotation :EDID mode HDMI OUT &... - Page 6 EDID 1: 1080P 2CH audio EDID 2: 4K multi-channel audio EDID 3: 4K 2CH audio EDID 4: 1080P multi-channel audio EDID 5: 1080P 2CH audio EDID 6: 720P 2CH audio EDID 7: EDID Learning...
-
Page 7: Notice
NOTICE 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI or HDMI display EDID information. 2. All HDMI over Cat.X transmission distances are measured using Belden 1583A CAT5e 125MHz UTP cable and ASTRODESIGN Video Signal Generator VG-859C &... -
Page 8: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the AV-GM0673-S1 features and specifications is subject to change without further notice.
