Planning and Site Preparation

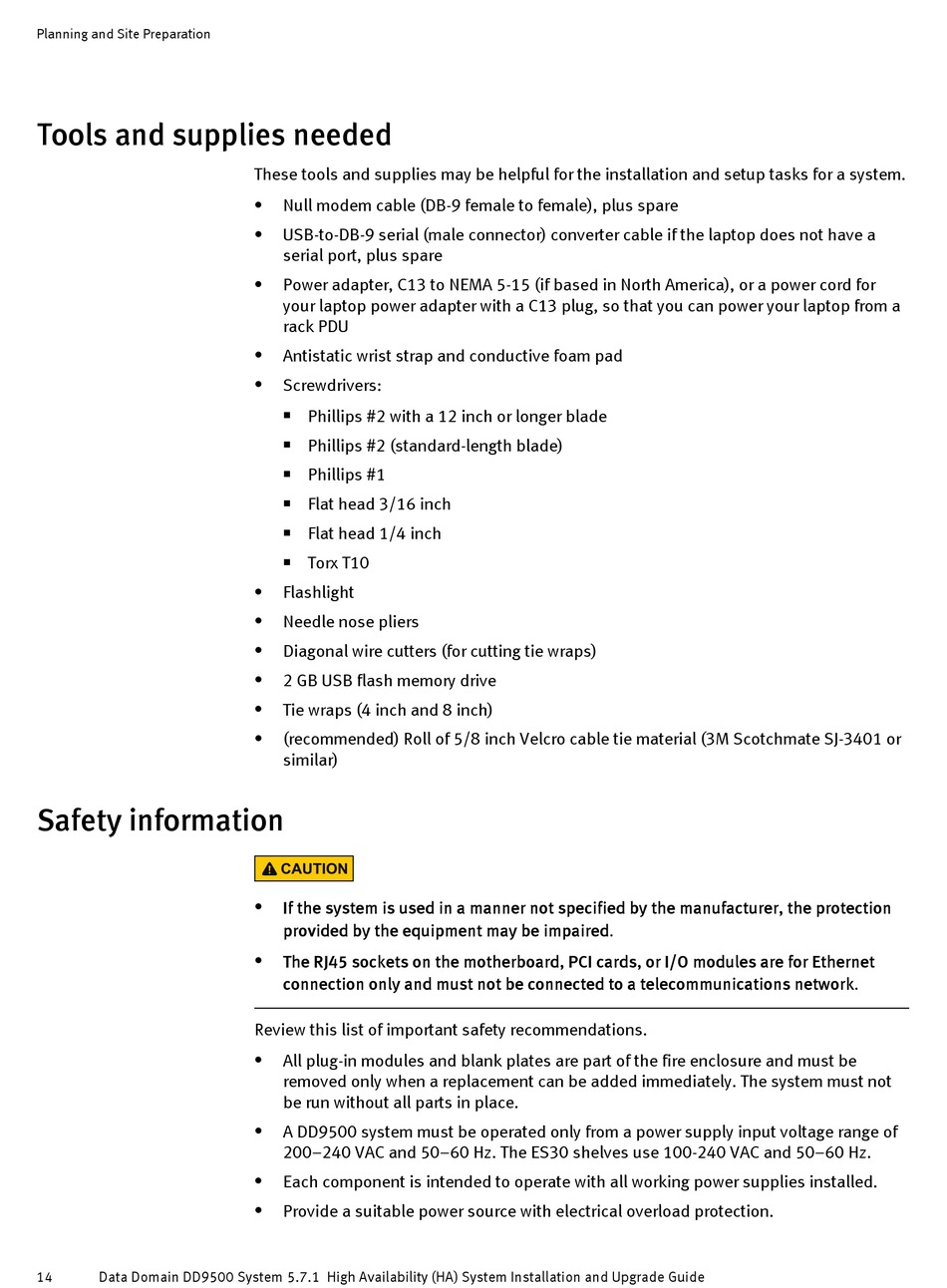

Tools and supplies needed

Safety information

14 Data Domain DD9500 System 5.7.1 High Availability (HA) System Installation and Upgrade Guide
These tools and supplies may be helpful for the installation and setup tasks for a system.
Null modem cable (DB-9 female to female), plus spare
l
USB-to-DB-9 serial (male connector) converter cable if the laptop does not have a
l
serial port, plus spare
Power adapter, C13 to NEMA 5-15 (if based in North America), or a power cord for
l
your laptop power adapter with a C13 plug, so that you can power your laptop from a
rack PDU
Antistatic wrist strap and conductive foam pad
l
Screwdrivers:
l
Phillips #2 with a 12 inch or longer blade
n
Phillips #2 (standard-length blade)
n
Phillips #1
n
Flat head 3/16 inch
n
Flat head 1/4 inch
n
Torx T10
n
Flashlight
l
Needle nose pliers
l
Diagonal wire cutters (for cutting tie wraps)
l
2 GB USB flash memory drive
l
Tie wraps (4 inch and 8 inch)
l
(recommended) Roll of 5/8 inch Velcro cable tie material (3M Scotchmate SJ-3401 or
l
similar)
CAUTION
If the system is used in a manner not specified by the manufacturer, the protection
l
provided by the equipment may be impaired.
The RJ45 sockets on the motherboard, PCI cards, or I/O modules are for Ethernet
l
connection only and must not be connected to a telecommunications network.
Review this list of important safety recommendations.
All plug-in modules and blank plates are part of the fire enclosure and must be
l
removed only when a replacement can be added immediately. The system must not
be run without all parts in place.
A DD9500 system must be operated only from a power supply input voltage range of
l
200–240 VAC and 50–60 Hz. The ES30 shelves use 100-240 VAC and 50–60 Hz.
Each component is intended to operate with all working power supplies installed.
l
Provide a suitable power source with electrical overload protection.
l
