Data Domain DD9500 System 5.7.1 High Availability (HA) System Installation and Upgrade Guide
Table 8 Cables for node 0 to ES30 shelf loop
HD-mini-SAS connector on controller, SFF-8088 connector keyed for host port on ES30
Cable model
EMC part number
X-SAS-HDMS1
X-SAS-HDMS2
038-003-810
X-SAS-HDMS3
038-003-811
X-SAS-HDMS5
038-003-813

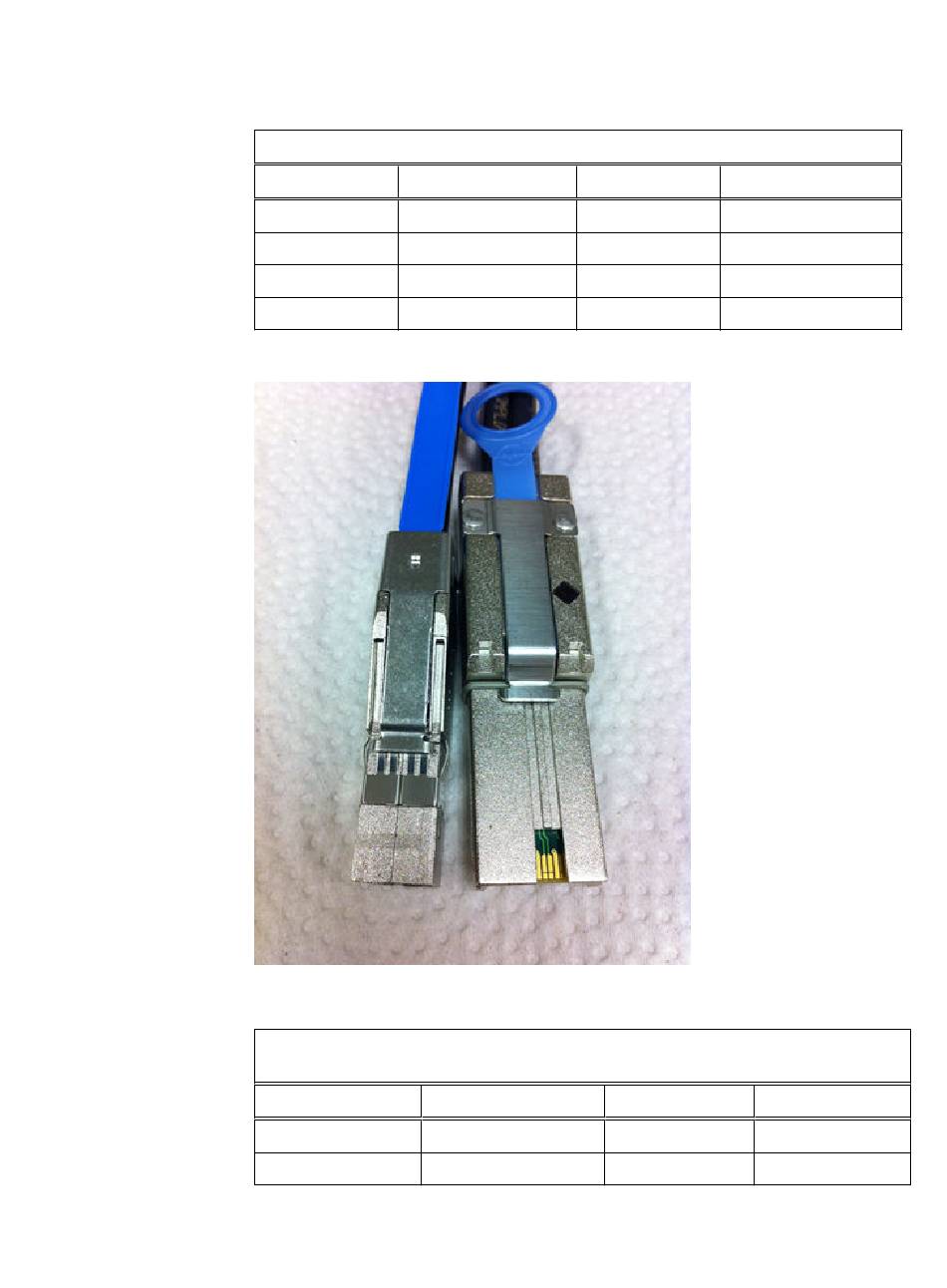

Figure 36 Node 1 SAS I/O module to ES30 expansion port connector
Table 9 Cables for node 1 to ES30 shelf loop
HD-mini-SAS connector on controller, SFF-8088 connector keyed for expansion port on
ES30
Cable model
EMC part number
X-HA-ES30-SAS-2
038-004-108
X-HA-ES30-SAS-5
038-004-111
Cable length
Vertical span (RU)
1 m (39 in)
9
2 m (79 in)
31
3 m (118 in)
53
5 m (196 in)
97
Cable length
Vertical span (RU)
2 m (79 in)
31
5 m (196 in)
97
