eBOX625-312-FL User's Manual

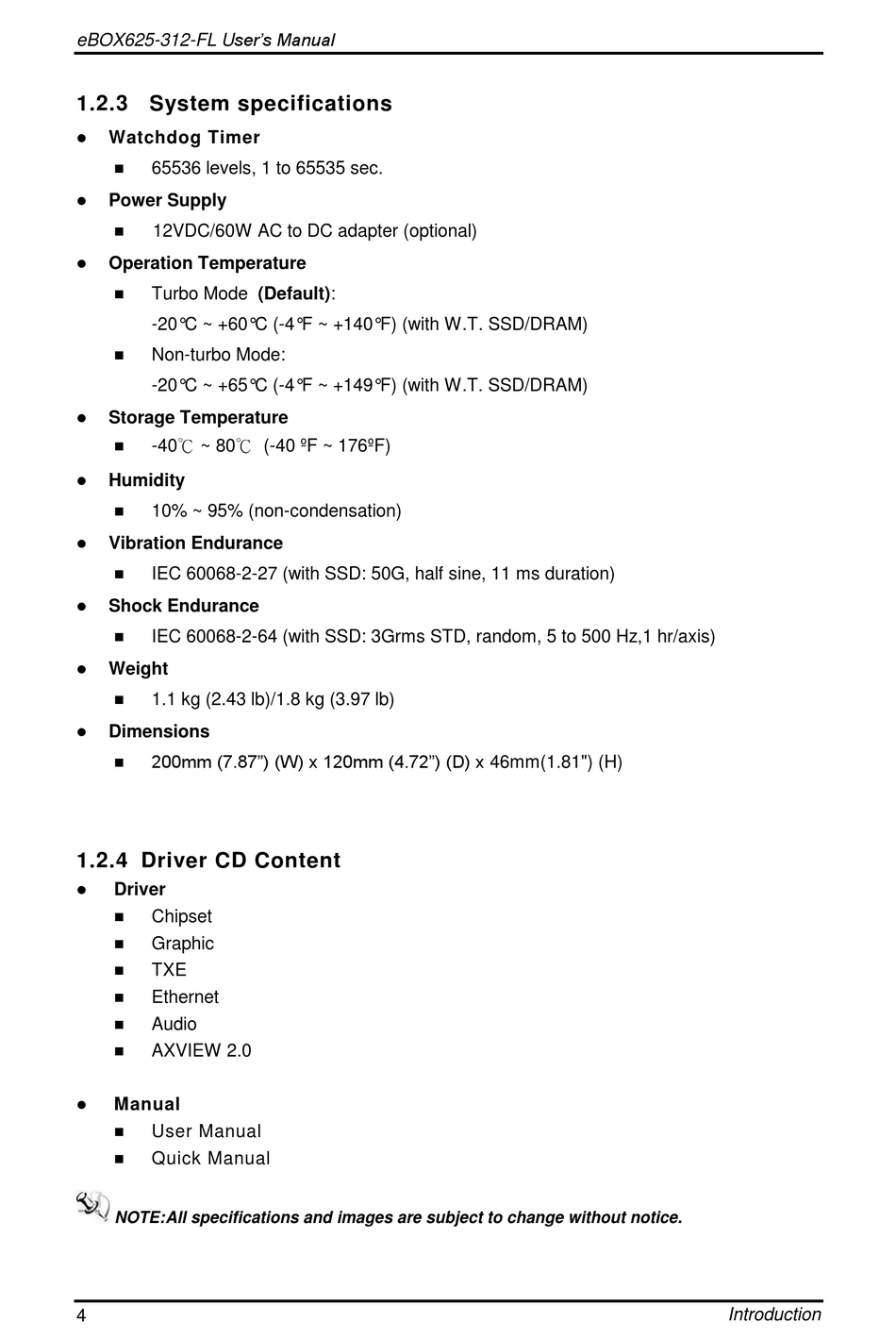

1.2.3 System specifications

 Watchdog Timer

65536 levels, 1 to 65535 sec.

Power Supply
 12VDC/60W AC to DC adapter (optional)
 Operation Temperature

Turbo Mode (Default):
-20°C ~ +60°C (-4°F ~ +140°F) (with W.T. SSD/DRAM)
 Non-turbo Mode:
-20°C ~ +65°C (-4°F ~ +149°F) (with W.T. SSD/DRAM)
 Storage Temperature
 -40℃ ~ 80℃ (-40 ºF ~ 176ºF)
 Humidity
 10% ~ 95% (non-condensation)
 Vibration Endurance

IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)

Shock Endurance
 IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz,1 hr/axis)
 Weight
 1.1 kg (2.43 lb)/1.8 kg (3.97 lb)
 Dimensions
200mm (7.87") (W) x 120mm (4.72") (D) x 46mm(1.81") (H)


1.2.4 Driver CD Content

 Driver
 Chipset
 Graphic
 TXE
 Ethernet
 Audio
 AXVIEW 2.0
 Manual
 User Manual
 Quick Manual
NOTE: All specifications and images are subject to change without notice.
4
Introduction
