R911299726 / 02 | Rexroth IndraControl VCP 05
Display and Operating Components
6.2.4
Function Keys
6.2.4.1 Slide-in Identification Strips for the Function Keys
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Electric Drives and Controls | Bosch Rexroth AG
The function of the function keys can be freely assigned (with soft key
functions). The function keys can used either as direct keys for menu
control of for triggering a function in the control system.
The slide-in identification strip can be replaced without having to disas-
semble the operator terminal. Inserting the strip on the front side of the
front plate does not influence the specified seal of the operator termi-
nal. A set of identification strips is supplied with the operating device.
For the labeling use:
Single pieces, prototypes
Small series
Large series

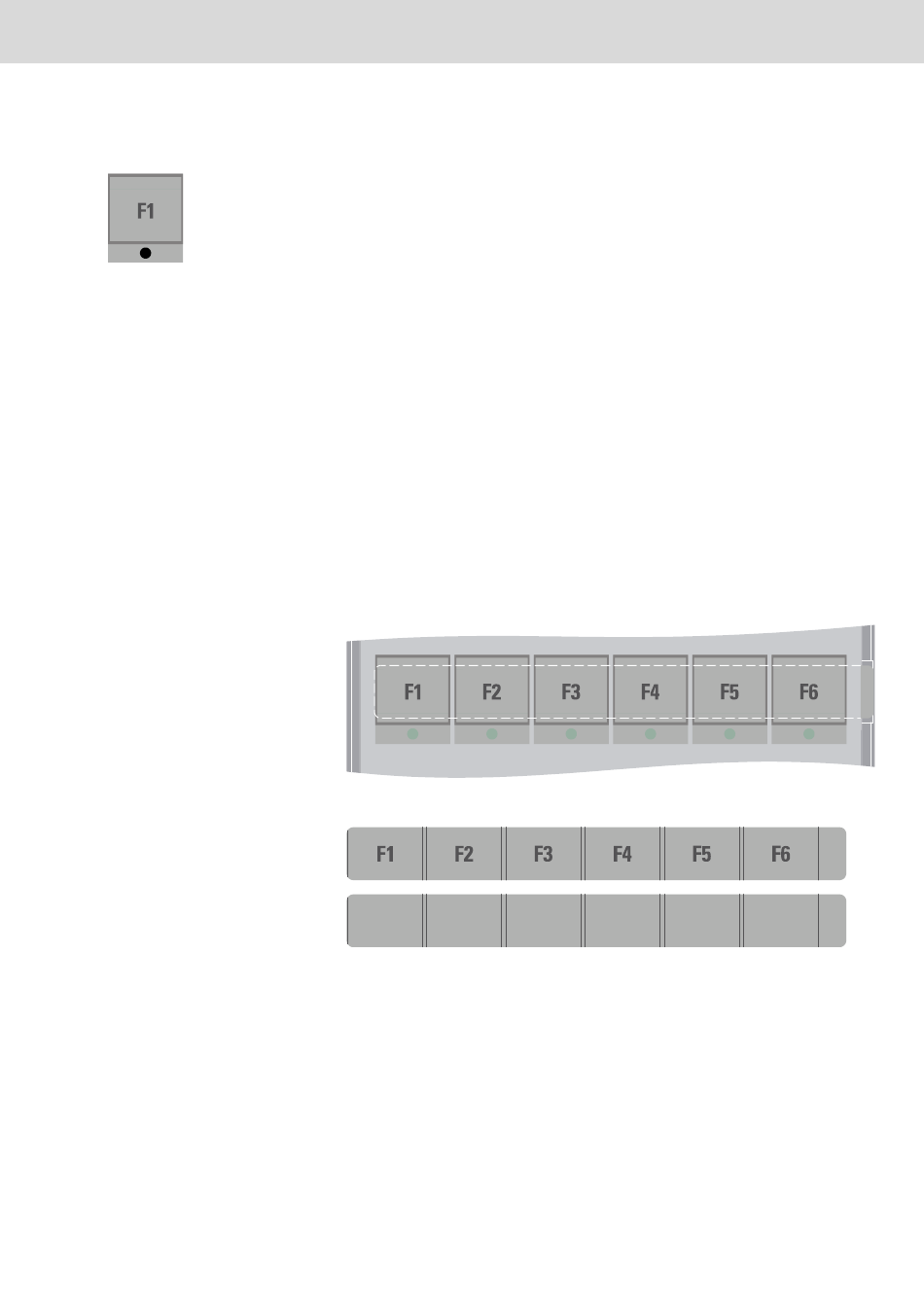

Fig. 6-3: Position of the identification strip
Fig. 6-4: Identification strip, labelled and blank
Label with a water-resistant pen
Copying foil with laser print
Customer-specific labeled identification
strips
6-7
