Infinite Peripherals LINEA PRO 6 Quick Start Manual

LINEA PRO
Charging Station
(5-Unit)
QUICK START GUIDE
ASSEMBLY
1. Place the Linea Pro 6 Charging Station
on a sturdy, clean and dry surface in an
open, well-ventilated area away from
direct sunlight.
2. Insert the included AC adapter plug into
the DC Jack Port on the charger.
Connect the AC power adapter to a
power outlet.
3. Insert the unit into a charging bay,
ensuring the battery contacts are
aligned with the bay's contacts. The LED
lights up with the charging status.
ABOUT YOUR LINEA PRO 6
6
®
CHARGE STATUS
The Linea Pro 6 Charging Station (5-Unit) uses
a tricolor LED to indicate the charge status.
Check the status LED on each slot to verify
normal charging status. When the battery is
fully charged, the LED indicator is green.
Status Indicator LEDS
Green
Orange
Flashing Red
Solid Red
No LED
Notes:
When the LED is solid red and the operating
temperature decreases to at or below 55°C/131°F, the
charging bay begins working again.
When you do not see the LED, over current
protection may be enabled, if the charging pins are
shorted, or there is no load.

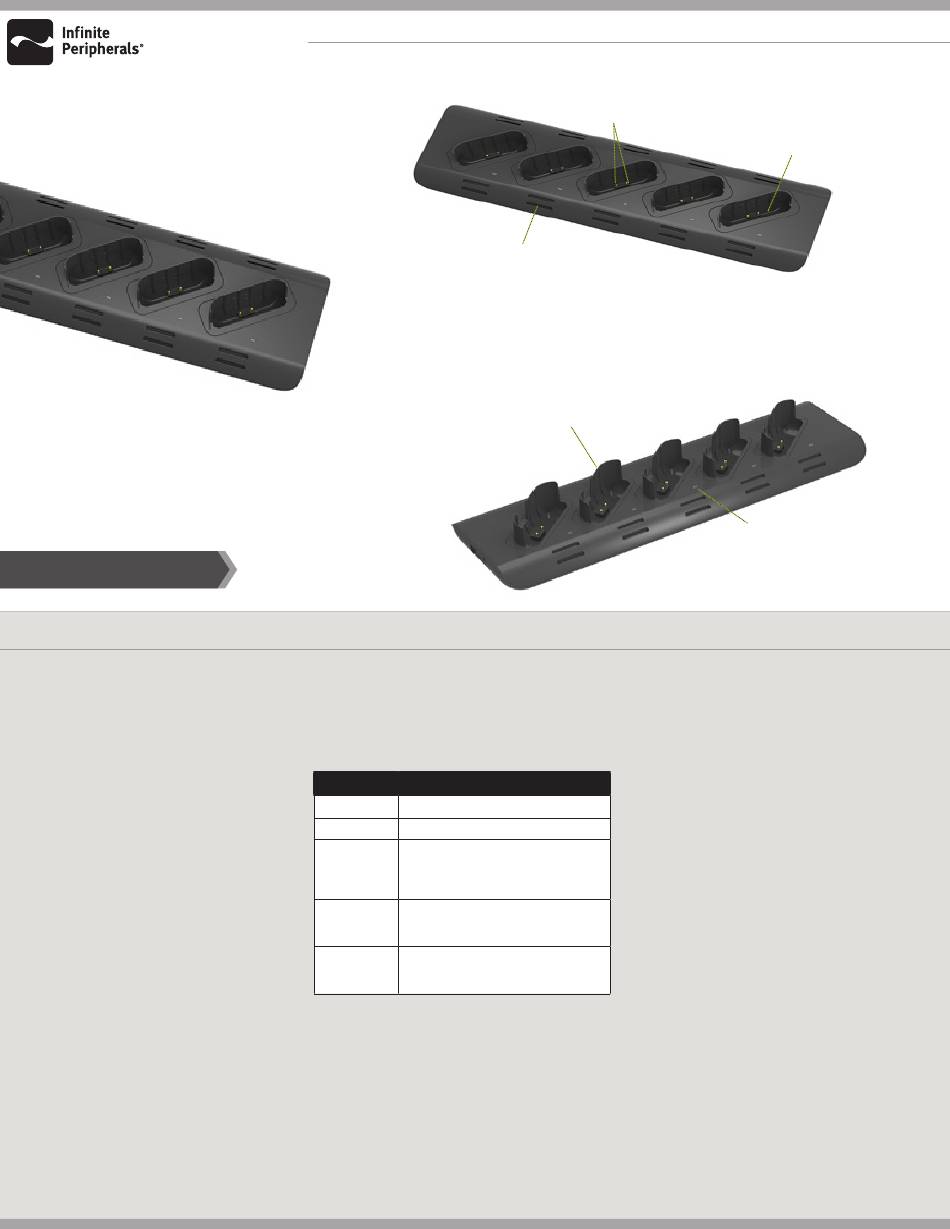

Linea Pro 6 Charging Station (5-Unit) with Standard Case
Charging Contacts
Cooling Vent
Linea Pro 6 Charging Station (5-Unit) with Rugged Case
Attachment
Inserted device is fully charged.
Inserted device is charging.
Over-current protection is enabled.
Charging bay is at or above
maximum current fault (1.9A) and
has stopped working.
Over-current protection is enabled
due to overheat fault (over
60°C/140°F).
Indicates there is no device in
charging bay or there is no power
supply attached the charger.
CHARGING STATION (5-Unit)
Charging Bay
LED Indicator
TROUBLESHOOTING
The LED does not come on when a unit is
inserted.
• Ensure that the power supply is fully
plugged into the outlet and plugged
into the DC port.
It takes an excessive amount of time to fully
charge the battery.
• Verify ambient temperature meets the
operating temperature requirements.
Operating: 0°C – 40°C (32°F – 104°F)
