Linea Pro®
Pistol Grip Charging
Station (1-Unit)
for Linea Pro® 5 and Linea
Pro® 6 Pistol Grips
QUICK START GUIDE
ASSEMBLY
1. Place the charging station on a sturdy,
clean and dry surface in an open, well-
ventilated area away from direct sunlight.
2. Plug in the included DC barrel plug to the
DC port on the front of the charger. Then
connect the AC power adapter to a power
outlet.
3. Insert the Pistol Grip into the charging bay
so that the cradle supports the front of the
Linea Pro sled, as shown in figures above.
When the pistol grip is seated correctly,
the LED on the front of the charger turns
green indicating power is being supplied
to the device.
Note: The Linea Pro Pistol Grip Charging Station
is designed specifically to charge the Linea Pro
5 and 6 and iOS device. However, the iOS device
must be properly installed in the Linea Pro for
charging to occur.
ABOUT YOUR LINEA PRO PISTOL GRIP
Front View
Back View
CHARGE STATUS
The Linea Pro Pistol Grip Charging Station (1-
Unit) uses the following LEDs to indicate the
charge status:
STATUS INDICATOR LEDS
Green Power is being supplied to the
charger.
No LED Indicates there is no device in
charging bay or there is no power
supply attached to the charger.
For device charging status, please refer to the
user documentation provided with your Linea
Pro Pistol Grip for Linea Pro 5 and Linea Pro 6
devices.

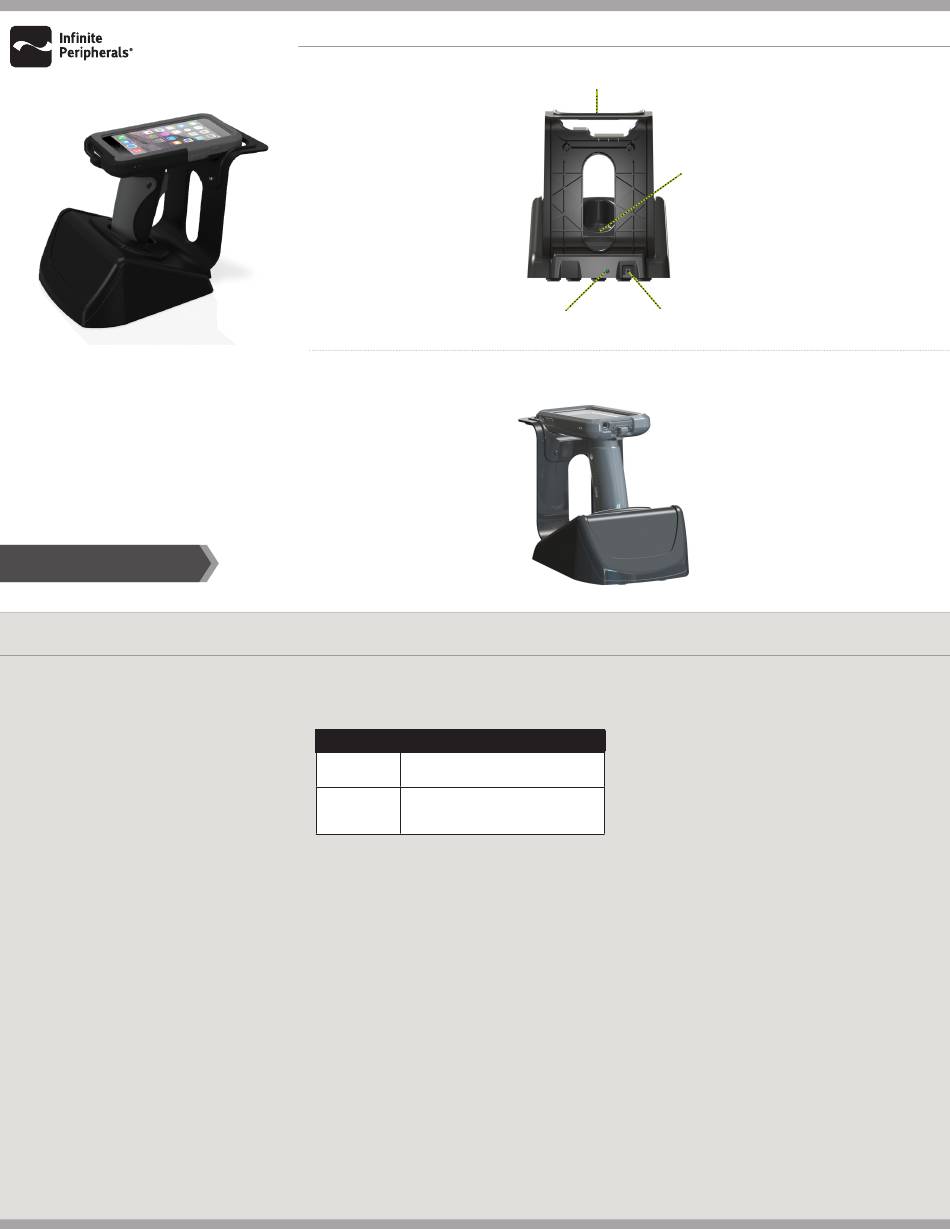

CHARGING STATION (1-Unit)
Cradle
LED Indicator DC Jack Port

TROUBLESHOOTING

The LED does not come on when the Linea
Pro Pistol Grip is inserted into the charging
station, or the Linea Pro iOS device is not
charging.
•
•
It takes an excessive amount of time to fully
charge the battery.
•
Charging Bay
Ensure the DC barrel plug is securely
inserted into the DC port on the front of
the charging station and the AC power
adapter is plugged into a working power
outlet.
Ensure the unit is seated properly in the
charging bay.
Verify ambient temperature meets the
operating temperature requirements.
Operating: 0°C to +30°C (+32°F to
+86°F)
