3. Product description

The ClickFit mounting system consists of mounting brackets, mounting rails and the necessary mounting materials to mount
the solar panels in portrait placement on the roof. The ClickFit mounting system for steel plate can be used for all steel
roofs, among others the common steel corrugated roof and trapezium roof plates. (The plate steel thickness needs to be at
least 0.4 mm.)
Roof attachment
The mounting brackets are fixed to the steel plate with special screws. Because the mounting brackets are not attached to
the roof rafters or purlins, the solar panels can be placed anywhere. Height differences in the roof can easily be solved with
a special click-up cube or heightening cube (optional). Self-sticking EPDM sealing tape is used for waterproofing.
Attaching the mounting rail
The mounting rail is attached to the mounting bracket with a snap connection. No further materials or tools are needed for
this.
Attaching the panel
The handy mounting help contributes to a fast and safe assembly and has a double function as an anti-slip security for the
solar panels. The solar panels are secured with universal modular clamping plates, end clamps, and mounting screws. The
mounting screws are screwed directly into the mounting rails, in which a special screw thread has been made.

4. Components overview

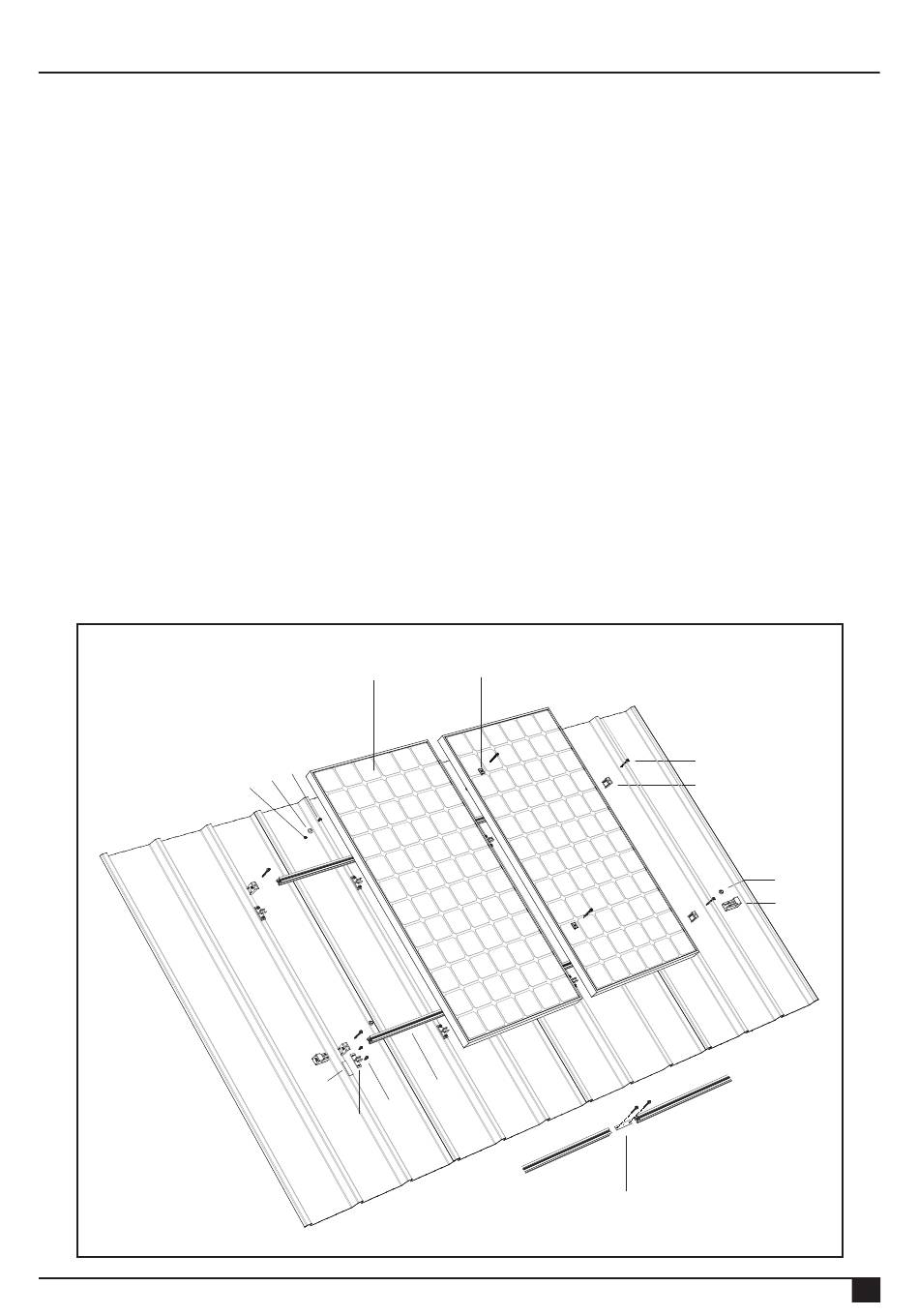

4.1 Exploded-view

Rev. 20.01.14
1
2
4 3
9
7
8
ASSEMBLY MANUAL FOR STEEL ROOFS
12
5
11
10
14
13
6
03
