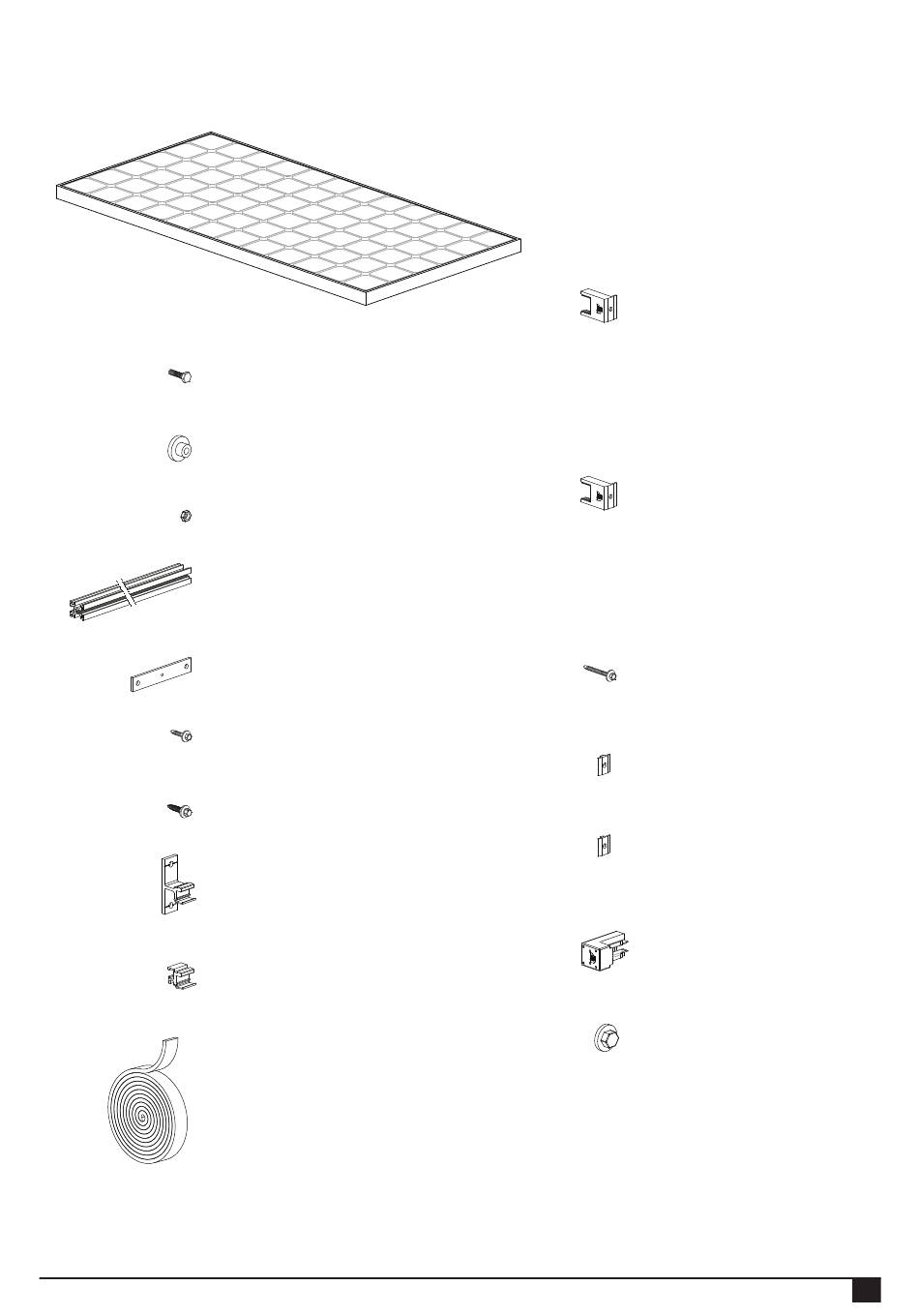

4.2 Component list
Rev. 20.01.14
1. Solar panel
2. Stainless steel hexagonal
bolt M6 x 20
Article no. 100-0620
3. Nylon Suspension bush
Article no. 100-9001
4. Stainless steel hexagonal nut M6
Article no. 100-0600
5. Mounting rail
Article no. 100-1001
6. Connection strip pro
Article no. 100-3040
6A. Mounting screw 6.5 x 19
Article no. 100-6519
7. Self-tapping plate screw 6.0 x 25
Article no. 100-3010
8. Mounting bracket
Article no. 100-2060
8A. Heightening cube 15 mm (optional)
Article no. 100-3065
9. Self-sticking EPDM sealing tape 30 mm
Article no. 100-0005
ASSEMBLY MANUAL FOR STEEL ROOFS
10. End clamp
End clamp CFA Article no.
100-3003
End clamp CFB
Article no. 100-3004
For type see appendix Ch. 7
10A. End clamp Black (optional)
End clamp CFA Black
Article no. 100-3950
End clamp CFB Black
Article no. 100-3951
For type see appendix
Ch. 7
11. Mounting screw 6.5 x
Article no. 100-65
For type see appendix Ch. 7
12. Modular clamp plate
Article no.: 100-3020
12A. Modular clamp plate Black
(Optional)
Article no. 100-3952
13. End cap Black (optional)
Article no. 100-3030
14. Colour cap Black (optional)
Article no. 100-6500
04
