Examples description

4 Examples description
4.1

USB-PD DRP (TCPM/TCPC architecture)

This project implements a USB-PD DRP application, suitable for the ON Semiconductor
FUSB307 evaluation board, based on the use of USB-PD libraries delivered in the X-CUBE-
USB-PD Expansion Package, and highlighting the TCPM/TCPC architecture.
4.1.1

Example setup

The USB-PD TCPM/TCPC designed for FUSB307 evaluation board application can be
found under Projects\STM32F072RB-Nucleo\Applications\USB_PD\EVAL_FUSB307_DRP
This application provides an example of USB Power Delivery implementation based on
TCPM/TCPC architecture. The application and USB-PD core stack are located on the
TCPM side and are running on the STM32F0xx Nucleo device on the ON Semiconductor
FUSB307 board. The application is driving the TCPC controller through the I
12/18

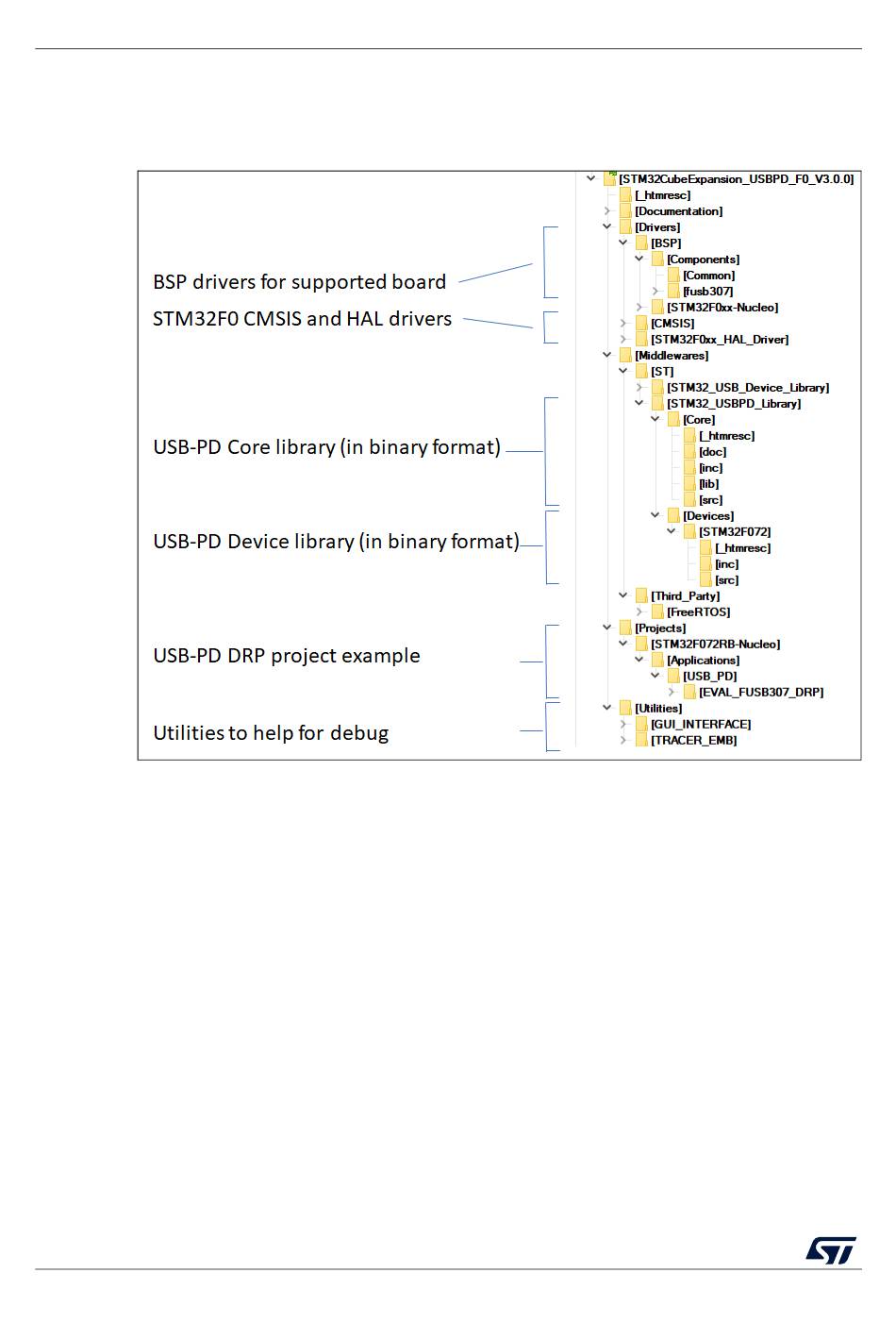

Figure 4. Project structure

UM2063 Rev 5
UM2063
2
C link.
