User Manual — Linea Pro Rugged for iPod touch

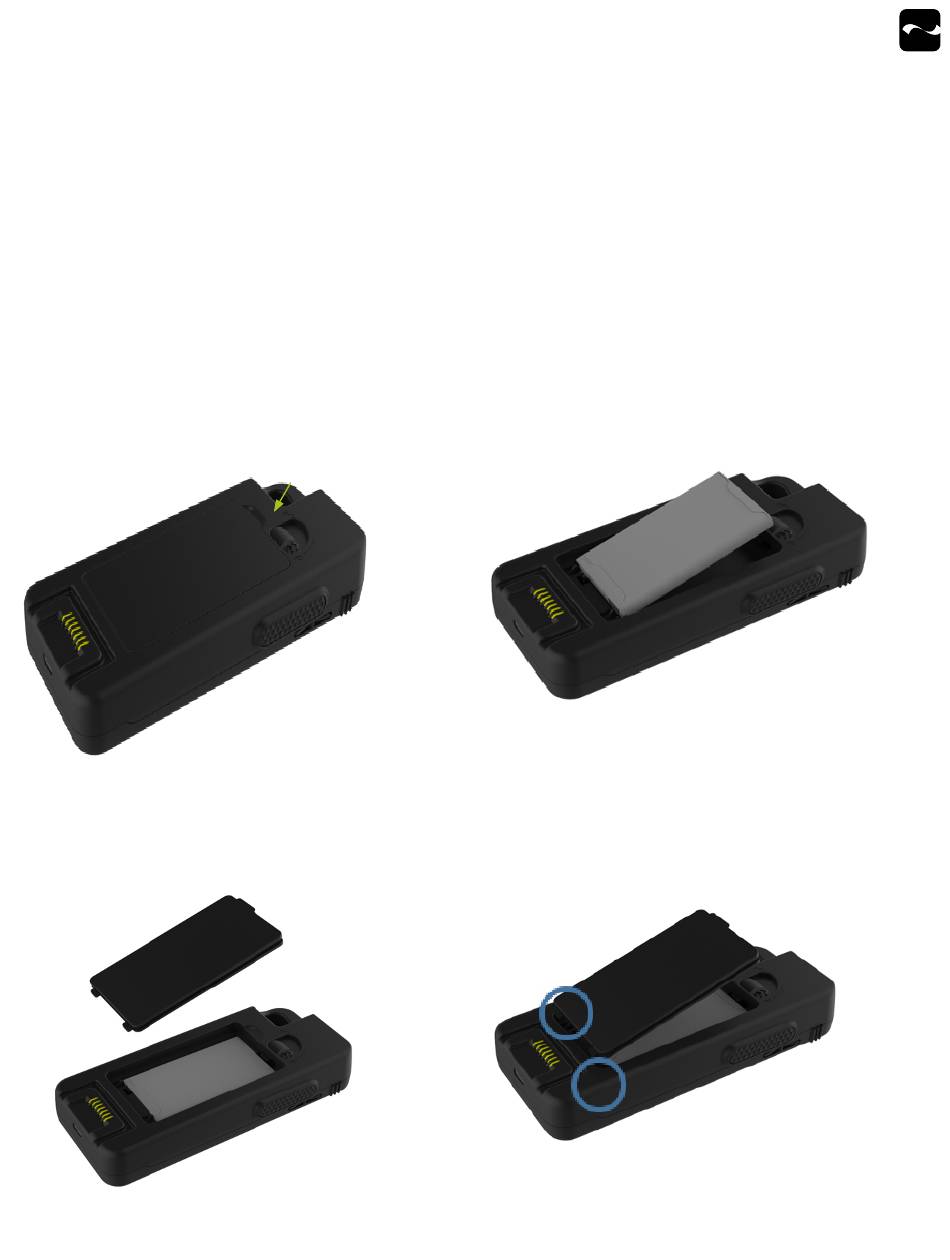

Replacing the Battery
The Linea Pro Rugged includes one 2400Ah battery, which you can replaced, when needed.
Note
Ensure you use only a new battery with SKU PL-15-110.
1.
On the back of the unit, slide the battery latch into the unlocked position, and then pull the battery cover upwards.
2.
Remove the old battery by pulling it up gently.
3.
Insert one side of the new battery near the contact pads, and then press it downwards slowly.
4.
Before closing the battery cover, press the battery latch downwards.
5.
Press the battery cover in place, and then slide the battery latch into the lock position.
13
