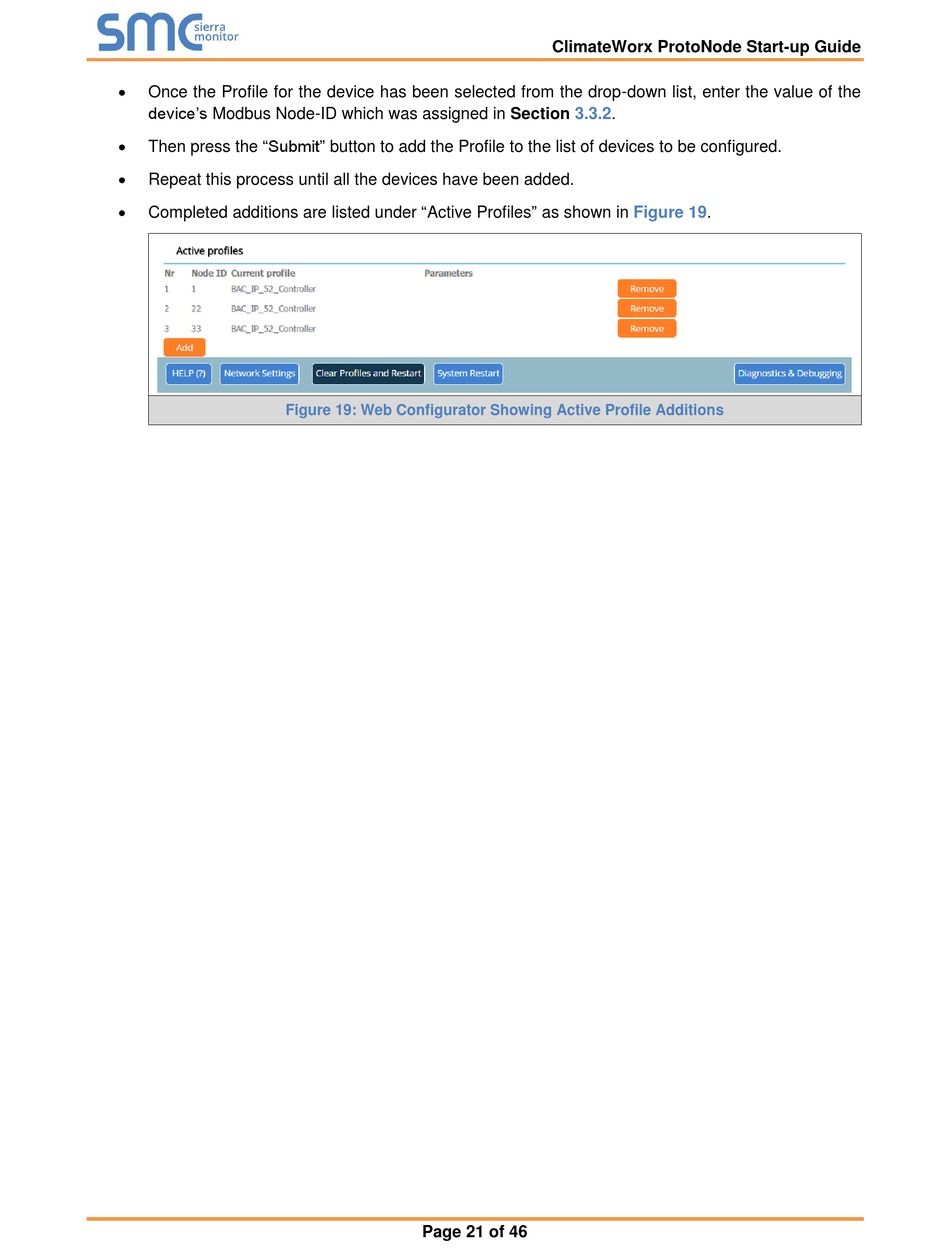

Figure 19: Web Configurator Showing Active Profile Additions - SMC Networks ClimateWorx FieldServer ProtoNode FPC-N34 Startup Manual


Once the Profile for the device has been selected from the drop-down list, enter the value of the
device's Modbus Node-ID which was assigned in Section 3.3.2.

Then press the "Submit" button to add the Profile to the list of devices to be configured.

Repeat this process until all the devices have been added.

Completed additions are listed under "Active Profiles" as shown in

Figure 19: Web Configurator Showing Active Profile Additions

ClimateWorx ProtoNode Start-up Guide
Page 21 of 46
Figure 19.
