BMS Network Settings: MAC Address, Device Instance and Baud Rate

3.5.1 BACnet MS/TP (FPC-N34): Setting the MAC Address for BMS Network


Only 1 MAC address is set for ProtoNode regardless of how many devices are connected to
ProtoNode.

Set the BACnet MS/TP MAC address of the ProtoNode to a value between 1 to 127 (Master MAC
address); this is so that the BMS Front End can find ProtoNode via BACnet auto discovery.
NOTE: Never set a BACnet MS/TP MAC Address of the ProtoNode to a value from 128 to 255.
Addresses from 128 to 255 are Slave Addresses and can not be discovered by BMS Front Ends
that support Auto-Discovery of BACnet MS/TP devices.

Set "A" bank DIP switches A0 – A7 to assign a MAC Address to the ProtoNode for BACnet
MS/TP.

Refer to Appendix C.1
NOTE: When using Metasys N2 and Modbus TCP/IP, the A Bank of DIP switches are disabled and
not used. They should be set to OFF.
NOTE: When setting DIP Switches, ensure that power to the board is OFF.
for the complete range of MAC Addresses and DIP switch settings.
Off
A0
A1
A2
A3
A4
A5
A6
A7

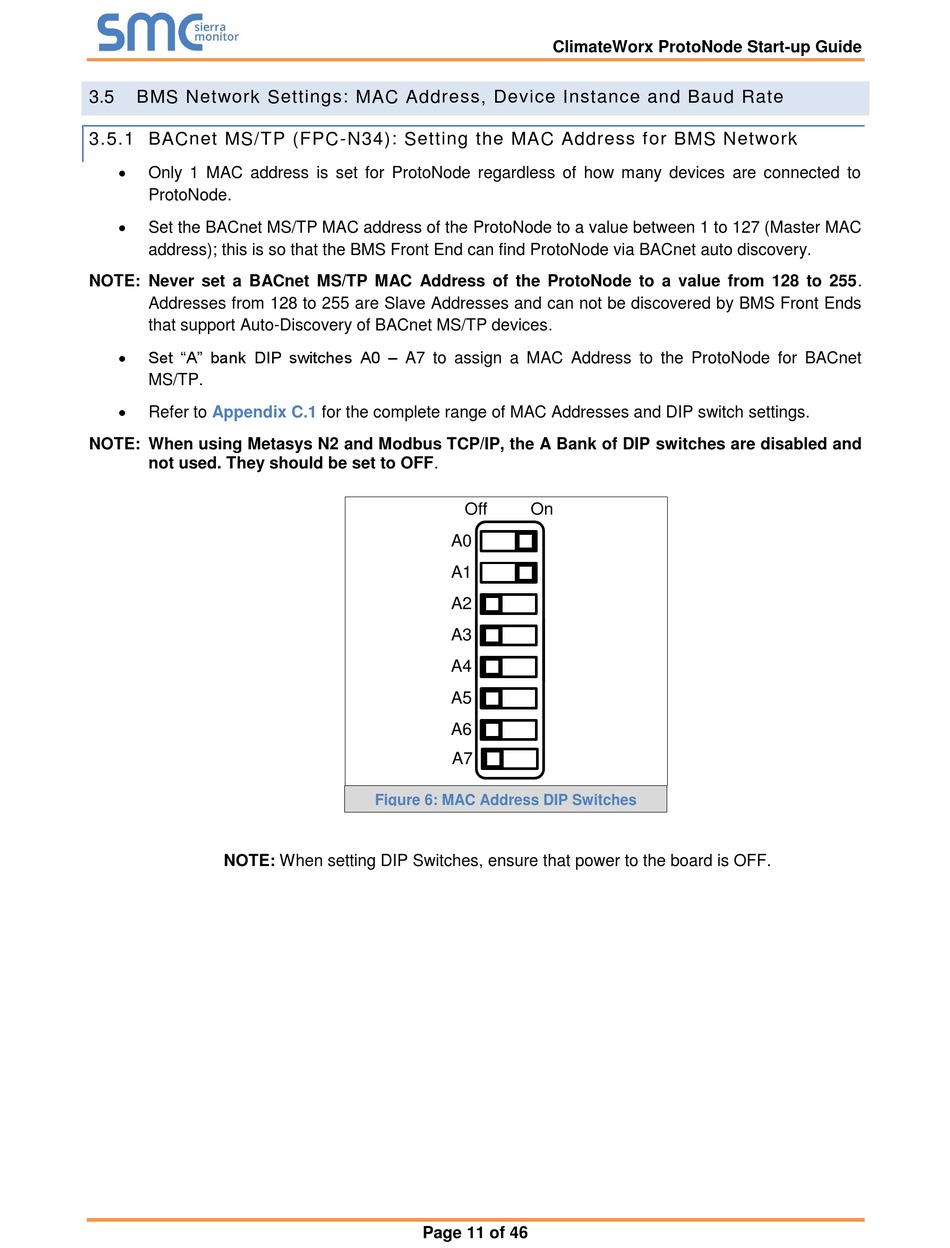

Figure 6: MAC Address DIP Switches
