BUS INTERFACE KBR-EBUS

Upon delivery, the address corresponds to the last four digits of the
serial number.
The address can only be changed via software (KBR eBus)

TARIFF CONTROL

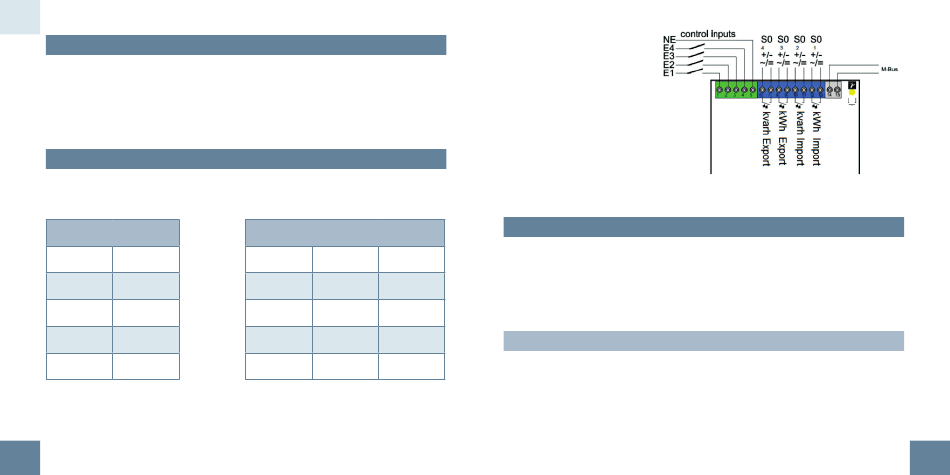

Tariff changeover works with a 230V signal. Neutral cond. on clamp 5
(NE), outer cond. switched on clamp 3 (E3), respectively 4 (E4).
Double-tariff
E4
T1 0
T2 1
14
(only multicount D5-2-xxx-MID
Four-tariff (optional)
E4
T1 0
T2 1
T3 0
T4 1
0 = no voltage
1 = voltage

CURRENT TRANSFORMER RATIO

Current transformer ratio can be adjusted from
E3
5/5 to 20'000/5A and 1/1 to 4'000/1A
0
Left (blue) key
0
Right (red) key
1 Current transformer /5A
AABCC : 5A
1
AA adjustable in steps of 1
B adjustable in steps of 1
CC adjustable in steps of 5
= Change of digit / number
= Go to next digit / number
