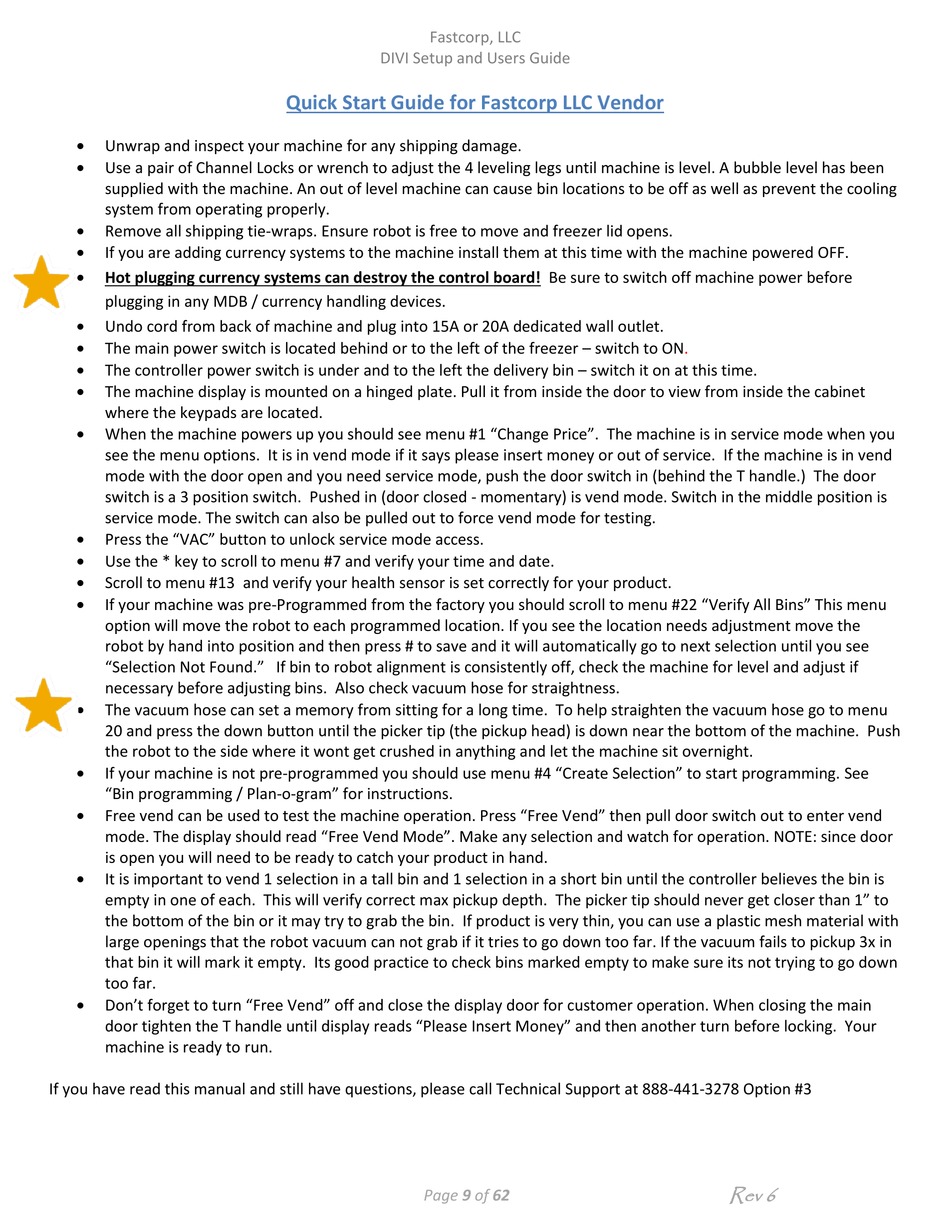

Fastcorp DIVI Setup And User Manual page 9


Unwrap and inspect your machine for any shipping damage.

Use a pair of Channel Locks or wrench to adjust the 4 leveling legs until machine is level. A bubble level has been
supplied with the machine. An out of level machine can cause bin locations to be off as well as prevent the cooling
system from operating properly.

Remove all shipping tie-wraps. Ensure robot is free to move and freezer lid opens.

If you are adding currency systems to the machine install them at this time with the machine powered OFF.

Hot plugging currency systems can destroy the control board! Be sure to switch off machine power before
plugging in any MDB / currency handling devices.

Undo cord from back of machine and plug into 15A or 20A dedicated wall outlet.

The main power switch is located behind or to the left of the freezer – switch to

The controller power switch is under and to the left the delivery bin – switch it on at this time.

The machine display is mounted on a hinged plate. Pull it from inside the door to view from inside the cabinet
where the keypads are located.

When the machine powers up you should see menu #1 "Change Price". The machine is in service mode when you
see the menu options. It is in vend mode if it says please insert money or out of service. If the machine is in vend
mode with the door open and you need service mode, push the door switch in (behind the T handle.) The door
switch is a 3 position switch. Pushed in (door closed - momentary) is vend mode. Switch in the middle position is
service mode. The switch can also be pulled out to force vend mode for testing.

Press the "VAC" button to unlock service mode access.

Use the * key to scroll to menu #7 and verify your time and date.

Scroll to menu #13 and verify your health sensor is set correctly for your product.

If your machine was pre-Programmed from the factory you should scroll to menu #22 "Verify All Bins" This menu
option will move the robot to each programmed location. If you see the location needs adjustment move the
robot by hand into position and then press # to save and it will automatically go to next selection until you see
"Selection Not Found." If bin to robot alignment is consistently off, check the machine for level and adjust if
necessary before adjusting bins. Also check vacuum hose for straightness.

The vacuum hose can set a memory from sitting for a long time. To help straighten the vacuum hose go to menu
20 and press the down button until the picker tip (the pickup head) is down near the bottom of the machine. Push
the robot to the side where it wont get crushed in anything and let the machine sit overnight.

If your machine is not pre-programmed you should use menu #4 "Create Selection" to start programming. See
"Bin programming / Plan-o-gram" for instructions.

Free vend can be used to test the machine operation. Press "Free Vend" then pull door switch out to enter vend
mode. The display should read "Free Vend Mode". Make any selection and watch for operation. NOTE: since door
is open you will need to be ready to catch your product in hand.

It is important to vend 1 selection in a tall bin and 1 selection in a short bin until the controller believes the bin is
empty in one of each. This will verify correct max pickup depth. The picker tip should never get closer than 1" to
the bottom of the bin or it may try to grab the bin. If product is very thin, you can use a plastic mesh material with
large openings that the robot vacuum can not grab if it tries to go down too far. If the vacuum fails to pickup 3x in
that bin it will mark it empty. Its good practice to check bins marked empty to make sure its not trying to go down
too far.

Don't forget to turn "Free Vend" off and close the display door for customer operation. When closing the main
door tighten the T handle until display reads "Please Insert Money" and then another turn before locking. Your
machine is ready to run.
If you have read this manual and still have questions, please call Technical Support at 888-441-3278 Option #3
Fastcorp, LLC
DIVI Setup and Users Guide
Quick Start Guide for Fastcorp LLC Vendor
Page 9 of 62
ON.
