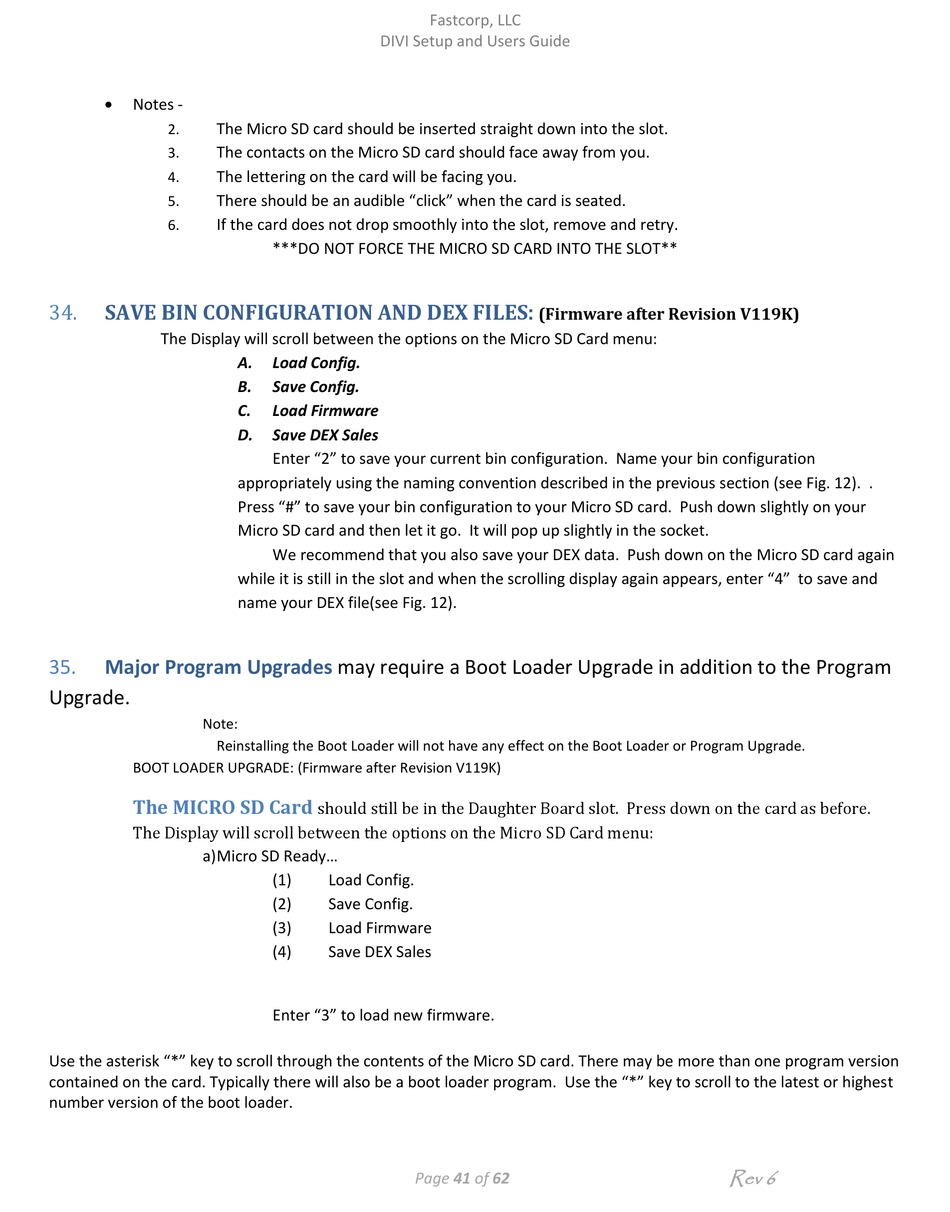

Fastcorp DIVI Setup And User Manual page 41


Notes -
The Micro SD card should be inserted straight down into the slot.
2.
The contacts on the Micro SD card should face away from you.
3.
The lettering on the card will be facing you.
4.
There should be an audible "click" when the card is seated.
5.
If the card does not drop smoothly into the slot, remove and retry.
6.
34. SAVE BIN CONFIGURATION AND DEX FILES:
The Display will scroll between the options on the Micro SD Card menu:
35. Major Program Upgrades
Upgrade.
Note:
Reinstalling the Boot Loader will not have any effect on the Boot Loader or Program Upgrade.
BOOT LOADER UPGRADE: (Firmware after Revision V119K)
The MICRO SD Card
The Display will scroll between the options on the Micro SD Card menu:
a) Micro SD Ready...
Use the asterisk "*" key to scroll through the contents of the Micro SD card. There may be more than one program version
contained on the card. Typically there will also be a boot loader program. Use the "*" key to scroll to the latest or highest
number version of the boot loader.
DIVI Setup and Users Guide
***DO NOT FORCE THE MICRO SD CARD INTO THE SLOT**
A. Load Config.
B. Save Config.
C. Load Firmware
D. Save DEX Sales
Enter "2" to save your current bin configuration. Name your bin configuration
appropriately using the naming convention described in the previous section (see Fig. 12). .
Press "#" to save your bin configuration to your Micro SD card. Push down slightly on your
Micro SD card and then let it go. It will pop up slightly in the socket.
We recommend that you also save your DEX data. Push down on the Micro SD card again
while it is still in the slot and when the scrolling display again appears, enter "4" to save and
name your DEX file(see Fig. 12).
may require a Boot Loader Upgrade in addition to the Program
should still be in the Daughter Board slot. Press down on the card as before.
(1) Load Config.
(2) Save Config.
(3) Load Firmware
(4) Save DEX Sales
Enter "3" to load new firmware.
