1-16 DSC62

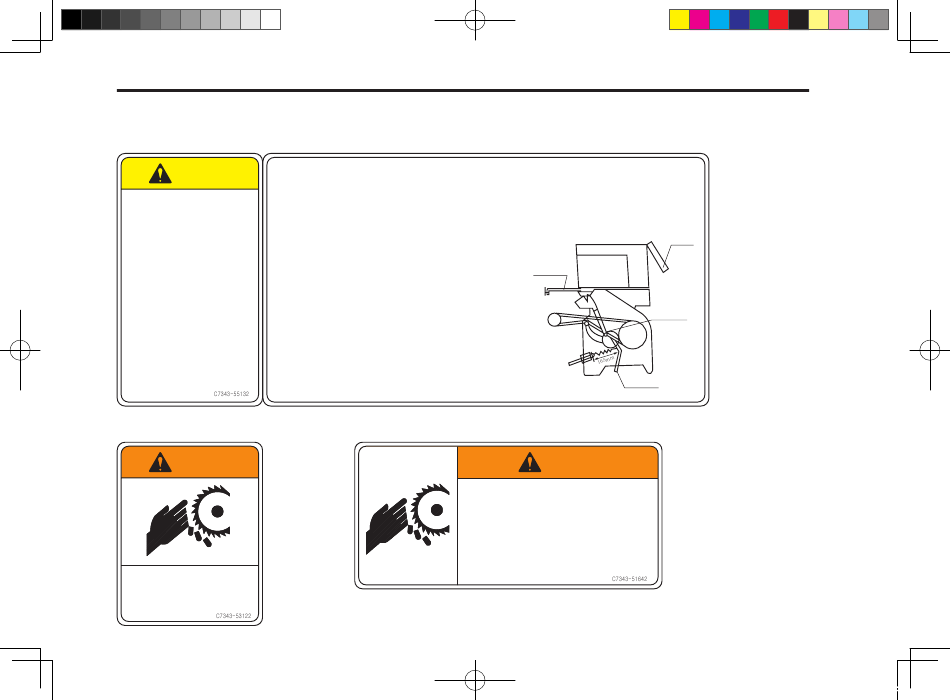

11.Label C7343-55132
CAUTION
♦
for stalk shredder main-
tenance and cleaning, the
engine must be shut off.
♦ please do not start the ma-
chine when the stalk shred-
der is under running state.
♦
Any contact with the cutter
running inside may cause
injury, so never put your
hand inside from the straw
inlet.
♦
follow the correct direction
for changing the cutting
blade.
12.Label C7343-53122
WARNING
1. there is cutter rotating at high speed
inside this cover, extremely danger-
ous! never put your hand inside.
2. the engine must be shut off before
clearing up the straw on the cutting
shaft.
DSC62-영문판-1장.indd 16
To open/close the stalk shredder
to open the stalk shredder
■
1. remove the side cover.
2. Open the upper cover and the side cover at the ear of
crop.
3. pull down the lever and remove the belt.
4. Pull over the fixing lever and make the stalk shredder to
open outward, slowly rotate.
5. After the stalk shredder is open, secure it with prop.
to close the stalk shredder
■
1. follow the reverse sequence of opening when closing
the stalk shredder.
2. Correctly secure the securing device.
3. Do not install the belt to a wrong direction.
to open the cutting blade
■
1. please follow the operation manual regulation and the
precautions.
(Make sure to install the grinding face of the cutting blade
toward the direction of the head of crops)
2. please use Daedong 170 cutting blade (57781-5261-2)
13.Label C7343-51642
note:1. Do not open/close it at
sloping field.
2. pay attention to the
cutting blade.
3. Open the side cover
first.
Stopper
Operating lever
WARNING
No man standing behind shredder
1. It is strictly forbidden to approach the straw
discharge inlet.
2. there is sharp cutter inside this cover. It is
extremely dangerous when it is running! never
put your hand inside.
3. When the alarm sounds, the engine must be
shut off before checking.
4. the engine must be shut off before mainte-
nance, adjustment or cleaning.
5. the cover must be covered after maintenance,
adjustment or cleaning is completed.
upper Cover
Securing lever
