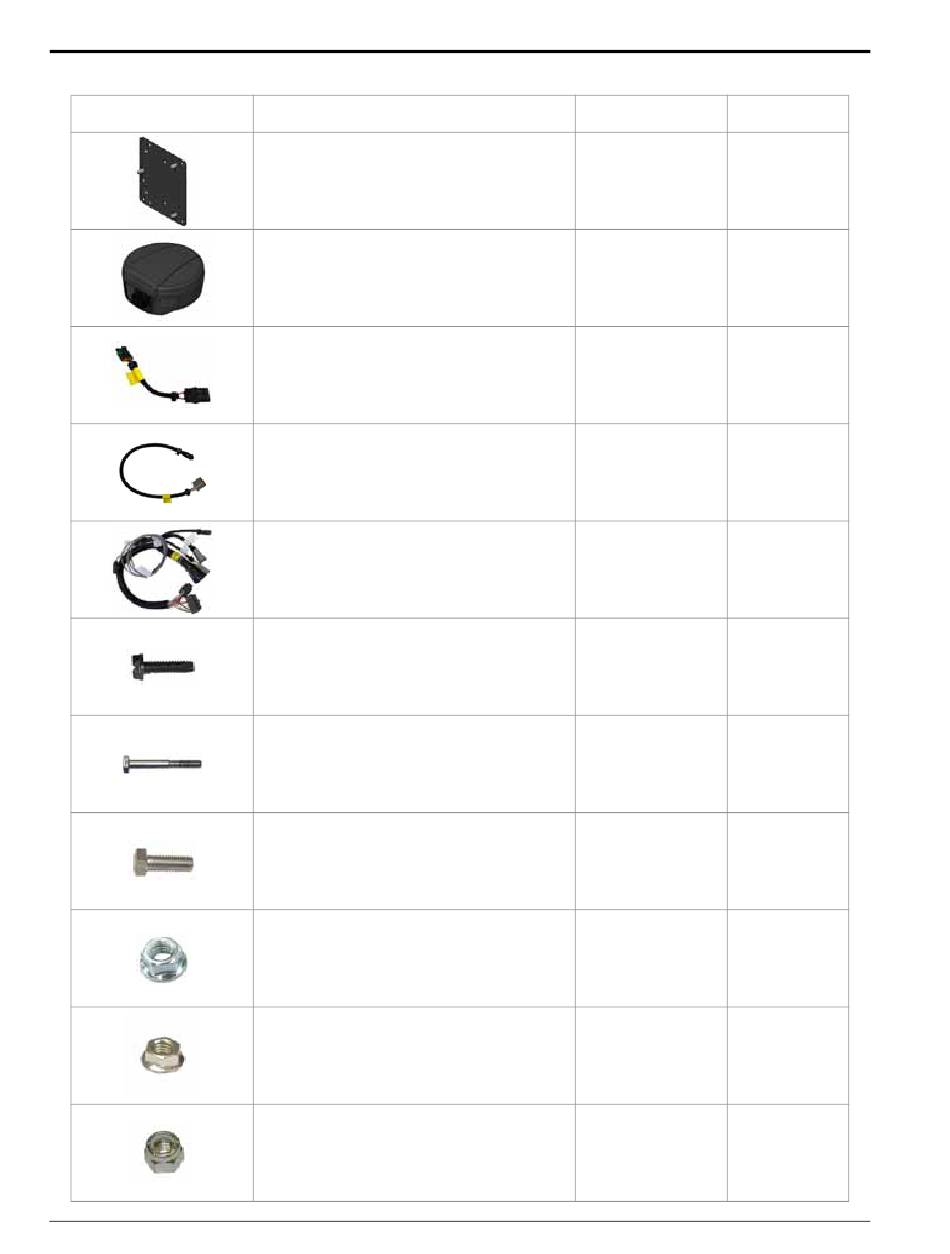

TABLE 2. SmarTrax Kit (P/N 117-5032-042)
8 Case IH Patriot 4440, Model Year 2017 & Newer - Steering Ready SmarTrax™ Installation Manual
Item Description
Bracket - Node Mounting
Receiver - 600S GPS
Cable - 6" Adapter Sense
Cable - 600S GPS Receiver to Case Cab
Connection
Cable - Node Harness
Screw - #10 x 3/4" Slotted Head Self-
Tapping
Bolt - 1/4"-20 x 1-1/4" Hex
Bolt - 5/16"-18 x 7/8" Hex
Nut - 3/8" Zinc Flanged Lock
Nut - 5/16"-18 x 7/8" Hex
Nut - 1/4"-20 Nylon Insert Lock
Part Number Qty.
107-0172-084
063-2000-001
115-0172-218
115-0172-285
115-4001-247
311-0001-321
311-0050-106
311-0052-104
312-1001-164
312-1001-169
312-4000-057
1
1
1
1
1
1
2
3
3
3
2
