Raven SmarTrax Supplement Installation Manual page 7

1. Remove the fitting from the LS PV port. Install the 7/16" SAE O-ring
to 9/16" ORFS fitting into the port.

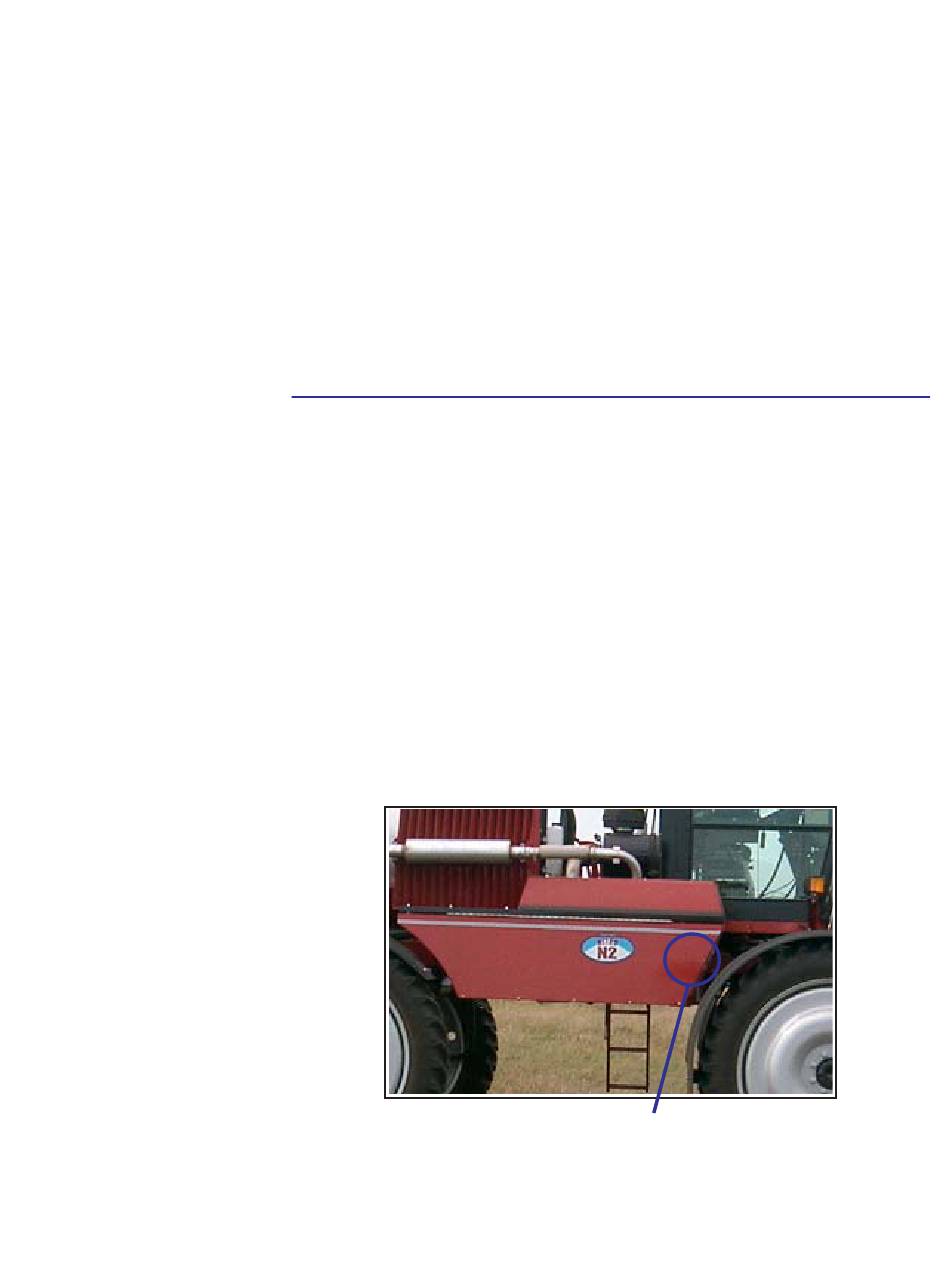

2. The valve mounts between the engine and the cab on the front engine
cross member.
3. Mount the bracket with the supplied 4 bolts and 2 plates to clamp
around the cross member.
4. Mount the valve to the bracket.
5. Attach the pressure switch to the PS port on SmarTrax valve.
6. Refer to the Universal Kit manual for additional instructions on bracket
assembly and valve mounting.
C
M
OUTING THE
Valve Location
Manual # 016-0190-069
