Mounting the
Steering
Position
Sensor (SPS)
S P
TEERING OSITION

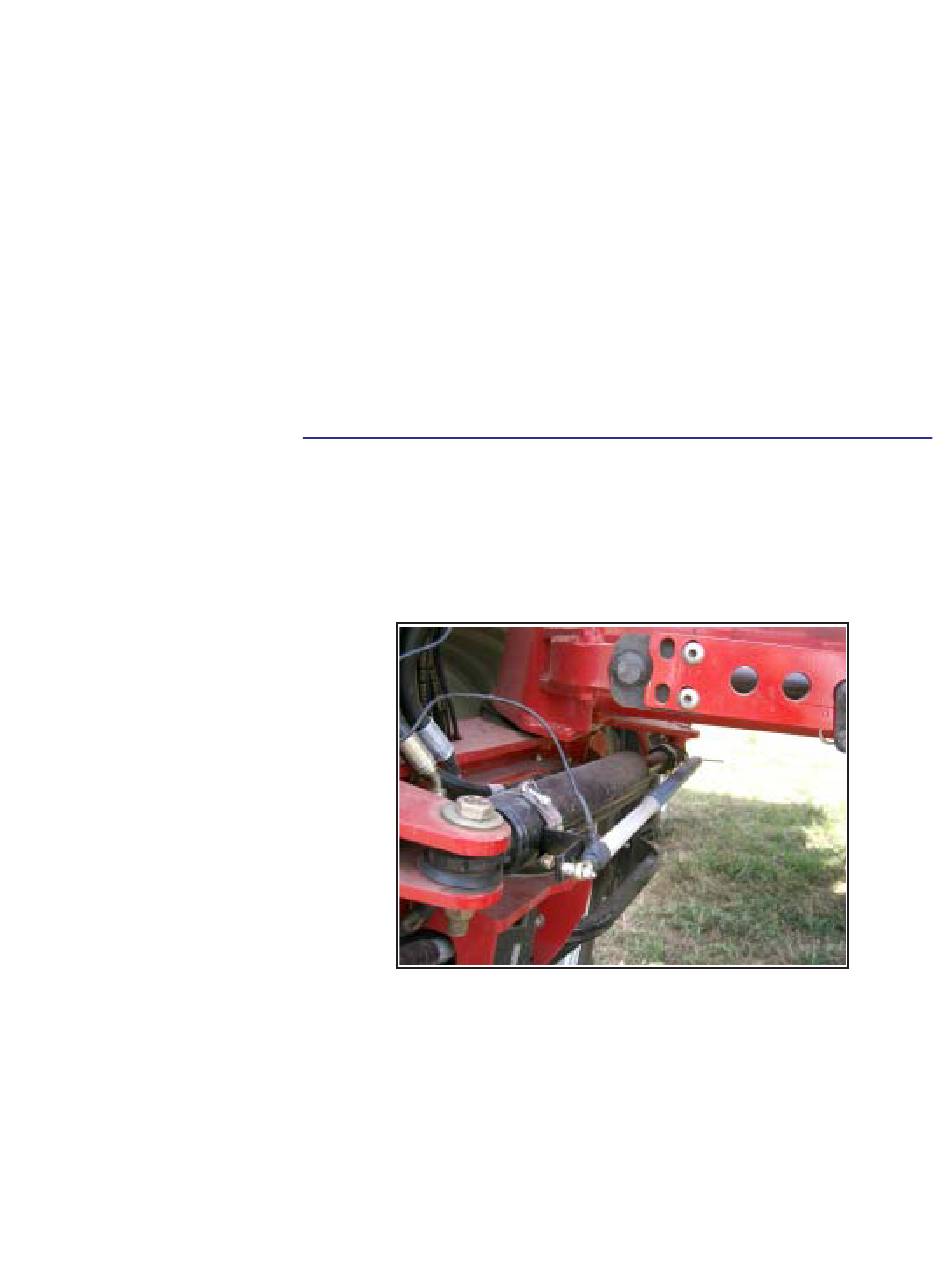

1. Mount the SPS to the steering cylinder on the right side of the machine.
2. Be sure, upon startup, to turn wheels slowly,. Do not over extend or
over compress the sensor.
3. Refer to instructions included with the SPS kit for more information.
S W
ENSOR & IRING
