Summary of Contents for ClearSpan Jubilee

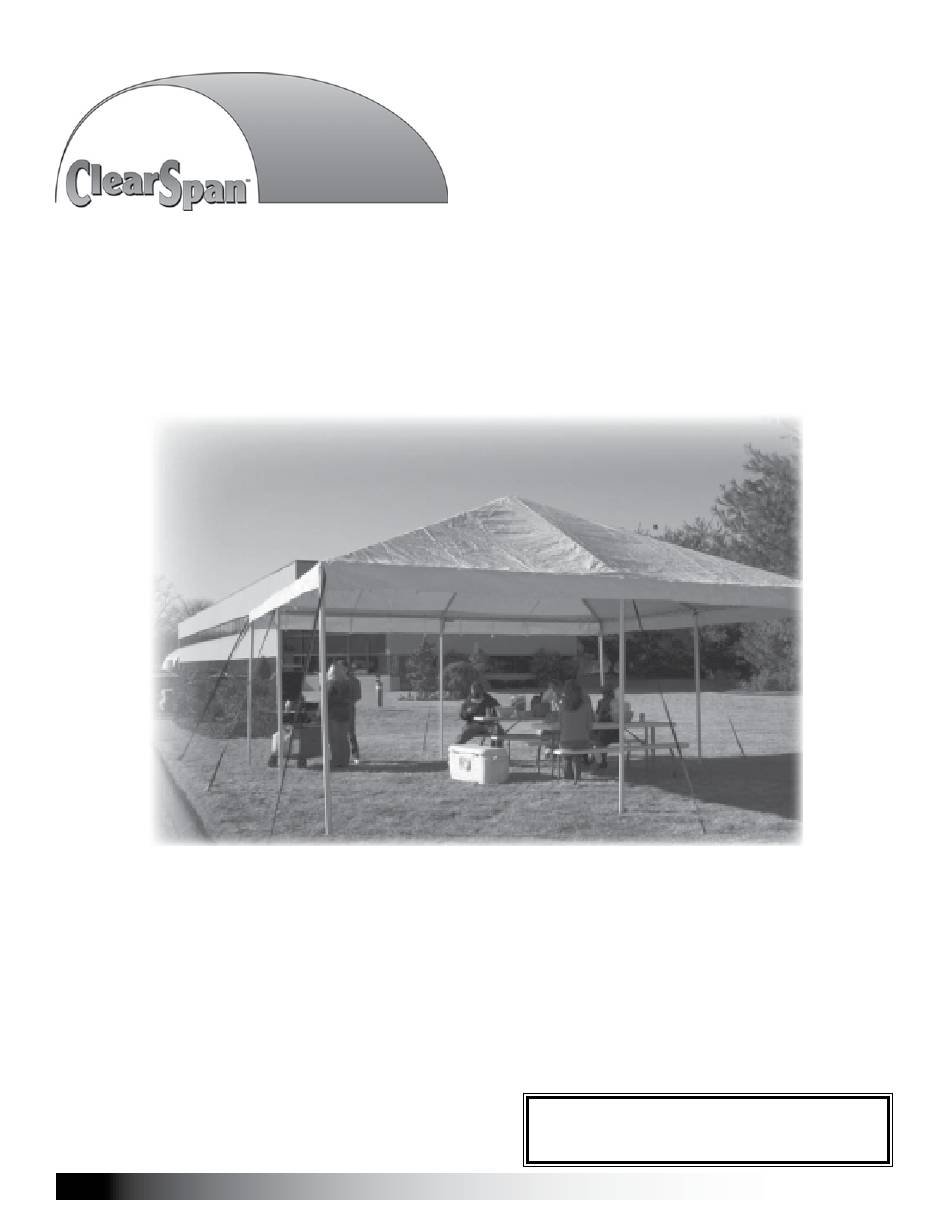

- Page 1 CLEARSPAN JUBILEE TENTS ™ ClearSpan ™ Jubilee Frame Tent Photo may show a different but similar model. STK# DIMENSION ©2008 ClearSpan™ 103938 & 104510 20' Wide x 20' Long All Rights Reserved. Reproduction is prohibited without permission. Revision date: 07.01.08...
-
Page 2: Safety Precautions
• Never erect the structure under power lines. • Identify whether underground cables and pipes are Thank you for purchasing this ClearSpan™ shelter. When present before preparing the site or anchoring the properly assembled and maintained, this product will structure. -
Page 3: Assembly Procedure
These words and phrases are common to most ends of a pipe can be inserted into couplers and the ClearSpan™ shelters and identify the different parts of straight ends of other pipes of the same diameter. the shelter. (Some are used in this document. Others may •... -
Page 4: Required Tools
CLEARSPAN JUBILEE TENTS ™ REQUIRED TOOLS SPECIAL NOTE: Baseboards for Frame The following list identifies the main tools needed to These instructions recommend installing a baseboard assemble the shelter. Additional tools and supports may be under the legs of the frame. The baseboard runs from the needed depending on the structure, location, and front to the back of the building. - Page 5 CLEARSPAN JUBILEE TENTS ™ The following graphics and photos will help you identify the different parts of the building. Consult the Frame Overview for additional details and diagrams. (Some parts are not shown.) FA4482B FAH007B & FALB01B 100441 Tek Screw...
- Page 6 Photo may show a different but similar model. OVERVIEW This section describes assembling your jubilee frame tent. For details of each assembly procedure, consult the Frame Overview and the individual sections of these instructions. See illustration below to identify main parts of shelter.
- Page 7 CLEARSPAN JUBILEE TENTS ™ LAY OUT THE BUILDING SITE NOTE: Setting customer-supplied baseboards on the site in the correct positions is another way to prepare After the site is prepared, identify the location of the shelter for the frame assembly.
-
Page 8: Frame Assembly
CLEARSPAN JUBILEE TENTS ™ ASSEMBLE THE JUBILEE TENT COMPONENTS FRAME ASSEMBLY NOTE: Assistance is required to assemble the tent. Gather the parts: • All rafter assemblies RAFTER ASSEMBLY • Leg pipe (#190P094D) Gather the parts: • Crown Coupler (#103932) •... - Page 9 CLEARSPAN JUBILEE TENTS ™ FRAME ASSEMBLY (CONTINUED) ATTENTION: Once the holes of the rafters and the TOP VIEW couplers have been aligned and secured with a carriage bolt and nut, secure each rafter pipe connection with a Tek Base Rafter Base Rafter screw.
- Page 10 CLEARSPAN JUBILEE TENTS ™ FRAME ASSEMBLY (CONTINUED) NOTES: Spread the leg pipes apart to fit the lower base rafters Using the diagram below, lift each leg pipe and slip the into the fittings. appropriate short cross or 3-way open corner onto the leg pipe.
- Page 11 CLEARSPAN JUBILEE TENTS ™ SQUARE THE ASSEMBLED FRAME ANCHOR THE FRAME Once the frame is anchored properly, continue with these Complete these steps: instructions. Square the frame by measuring diagonally corner- WARNING: Securing the rafter mounting feet (if to-corner at ground level and align all legs as shown equipped) to baseboards set on the site is not a below.
- Page 12 CLEARSPAN JUBILEE TENTS ™ PREPARE MAIN COVER Pull rope to remove excess slack and tie off. Gather the parts: Repeat Steps 5 and 6 for the remaining three sides. • Cover NOTE: To keep cover centered, install all ropes before the cover is fully tightened.
- Page 13 For replacement or missing parts, call 1.800.245.9881 for assistance. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters do not have any tested loading criteria. NOTE: A space will remain between the cover edge and the frame as shown in the diagrams.
- Page 14 CLEARSPAN JUBILEE TENTS ™ FULL FRAME TOP VIEW Corner Coupler Corner Coupler Side Coupler Base Rafter Base Rafter Side Rafter Side Rafter Base Rafter Base Rafter Corner Coupler Corner Coupler Side Coupler Revision date: 07.01.08...
- Page 15 CLEARSPAN JUBILEE TENTS ™ TOP VIEW LOWER BASE ASSEMBLY Lower Base Rafter Lower Base Rafter Short Cross Short Cross Short Cross Short Cross Lower Base Rafter Lower Base Rafter Revision date: 07.01.08...
