ClearSpan™
Herculean Carport

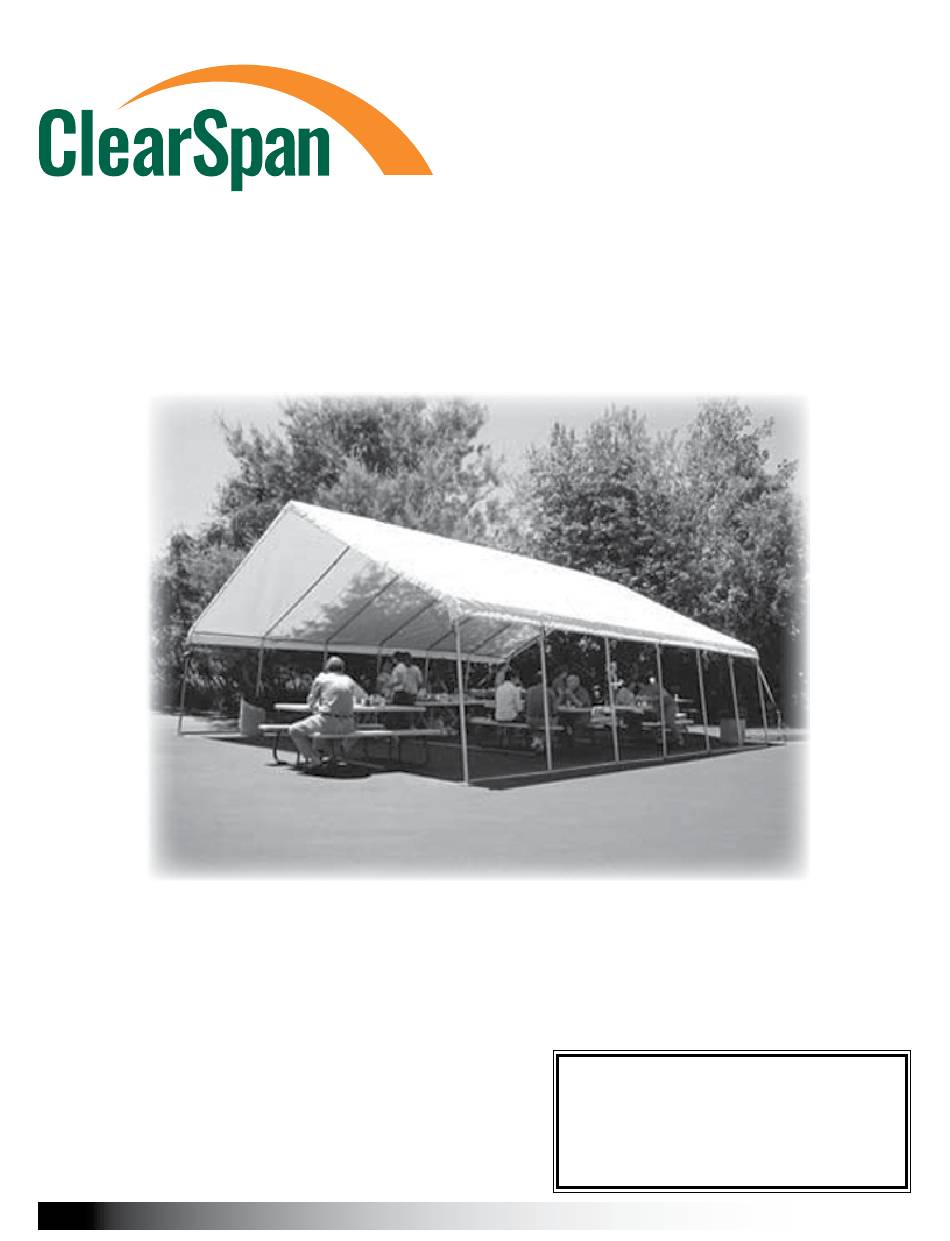

Photo may show a different but similar model.
CLEARSPAN
STK#
DIMENSIONS
107846
30' W x 16' 10" H x 20' L
107847
30' W x 16' 10" H x 30' L
107848
30' W x 16' 10" H x 40' L
107849
30' W x 16' 10" H x 50' L
CARPORTS
™
1
Advertisement
Table of Contents
Related Manuals for ClearSpan Herculean 107846
Summary of Contents for ClearSpan Herculean 107846
- Page 1 DIMENSIONS 107846 30’ W x 16' 10” H x 20’ L 107847 30’ W x 16' 10” H x 30’ L ©2009 ClearSpan™ 107848 30’ W x 16' 10” H x 40’ L All Rights Reserved. Reproduction 107849 30’ W x 16' 10” H x 50’ L is prohibited without permission.
-
Page 2: Safety Precautions
• Never erect the structure under power lines. • Identify whether underground cables and pipes are Thank you for purchasing this ClearSpan™ shelter. When present before preparing the site or anchoring the properly assembled and maintained, this product will structure. -
Page 3: Assembly Procedure
These words and phrases are common to most joints and to fasten brackets to rafters. ClearSpan™ shelters and identify the different parts of the shelter. (Some are used in this document. Others may not apply to this particular shelter.) These terms describe the shipped parts and can also be found on the materials list/spec sheets included with the shipment. -
Page 4: Required Tools
CLEARSPAN CARPORTS ™ REQUIRED TOOLS Optional Ground Post Installation (additional purchase) The following list identifies the main tools needed to In addition to the frame installation steps, these instructions assemble the shelter. Additional tools and supports may be describe installing an optional ground posts. (Additional needed depending on the structure, location, and purchase required.) - Page 5 CLEARSPAN CARPORTS ™ The following graphics and photos will help you identify the different parts. (Some parts are not shown.) QH1061 CC6214 FA4482B 100441 Ratchet Fabric Clip Tek screw Nut Setter 103620b 10015108 10015808 Plain End Strap Cross Connector Tee Coupler...
- Page 6 CLEARSPAN CARPORTS ™ ADDITIONAL PARTS IDENTIFICATION NOTES In some instances, there can be differences between the parts that are shown and referenced in the instructions and the parts that are shipped with the shelter. These differences do not affect the integrity of the shelter, but can change the assembly procedures.
-
Page 7: Frame Diagram
CLEARSPAN CARPORTS ™ ClearSpan ™ Herculean Carport End Rafter Purlins Interior Rafter 30' Wide Base Rail FRAME DIAGRAM NOTE: Diagram above may show a shelter that differs in length from the actual frame. The use and positions of ratchets may also differ from actual shelter. Frame above is used for illustration purposes. - Page 8 CLEARSPAN CARPORTS ™ LAY OUT THE BUILDING SITE NOTE: Flip the ground post so the non-drilled end (no After the site is prepared, identify the location of the shelter bolt holes) is up and insert the ground post driver into corners to help square the frame after it is assembled.
- Page 9 CLEARSPAN CARPORTS ™ END RAFTER ASSEMBLY (2) NOTE: Attach one fabric clip (CC6214) to one end of each 1.90" pipe and insert the end with the clip into the Gather the parts: 3-way couplers (end rafters) or 4-way couplers (interior rafters).
-
Page 10: Frame Assembly
CLEARSPAN CARPORTS ™ FRAME ASSEMBLY 3. Connect the rafter pipes (#190P20325) and legs (#190P096) to the frame using the 4-way couplers This section describes assembling the shelter frame. (#107622) for the interior sections. 1. Stand one end rafter in place. (Additional assistants are NOTE: Snap one fabric clip (CC6214) onto one end of required to hold the rafter in position.) Check that the... - Page 11 CLEARSPAN CARPORTS ™ SQUARE THE ASSEMBLED FRAME ANCHOR THE SHELTER At this point, anchor the shelter. Consult the MUST READ Skip this section and continue with the ANCHOR THE document for anchoring information and suggestions. SHELTER information if using the optional ground posts.
- Page 12 CLEARSPAN CARPORTS ™ INSTALL MAIN COVER 4. Locate the cover ends with strapping and align cover with the front and back of the shelter. Gather the parts: 5. Insert the cover conduits into the pockets of the cover. • Ratchets (1'' 4000lb) •...
- Page 13 CLEARSPAN CARPORTS ™ INSTALL COVER (CONTINUED) 13. Using the main cover conduit and the straps as guides, attach the ratchets to the rafters at the proper height. 10. At the ends, locate the black straps. Using the straps Fasten ratchets to the outside of these rafters using a as guides, fasten ratchets to the outside of the end Tek screw for each ratchet.
- Page 14 If the shelter is moved, inspect all parts and connections before reassembling. • For replacement or missing parts, call 1-800-245-9881 for assistance. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 04.27.09...
- Page 15 CLEARSPAN CARPORTS ™ 16'10 3/4" Height 8'0" QUICK START GUIDE Sidewall Height 30' Wide Carports 30'0" Width FRONT Grid Represents 12" Squares 107846 (30' x 20') 107847 (30' x 30') 107848 (30' x 40') 107849 (30' x 50') Revision date: 04.27.09...
- Page 16 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 17 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 18 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 19 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 20 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 21 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 22 CLEARSPAN CARPORTS ™ Revision date: 04.27.09...
- Page 23 CLEARSPAN CARPORTS ™ Space below is reserved for customer notes. Revision date: 04.27.09...
