Summary of Contents for ClearSpan SolarGuard PB01110R4

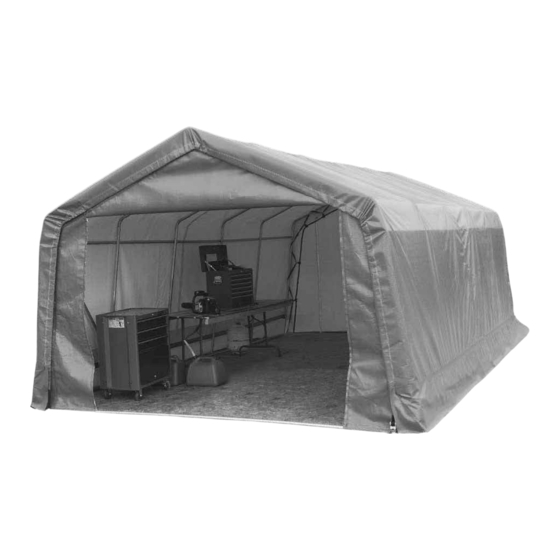

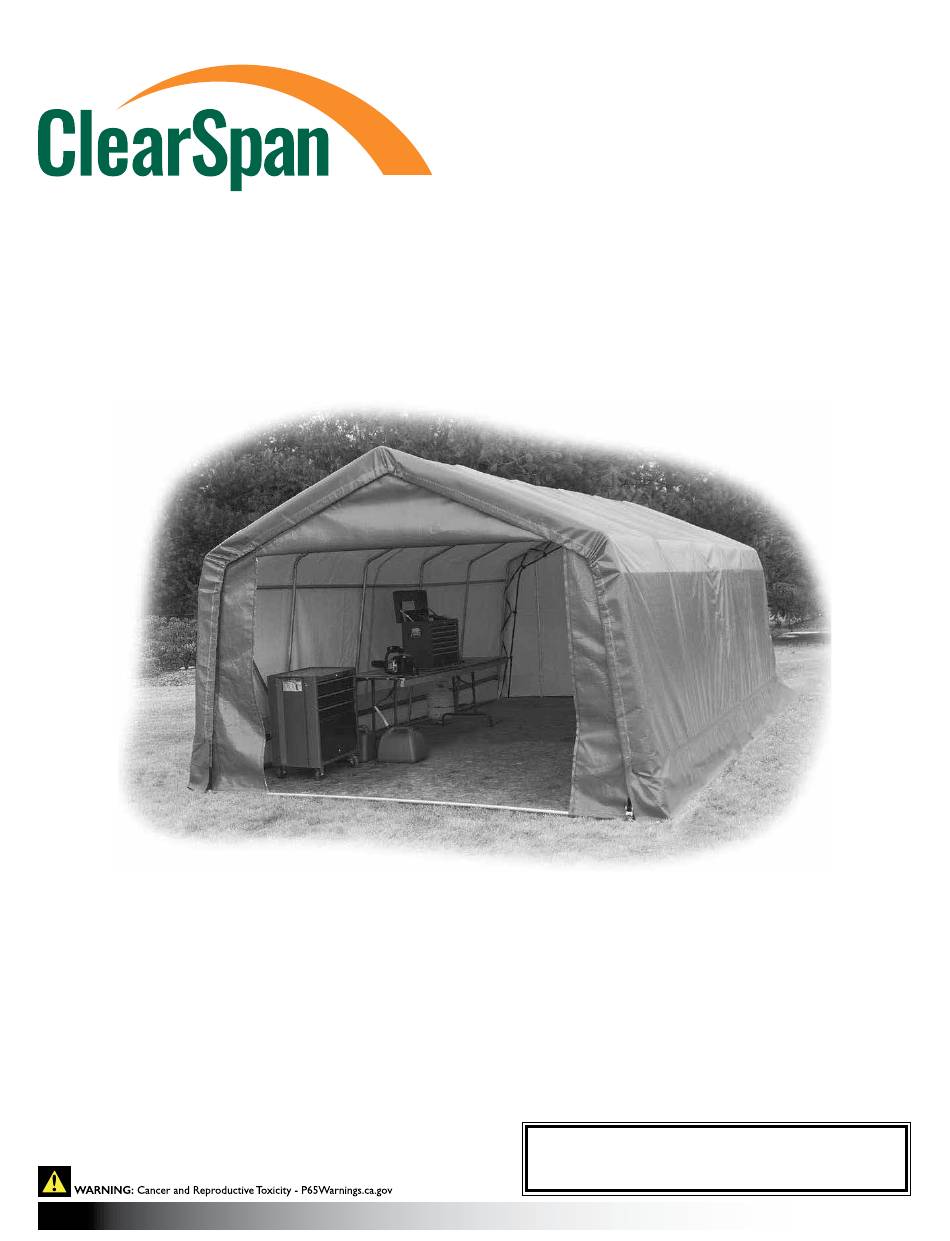

- Page 1 CLEARSPAN GARAGES & STORAGE SHEDS ™ ClearSpan™ SolarGuard™ House Style Storage Building Photo may show a different but similar model. ©2014 ClearSpan™ All Rights Reserved. Reproduction STK# DIMENSIONS is prohibited without permission. PB01110R4 11' 4" W x 10' H x 24' L...
-
Page 2: Safety Precautions
• Never erect the structure under power lines. • Identify whether underground cables and pipes are Thank you for purchasing this ClearSpan™ shelter. When present before preparing the site or anchoring the properly assembled and maintained, this product will structure. -
Page 3: Assembly Procedure
These words and phrases are common to most ends of a pipe can be inserted into couplers and the ClearSpan™ shelters and identify the different parts of straight ends of other pipes. the shelter. (Some are used in this document. Others may not apply to this particular shelter.) These terms describe... -
Page 4: Required Tools
CLEARSPAN GARAGES & STORAGE SHEDS ™ REQUIRED TOOLS The following list identifies the main tools needed to Space below is reserved for customer notes. assemble the shelter. Additional tools and supports may be needed depending on the structure, location, and application. - Page 5 CLEARSPAN GARAGES & STORAGE SHEDS ™ The following graphics and photos will help you identify the different parts and show you how they are used. (Some parts are not shown.) QH1400 10015106 CC6212 FA4482B Band Clamp T-Fitting Fabric Clip Tek Screw...
- Page 6 CLEARSPAN GARAGES & STORAGE SHEDS ™ House Style Storage Building OVERVIEW This section describes the assembly of your house style storage building. For details, please see section, Assembling the House Style Storage Building Components. See illustration below to identify main parts of shelter.
-
Page 7: Rafter Assembly
CLEARSPAN GARAGES & STORAGE SHEDS ™ LAY OUT THE BUILDING SITE ASSEMBLING THE HOUSE STYLE STORAGE BUILDING COMPONENTS After the site is prepared, identify the location of the shelter NOTE: Assistance is required to assemble the storage corners helps to square the frame after it is assembled. -
Page 8: Frame Assembly
CLEARSPAN GARAGES & STORAGE SHEDS ™ RAFTER ASSEMBLY (CONTINUED) NOTE: All clamps must be positioned as shown. Use a piece of duct tape to keep the clamps from sliding 3. With the main rafter pipes seated at each joint and the when the rafter is set in place. - Page 9 CLEARSPAN GARAGES & STORAGE SHEDS ™ FRAME ASSEMBLY (CONTINUED) 8. Move to the lower end of the rafters and position the purlin 4-6'' up from the finished grade. 3. Position an interior rafter from the end rafter using an on-center, rafter-to-rafter spacing of 4'. (Another person is required to hold the rafter in position.)
- Page 10 CLEARSPAN GARAGES & STORAGE SHEDS ™ FRAME ASSEMBLY (CONTINUED) Strut Assembly Procedure: 11. Finish each purlin with a 73.5'' pipe and use the final 1. After the rafter assembly is complete, verify that the end rafter to complete the assembly.
- Page 11 CLEARSPAN GARAGES & STORAGE SHEDS ™ SQUARE THE ASSEMBLED FRAME END CONDUIT ASSEMBLIES Gather the Parts Gather the Parts: • Measuring tape • Pipe 1.315'' x 66'' Plain (2) • Tek Screws • Pipe 1.315'' x 69'' Swaged (2) •...
- Page 12 CLEARSPAN GARAGES & STORAGE SHEDS ™ PREPARE END PANELS ATTACH END CONDUIT ASSEMBLIES CAUTION: To prevent damage, do not install end 1. Verify the end conduits of end panels are inserted into panels on a windy day. the T-fittings correctly.
- Page 13 CLEARSPAN GARAGES & STORAGE SHEDS ™ ATTACH END PANEL ASSEMBLIES PREPARE MAIN COVER Gather the Parts: Gather the Parts: • End Panel Assemblies • Ratchet (1'' 4000lb) • Fabric Clips (Divide the quantity in half.) • Pipe 1.315'' x 75'' Swaged •...
- Page 14 CLEARSPAN GARAGES & STORAGE SHEDS ™ PREPARE MAIN COVER (CONTINUED) 2. With all ropes attached to the cover conduit, lift the conduit and carry the cover toward the base of the 3. After assembling the cover conduits, locate the main frame.
- Page 15 CLEARSPAN GARAGES & STORAGE SHEDS ™ ATTACH MAIN COVER (CONTINUED) 11. Thread the plain strap ends into the ratchet and slightly tighten. 7. Thread the D-ring strap through the slit in the cover pocket, wrap it around the cover conduit, and attach NOTE: It may be necessary to remove excess strap if it the strap assembly to the rafter.
- Page 16 • If the shelter is moved, inspect all parts and connections before reassembling. NOTE: With the exception of Truss Arch buildings, ClearSpan™ shelters and greenhouses do not have any tested loading criteria. Revision date: 03.03.14...
- Page 17 CLEARSPAN GARAGES & STORAGE SHEDS ™ QUICK START GUIDE House Style Storage Master Frame shown may differ in length from actual frame. Revision date: 03.03.14...
- Page 18 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 03.03.14...
- Page 19 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 03.03.14...
- Page 20 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 03.03.14...
- Page 21 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 03.03.14...
- Page 22 CLEARSPAN GARAGES & STORAGE SHEDS ™ Revision date: 03.03.14...
- Page 23 CLEARSPAN GARAGES & STORAGE SHEDS ™ Space below is reserved for customer notes. Revision date: 03.03.14...
