UM0882
5
PC demonstration firmware software
PC demonstration software supplied with the board can work together with the board
firmware using USB interface. The software can detect the board, drive it by mouse instead
of the on-board buttons, trigger and visualize the result of the error detection.

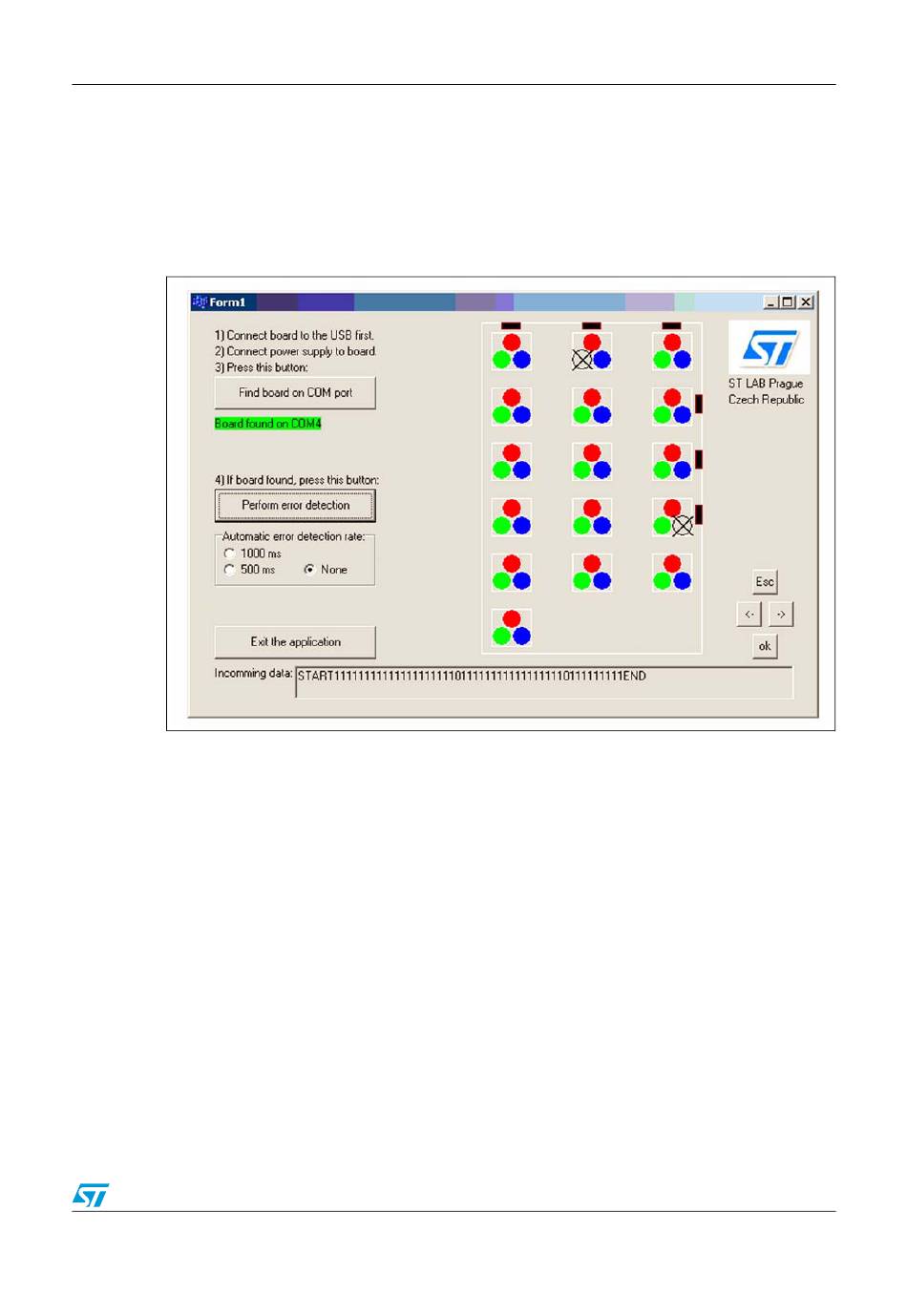

Figure 6.
The following steps are required to run the PC demonstration software correctly:
1.
Disconnect the power supply from the board.
2.
Connect the board to the computer through the USB cable.
3.
Connect the board to the power supply.
4.
If Windows asks for the installation of an appropriate driver, use STMicroelectronics
VirtualCOMPort.
www.BDTIC.com/ST
®
Software - Windows
Doc ID 16881 Rev 2
PC demonstration firmware software
application
9/20
