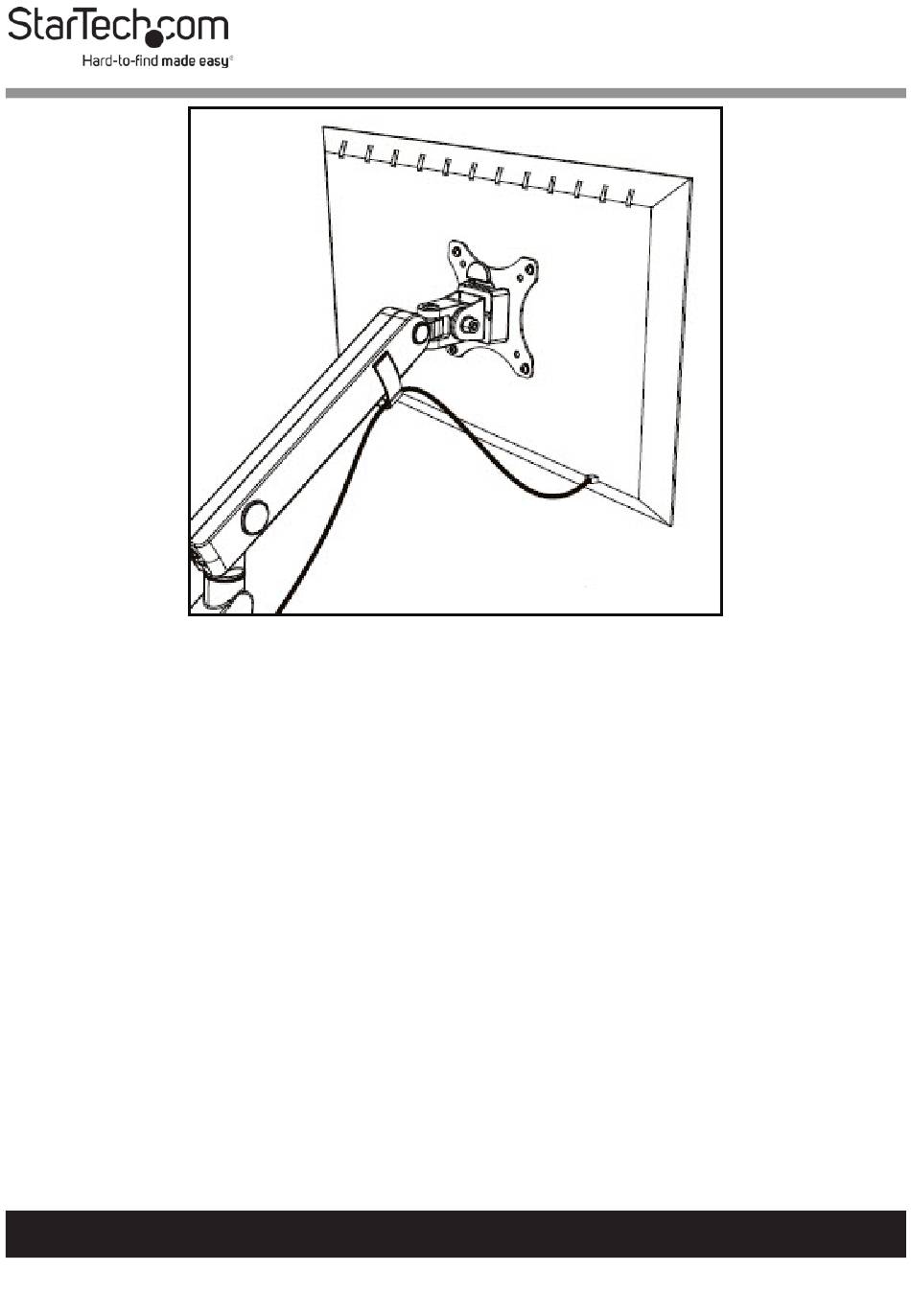

Routing the Monitor Cables Along the Upper Arm
Route the Monitor Cables down the Lower Arm and
4.
through the Tool Clip on the back of the Base Clamp
Assembly. Make sure that you leave enough slack in the
Monitor Cable to compensate for arm movement and
adjustments.
Replace the Cable Cover removed in step 1 by sliding it
5.
down the Lower Arm, securing the Cable Cover to the
Lower Arm. Be careful not to pinch the Monitor Cable
between the Cable Cover and Lower Arm.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
35
