4.2 Styles and installation of Temposonics
RP5-M (connection type D58)
48 (1.89)
e.g. for
M5 or
MS/ER
#10 screws
NS/RN
Port 1 L/A L/A Port 2
35.6 (1.4)
Ø 5.3
50 (1.97)
(Ø 0.21)
68 (2.68)
Controlling design dimensions are in millimeters and measurements in ( ) are in inches

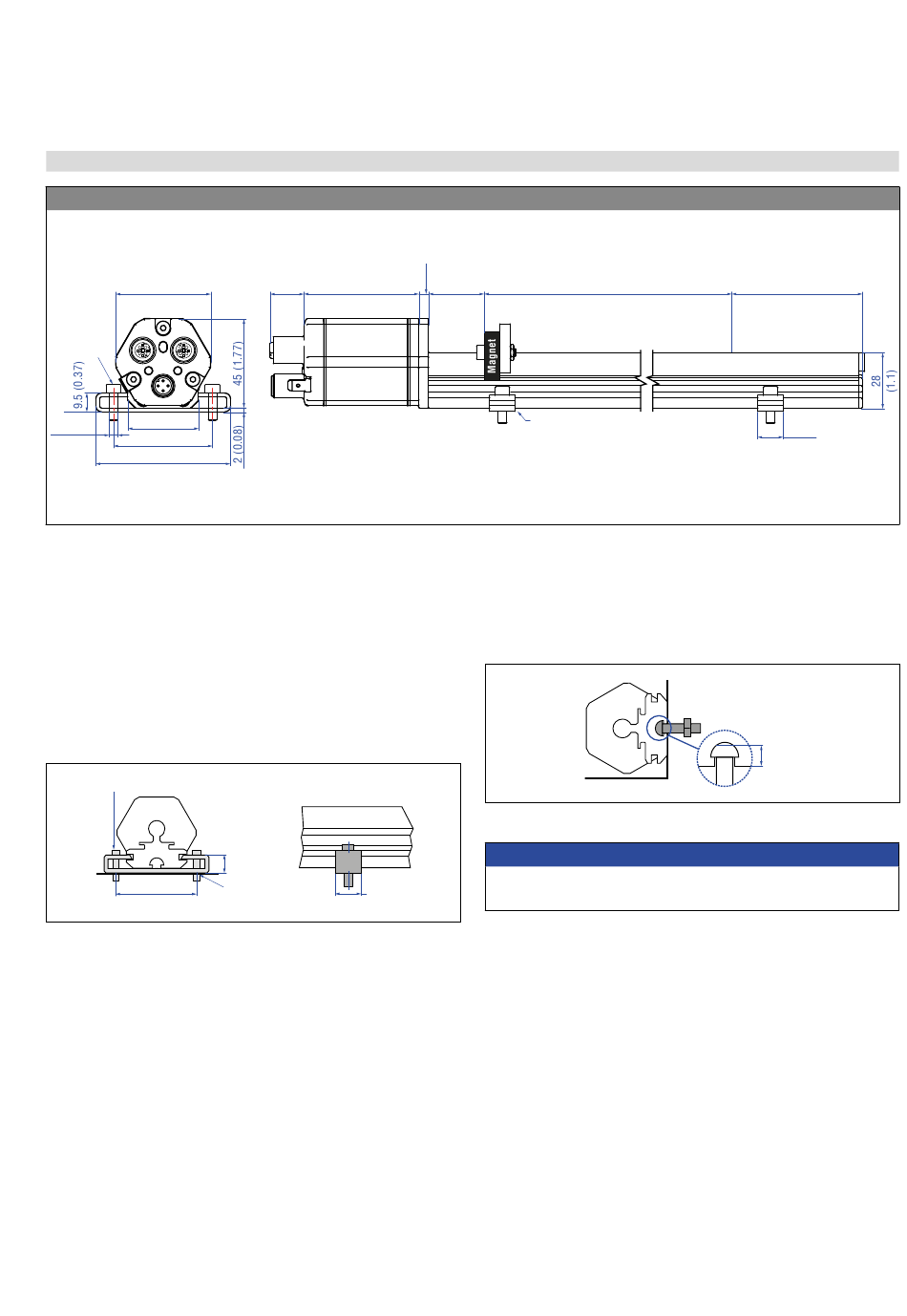

Fig. 3: Temposonics RP5 with U-magnet
®
Installation of RP5
The position sensor can be installed in any position. Normally,
the sensor is firmly installed and the position magnet is fastened
to the mobile machine part. Thus it can travel along the sensor profile.
The sensor is fitted on a flat machine surface using the mounting
clamps (Fig. 4). A length-dependent number of these clamps are
delivered with the sensor and must be distributed over the profile
at regular distances. For fastening use M5×20 screws to DIN 6912
that should be tightened with a fastening torque of 5 Nm.
Fastening torque: 5 Nm
50
(1.97)
Fig. 4: Mounting clamps (part no. 400 802) with cylinder screw M5×20
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
R-Series V RP5
®
Sensor electronics
housing
17 58
(0.67) (2.28)
9.5
(0.37)
Bore Ø 5.3 14.6
(Ø 0.21) (0.57)
5
(0.2)
Null zone Stroke length
28
(1.1)
Adjustable mounting clamp
Alternative:
If only limited space is available, the profile sensor can be mounted
also via the T-rail in the profile bottom using a T-slot nut M5
(part no. 401 602) or a sliding block (Fig. 5).
Fig. 5: T-slot nut M5 (part no. 401 602)
NOTICE
Take care to mount the sensor in an axially parallel position to
avoid damage to magnet and sensor.
I 9 I
Temposonics
®
25...6350
(1...250)
* Stroke length > 5000 mm (196.9 in.)
M5
R-Series V EtherCAT
®
Operation Manual
Dead zone
66/71*
(2.6/2.8*)
14.6
(0.57)
≤ 5
(≤ 0.2)
