R-Series V EtherCAT
Temposonics
®
Operation Manual

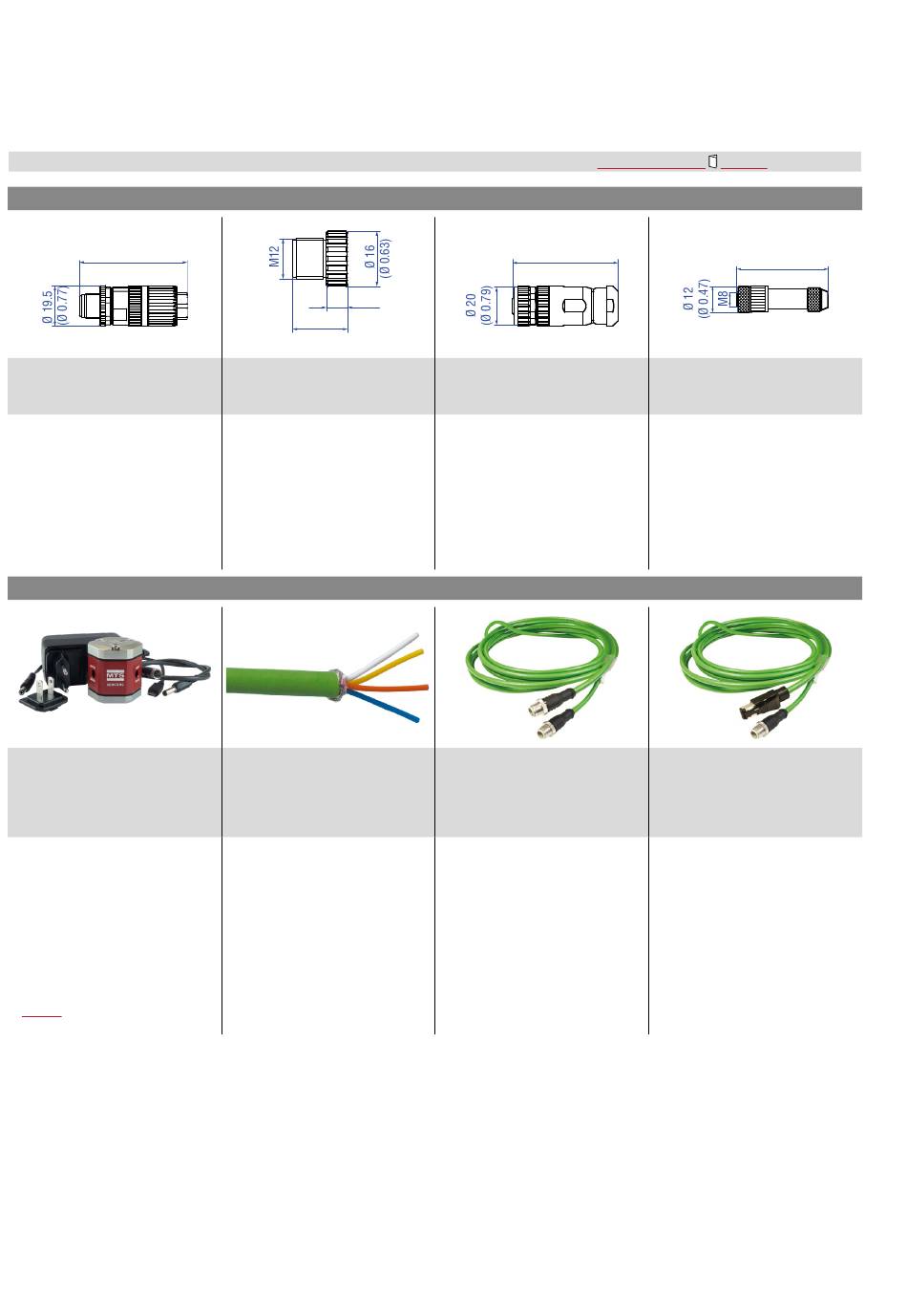

4.10 Frequently ordered accessories for EtherCAT
Cable connectors*
52
(2.05)
Signal connector M12 D-coded male
(4 pin), straight
Part no. 370 523
Material: Zinc nickel-plated
Termination: Insulation-displacement
Cable Ø: 5.5...7.2 mm (0.2...0.28 in.)
Wire: 24 AWG – 22 AWG
Operating temperature:
−25...+85 °C (−13...+185 °F)
Ingress protection: IP65/IP67
(correctly fi tted)
Fastening torque: 0.6 Nm
Programming kit
TempoLink kit for Temposonics
®
R-Series V
Part no. TL-1-0-EM08 (D56)
Part no. TL-1-0-EM12 (D58)
• Connect wirelessly via Wi-Fi enabled
device or via USB with the diagnostic
tool
• Simple connectivity to the sensor
via 24 VDC power line (permissible
cable length: 30 m)
• User friendly interface for mobile
devices and desktop computers
• See product brief "TempoLink
smart assistant" (document part no.:
551976) for further information
*/ Follow the manufacturer's mounting instructions
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
®
output – Additional options available in our
®
6
(0.24)
16
(0.63)
Signal connector M12 end cap
Part no. 370 537
Female connectors M12 should be
covered by this protective cap
Material: Brass nickel-plated
Ingress protection: IP67 (correctly fi tted)
Fastening torque: 0.39...0.49 Nm
Cables
PUR signal cable
Part no. 530 125
Material: PUR jacket; green
Features: Cat 5, highly fl exible, halogen
free, energy chain capable, mostly oil &
fl ame restistant
Cable Ø: 6.5 mm (0.26 in.)
Cross section: 2 × 2 × 0.35 mm
2
(22 AWG)
Operating temperature:
−20...+60 °C (−4...+140 °F)
53
(2.09)
Power connector M12 A-coded female
(5 pin), straight
Part no. 370 677
Material: GD-Zn, Ni
Termination: Screw
Contact insert: CuZn
Cable Ø: 4...8 mm (0.16...0.31 in.)
Wire: 1.5 mm²
Operating temperature:
−30...+85 °C (−22...+185 °F)
Ingress protection: IP67 (correctly fi tted)
Fastening torque: 0.6 Nm
Signal cable with M12 D-coded male
connector (4 pin), straight – M12
D-coded, male connector (4 pin),
straight
Part no. 530 064
Material: PUR jacket; green
Features: Cat 5e
Cable length: 5 m (16.4 ft)
Cable Ø: 6.5 mm (0.26 in.)
Ingress protection: IP65/IP67/IP68
(correctly fi tted)
Operating temperature:
−30...+70 °C (−22...+158 °F)
I 22 I
Accessories Guide 551 444
Power connector M8 female
(4 pin), straight
Part no. 370 504
Material: CuZn nickel plated
Termination: Solder
Cable Ø: 3.5...5 mm (0.14...0.28 in.)
Wire: 0.25 mm
2
Operating temperature:
−40...+85 °C (−40...+185 °F)
Ingress protection: IP67 (correctly fi tted)
Fastening torque: 0.5 Nm
Signal cable with M12 D-coded male
connector (4 pin), straight – RJ45
male connector, straight
Part no. 530 065
Material: PUR jacket; green
Features: Cat 5e
Cable length: 5 m (16.4 ft)
Cable Ø: 6.5 mm (0.26 in.)
Ingress protection M12 connector:
IP67 (correctly fi tted)
Ingress protection RJ45 connector:
IP20 (correctly fi tted)
Operating temperature:
−30...+70 °C (−22...+158 °F)
43
(1.7)
