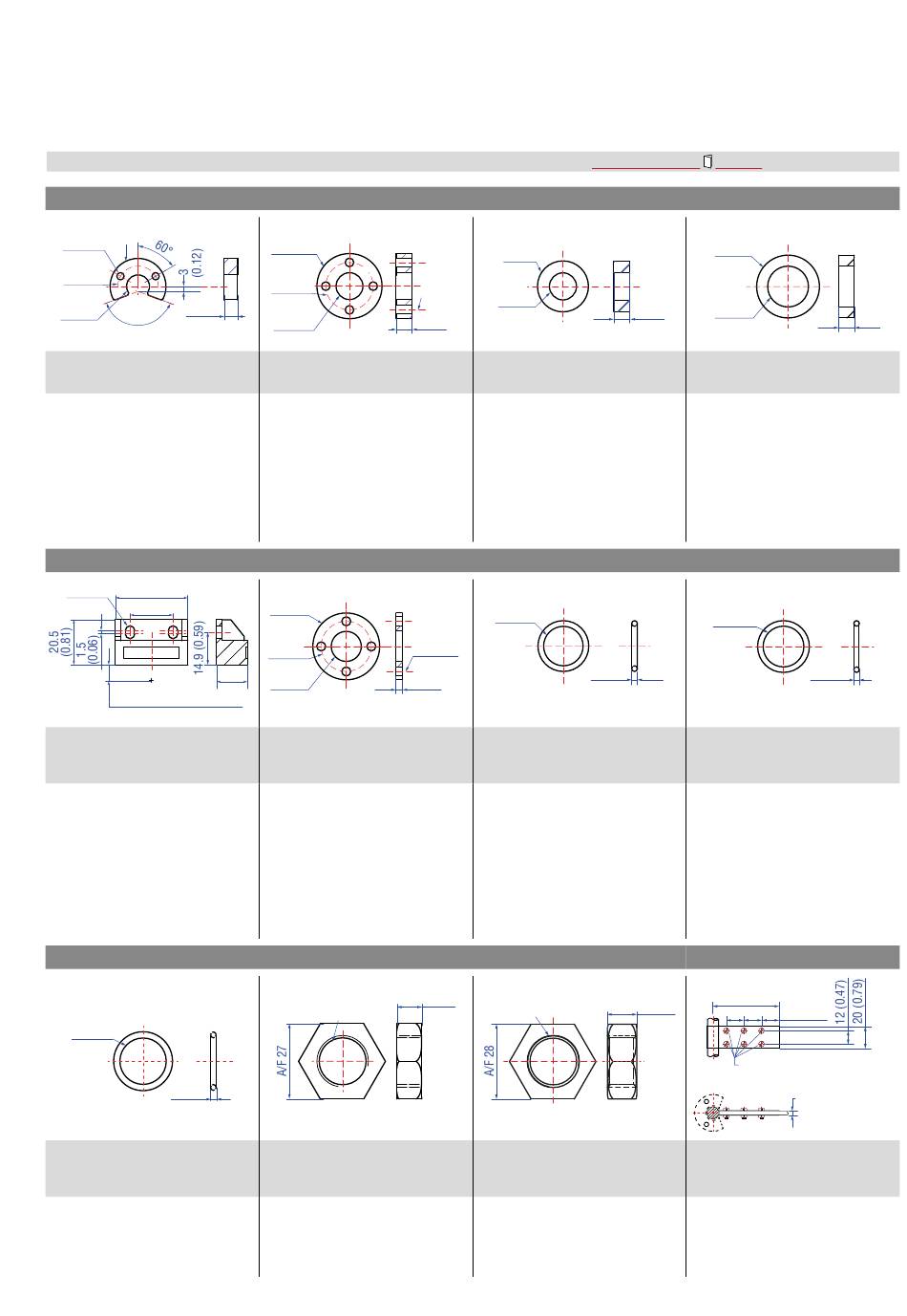

4.9 Frequently ordered accessories for RH5 design – Additional options available in our
Position magnets
Ø 32.8
(Ø 1.29)
Ø 4.3
(Ø 0.17)
Ø 23.8
(Ø 0.94)
7.9
Ø 13.5
140°
(0.31)
(Ø 0.53)
U-magnet OD33
Part no. 251 416-2
Material: PA ferrite GF20
Weight: Approx. 11 g
Surface pressure: Max. 40 N/mm
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40...+105 °C (−40...+221 °F)
Marked version for sensors with inter-
nal linearization: Part no. 254 226
Position magnet
Ø 4.3 33 (1.3)
(Ø 0.17)
19.5 (0.77)
8 ± 2 (0.31 ± 0.08)
Distance to sensor element
Block magnet L
Part no. 403 448
Material: Plastic carrier with hard ferrite
magnet
Weight: Approx. 20 g
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40...+75 °C (−40...+167 °F)
This magnet may infl uence the sensor
performance specifi cations for some
applications.
O-ring
Ø 19.3
(Ø 0.76)
Ø 2.2
(Ø 0.09)
O-ring for threaded fl ange
M22×1.5-6g
Part no. 561 337
Material: FPM
Durometer: 75 Shore A
Operating temperature:
−20...+200 °C (−6...+392 °F)
Controlling design dimensions are in millimeters and measurements in ( ) are in inches
Ø 32.8
(Ø 1.29)
Ø 23.8
(Ø 0.94)
Ø 13.5
(Ø 0.53)
Ring magnet OD33
Part no. 201 542-2
Material: PA ferrite GF20
Weight: Approx. 14 g
Surface pressure: Max. 40 N/mm
2
Fastening torque for M4 screws: 1 Nm
Operating temperature:
−40...+105 °C (−40...+221 °F)
Marked version for sensors with inter-
nal linearization: Part no. 253 620
Magnet spacer
Ø 31.8
(Ø 1.25)
Ø 23.8
(Ø 0.94)
14
Ø 14.3
(0.55)
(Ø 0.56)
Magnet spacer
Part no. 400 633
Material: Aluminum
Weight: Approx. 5 g
Surface pressure: Max. 20 N/mm
Fastening torque for M4 screws: 1 Nm
Mounting accessories
M18×1.5-6g
Hex jam nut M18×1.5-6g
Part no. 500 018
Material: Steel, zinc plated
Ø 25.4
(Ø 1)
Ø 4.3
(Ø 0.17)
Ø 13.5
(Ø 0.53)
7.9
(0.31)
Ring magnet OD25.4
Part no. 400 533
Material: PA ferrite
Weight: Approx. 10 g
Surface pressure: Max. 40 N/mm
2
Operating temperature:
−40...+105 °C (−40...+221 °F)
Marked version for sensors with inter-
nal linearization: Part no. 253 621
O-rings
Ø 15.3
(Ø 0.6)
Ø 4.3
(Ø 0.17)
3.2
(0.13)
O-ring for threaded fl ange
M18×1.5-6g
Part no. 401 133
Material: Fluoroelastomer
Durometer: 75 ± 5 Shore A
Operating temperature:
2
−40...+204 °C (−40...+400 °F)
8.7
¾"-16 UNF-3A
(0.34)
Hex jam nut ¾"-16 UNF-3A
Part no. 500 015
Material: Zinc plated
I 21 I
Temposonics
®
Accessories Guide 551 444
Ø 30.5
(Ø 1.2)
Ø 19.8
7.9
(0.31) (Ø 0.78)
Ring magnet
Part no. 402 316
Material: PA ferrite coated
Weight: Approx. 13 g
Surface pressure: Max. 20 N/mm
2
Operating temperature:
−40...+100 °C (−40...+212 °F)
Ø 16.4
(Ø 0.65)
Ø 2.2
(Ø 0.09)
O-ring for threaded fl ange
¾"-16 UNF-3A
Part no. 560 315
Material: Fluoroelastomer
Durometer: 75 ± 5 Shore A
Operating temperature:
−40...+204 °C (−40...+400 °F)
60 (2.36)
11
(0.43)
Ø 3.2 (Ø 0.13)
M3 fastening screws (6×)
Fixing clip
Part no. 561 481
Application: Used to secure sensor
rods (Ø 10 mm (Ø 0.39 in.)) when
using an U-magnet or block magnet
Material: Brass, non-magnetic
R-Series V EtherCAT
®
Operation Manual
7.6
(0.3)
2
Ø 2.2
(Ø 0.09)
16 (0.63)
3.2 (0.13)
