STEP

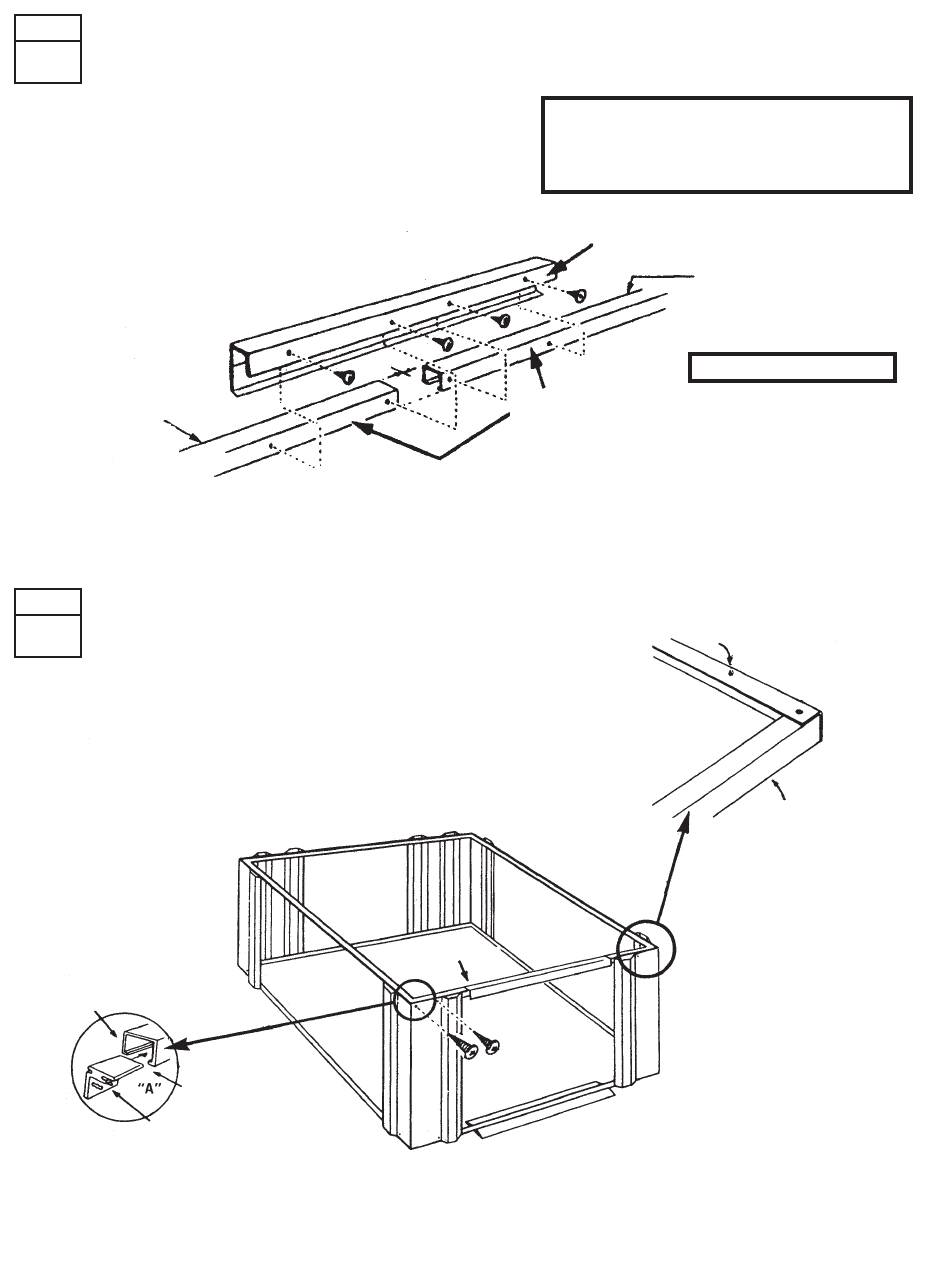

SPLICED ASSEMBLY OF DOOR
6 6 6 6 6
TRACK AND DOOR FASCIA
1. Assemble lengths of door track No. 66H
(2 pcs.) together with door fascia No. 635H.
USE SELF TAPPING SCREWS...10mm (3/8") LONG
MOST HOLES ON THIS SIDE
STEP
7 7 7 7 7

DOOR TRACK INSTALLATION

1. Install 4 door glides No. A67 into door track. See "A"
2. Fasten door track to the front corner panels with screws.
IMPORTANT: PLACE EDGE OF DOOR TRACK WITH
THE MOST HOLES FACING THE OUTSIDE.
SLIDE DOOR GLIDES
INTO DOOR TRACK
INSIDE
OUTSIDE
DOOR GLIDE
No. A67
See Pages 4 and 5 for profile,
correct part number and quantity
required for your building.
DOOR FASCIA No. 635H
DOOR TRACK
No. 66H
Door Track
"A"
DOORWAY
USE SELF TAPPING SCREWS...10mm (3/8") LONG
9
MOST HOLES ON THIS SIDE
VIEWED FROM INSIDE
SIDE
FRONT
