STEP

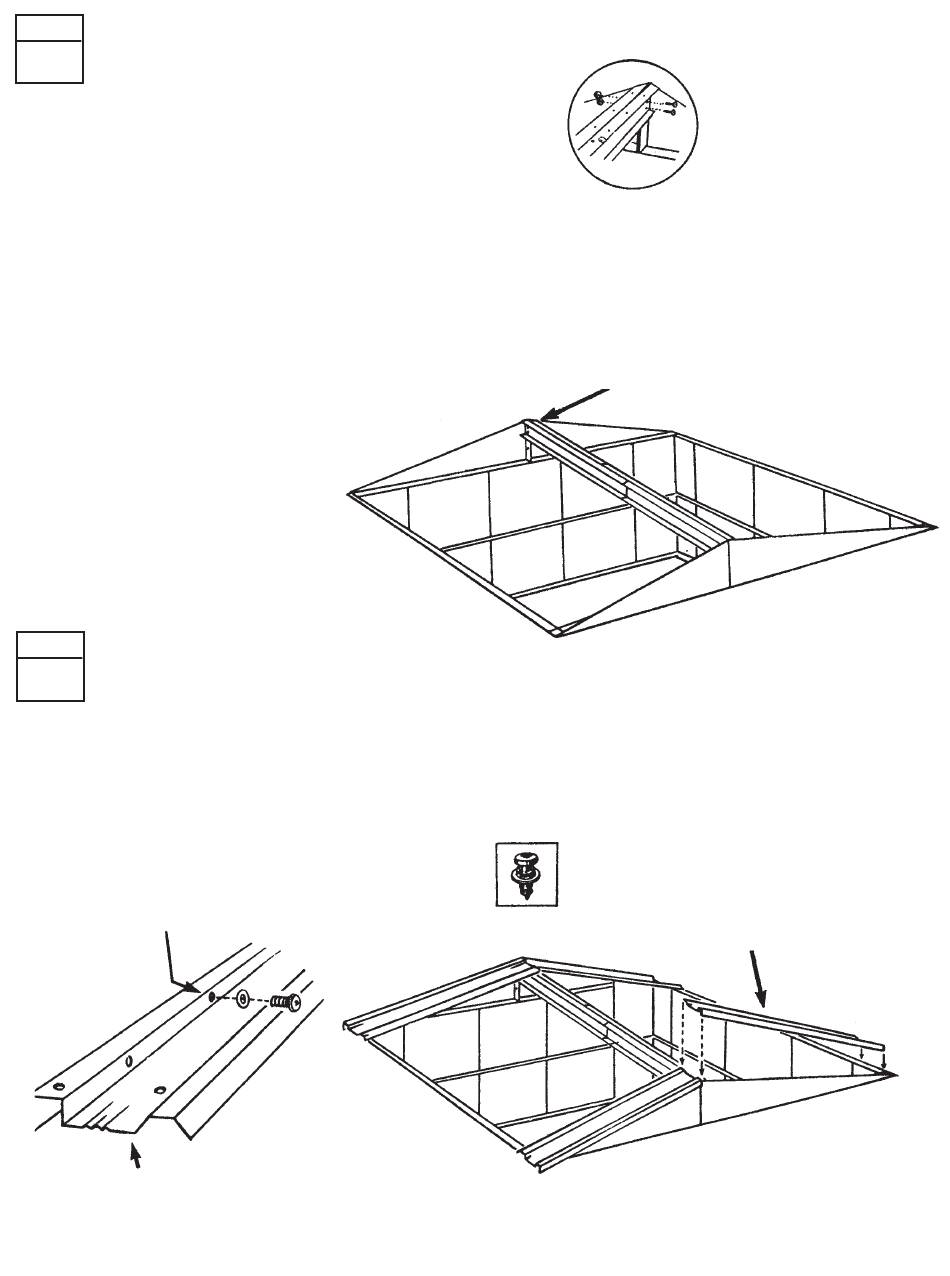

INSTALLATION OF MAIN RIDGE BEAM

13 13 13
13 13
1.
Position the main ridge beam section on the
gables...with the extended lips of the gable section
fitting between the 2 pieces...See "A". Fasten with
bolts and nuts.
NOTE - TO INSTALL USE ONLY 2 BOLTS
AND NUTS AT EACH END.
STEP
14 14

ROOF END PANELS

14 14 14
1.
Position roof end panel over gable section...line up holes
and fasten with bolts and washers through the roof end panel
and with nuts on the outside of the gable.
2.
Then fasten to ridge beam and side top rails with screws and
washers.
USE 10mm (3/8") LONG BOLTS AND NUTS
WITH WASHERS
ROOF END PANEL
No. 618H (left)
No. 644H (right)
"A"
NOTE - THE SURFACE OF THE RIDGE BEAM
CONTAINING THE MOST NUMBER OF FIXING
HOLES TO FACE UPWARD
USE 10mm (3/8") LONG BOLTS AND NUTS
USE SELF TAPPING SCREWS...
10mm (3/8") LONG WITH WASHERS
AT RIDGE BEAMS AND TOP RAILS
DOORWAY
13
MAIN RIDGE BEAM
L13
