DOOR JAMBS AND FRONT MIDWALL BRACE

1.
Remove corner panel screws as necessary and install door jambs No. 69G on
each side of entry ramp...sliding door jamb under the half corner panel and
under door fascia. Fasten at base rail --- then fasten through the door fascia and
door jamb into the side of door track. Replace half corner panel screws.
2.
Fasten door jamb to half corner panels at midwall height with 10mm (3/8") bolts
and nuts.
3.
Install front midwall brace No.628H on each side of doorway.
Use short bolts 6mm (1/4").
USE SELF TAPPING SCREWS...10mm (3/8") LONG

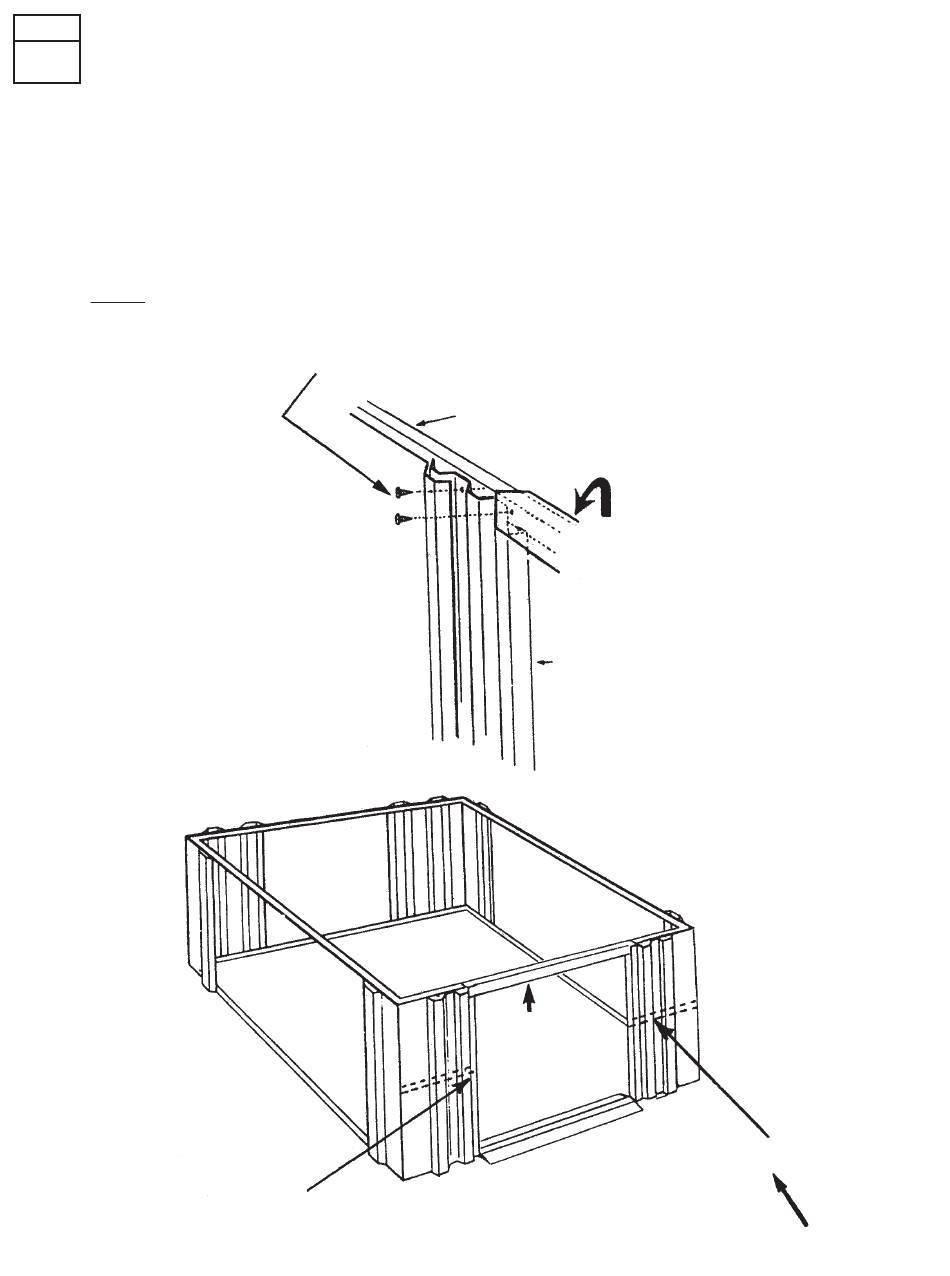

DOOR JAMB
No. 69G
DOOR TRACK
DOOR FASCIA
DOOR JAMB
No. 69G
DOOR FASCIA
DOORWAY
USE SHORT 6mm (1/4") BOLTS AND NUTS
10
FRONT MIDWALL BRACE
No. 628H
