Anchoring - SPACEMAKER EL64 Assembly Instructions Manual

COMPLETE THE ANCHORING OF YOUR
STEP
BUILDING NOW!
19 19 19
19 19
YOUR BUILDING MUST BE ANCHORED!
1. Check building position on concrete base and adjust
to original planned position.
2. Carefully position base frame in the center of solid
base foundation --- to allow at least 100mm (4") of
solid base outside the frame.
3. Check base frame for squareness by measuring
diagonal corners. Your measurements should be
equal! See "A"

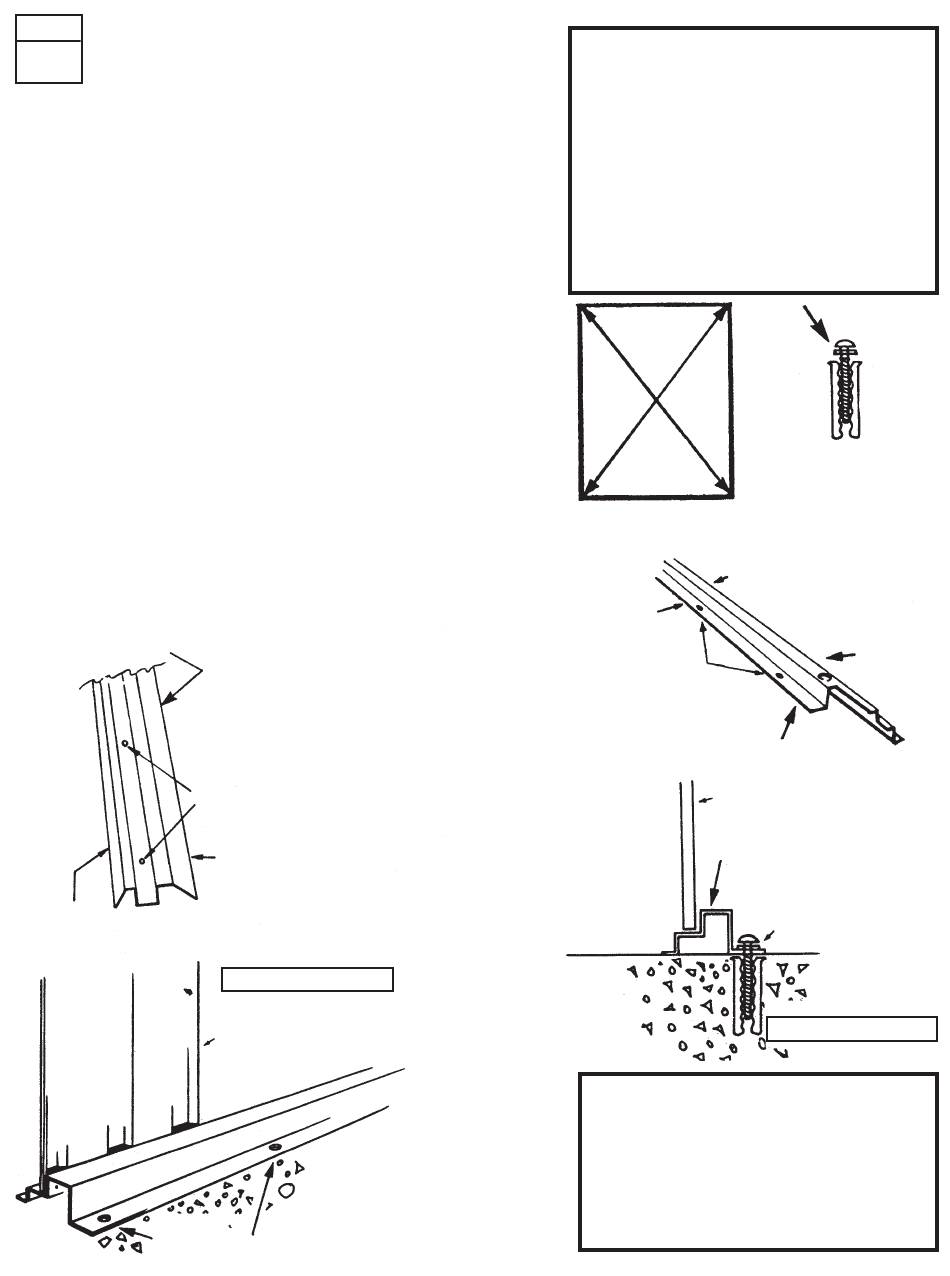

4. Inside your base frame...there are 6mm (1/4") holes in
the entry ramp and on the inside flange of the front,
side and rear base rails.
holes...for installation of anchor screws into the con-
crete or patio stones. See "B" and "C"
5. When your base frame is square...use a black felt pen
to mark location of anchor hole center on the con-
crete. Mark for all anchor holes.
6. With an electric drill and a Carbide Bit (Check size to
suit anchor shield)...drill proper holes into concrete at
each mark.
7. Insert anchor shields into each hole.
8. Fasten all base rails to concrete with anchor screws.
ENTRY RAMP
"B"
INSIDE
ANCHOR HOLES
These are anchor
ANCHOR HOLES
OUTSIDE
INSIDE OF BUILDING
WALL PANEL
NOTE: Anchor screws, washers and shields
are NOT supplied as part of the hardware
package and may be purchased at your local
store. You will require No. 10 concrete
anchor screws 38mm (1 1/2") long with wash-
ers and expansion shields PLUS a Carbide
Bit to suit.
6x4 - 12
6x5 - 14
6x6 - 14
"A"
DOORWAY
SIDE BASE RAIL
ANCHOR HOLES
This building is designed to withstand normal
wind loads when installed according to in-
structions. The manufacturer cannot be held
responsible for any consequences due to
buildings that are not installed per instruc-
tions or for damage due to any weather
conditions or acts of God.
16
QUANTITY REQUIRED
6x7 - 18
6x9 - 20
ANCHOR SCREWS
WASHER & SHIELD
REAR BASE RAIL
"C"
INSIDE
WALL PANELS
BASE RAIL
ANCHOR SCREWS
WASHER & SHIELD
INSIDE OF BUILDING
IMPORTANT
L16
OUTSIDE
