Side And Rear Base Rails; Front Base Rails And Entry Ramp - SPACEMAKER EL64 Assembly Instructions Manual

STEP
1 1 1 1 1

SIDE AND REAR BASE RAILS

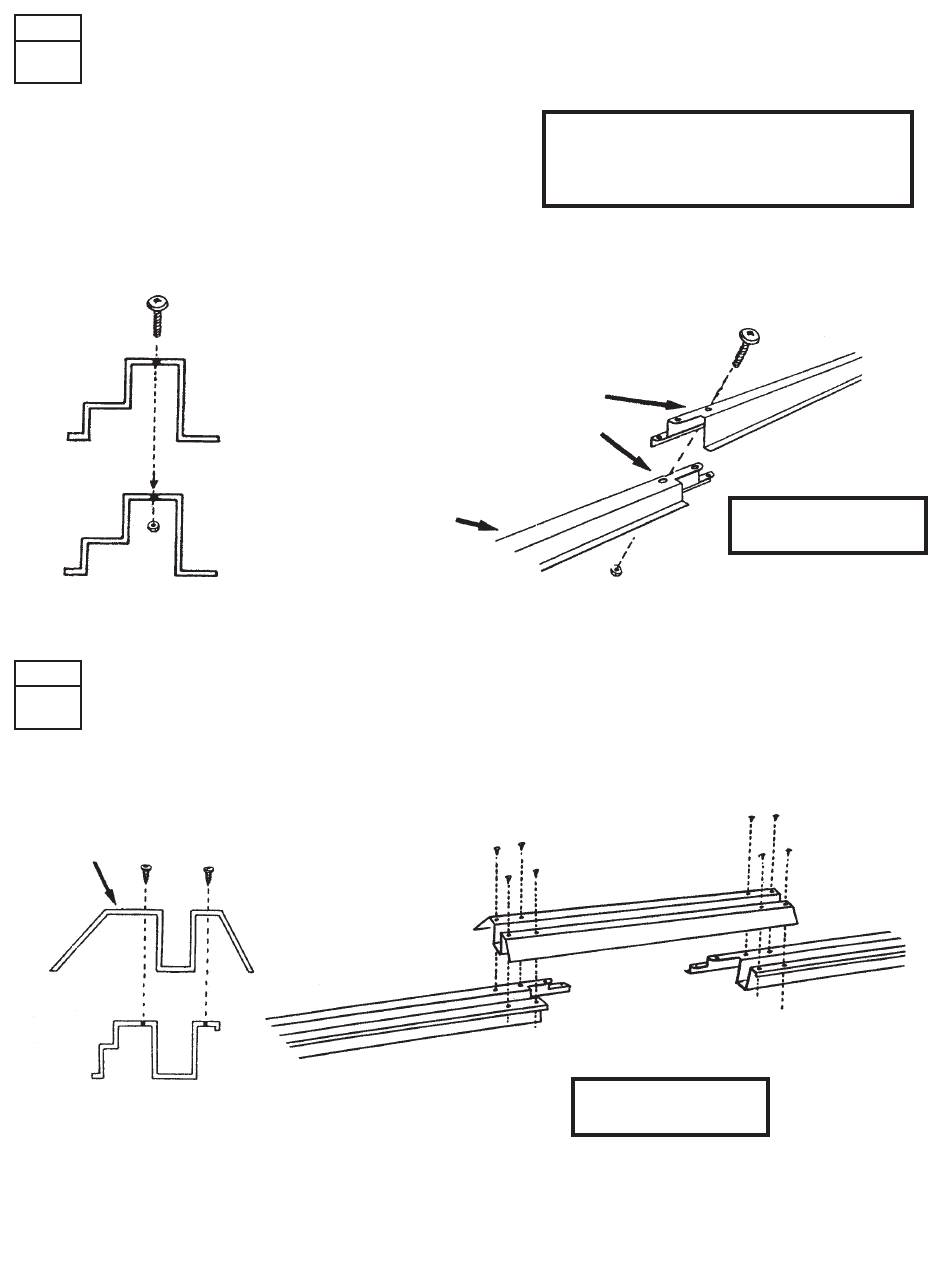

1. Assemble lengths of side base rails (2 pcs.)
together with a lap joint. Align large holes.
Repeat for other side.
NOTE - for product sizes 6x4, 6x5 and 6x6
these parts are in one full length piece.
2. Repeat above procedure to assemble lengths
of rear base rails No. 64H (2 pcs.).
OUTSIDE
STEP
2 2 2 2 2

FRONT BASE RAILS AND ENTRY RAMP

1.
Space out lengths of front base rails No. 62H (2 pcs.) and
fasten entry ramp No. 610H between lengths.
WIDE FLANGE ON OUTSIDE
OUTSIDE
INSIDE
SIDE BASE RAIL
INSIDE
See Pages 4 and 5 for profile,
correct part number and quantity
required for your building.
USE 10mm (3/8") LONG BOLTS AND NUTS
LARGE
6mm (1/4") HOLES
ENTRY RAMP
No. 610H
FRONT BASE RAIL
No. 62H
USE SELF TAPPING SCREWS..10mm (3/8") LONG
6
SIDE BASE RAIL
VIEWED FROM
INSIDE BUILDING
FRONT BASE RAIL
No. 62H
VIEWED FROM
INSIDE BUILDING
