Door And Hardware Assembly - SPACEMAKER EL64 Assembly Instructions Manual

STEP
20 20 20
20 20

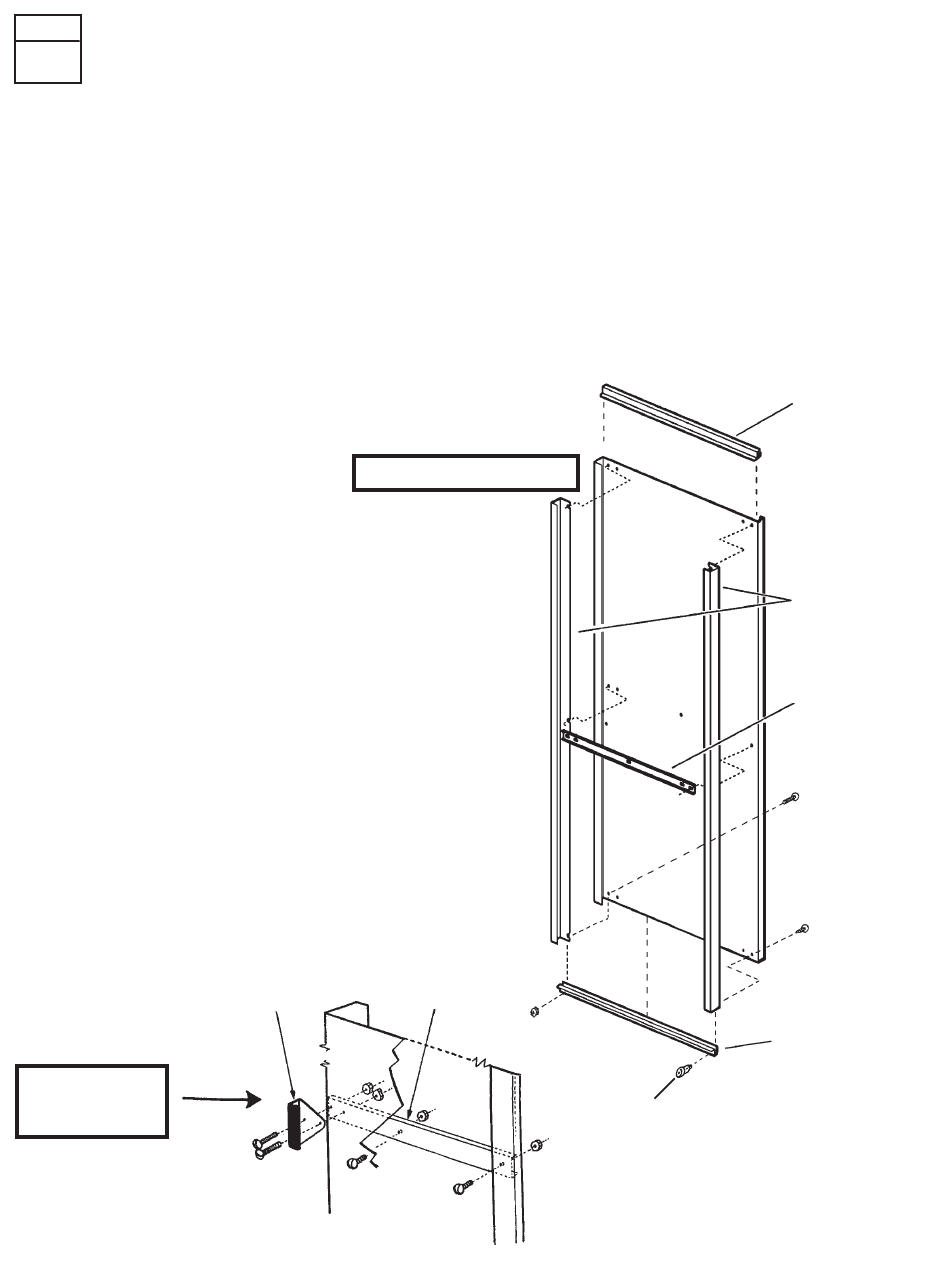

DOOR AND HARDWARE ASSEMBLY

1.
Position a door strengthener No. DIS03 on the inside return lip of the door as shown in the
illustration.
2.
Position a second door strengthener No. DIS03 on the opposite inside surface of the door.
3.
Attach top and bottom door braces No. 632 to the door. Ensure the two vertical door
strengtheners are positioned underneath the top and bottom door braces.
Fasten bottom brace only...with screw and door spacer on door jamb end and bolt and nut on
the other end. Use hole positions exactly as shown below.
4.
Install horizontal door brace No. 623. Fasten to door strengthener and door panel and install door
handle. See "A".
5.
Repeat for left door panel...be sure to position door spacer in correct position.
DOOR HANDLE
VIEWED FROM
OUTSIDE
BUILDING
USE 13mm (1/2")
LONG BOLTS
AND NUTS FOR
DOOR HANDLE
RIGHT HAND DOOR PANEL
INSIDE VIEW OF DOOR
USE 10mm (3/8")
LONG BOLT
AND NUT
"A"
HORIZONTAL
DOOR BRACE
No. 623
17
TOP
DOOR BRACE
No. 632
DOOR
STRENGTHENERS
No. DIS03
HORIZONTAL
DOOR BRACE
No. 623
BOTTOM
DOOR BRACE
No. 632
DOOR SPACER
USE SELF
TAPPING SCREW
10mm (3/8") LONG
AL17
