STEP
17 17 17
17 17

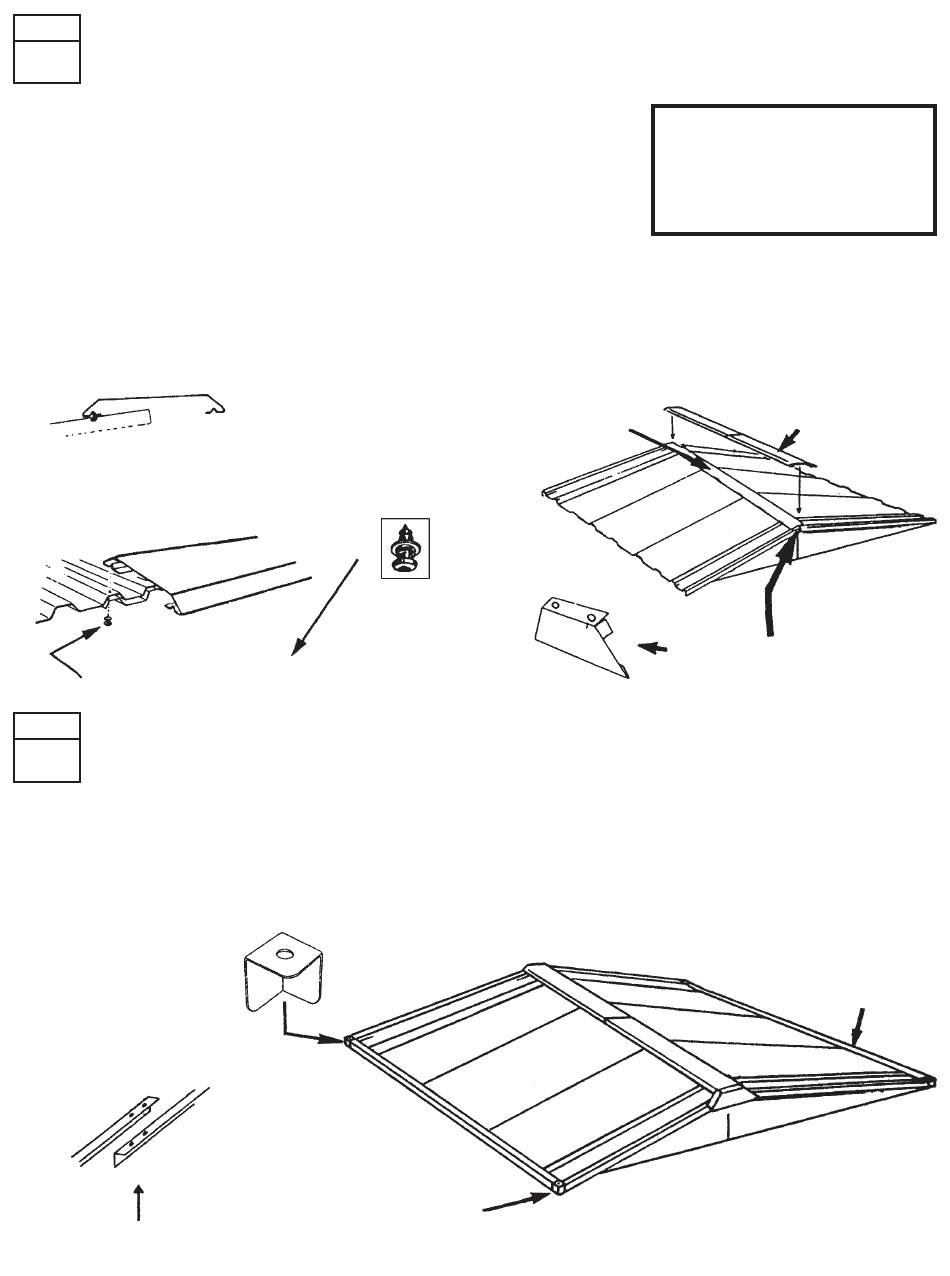

RIDGE COVER AND END CAP INSTALLATION

1. Carefully position ridge cover section and arrange for a
helper outside on a ladder to adjust position and to apply
pressure as necessary.
2. From the inside of building start from the gable ends and
fasten with screws and washers up through the holes in the
overlap ridge of the upper roof panels. The screws go through
into the under return lip of the ridge cover.
3. Continue to fasten both sides as you work from the ends to the
center.
4. Clip ridge end caps No. 49H in place and fasten with screws.
SCREW HOLES ARE ON THE
UNDER RETURN LIP..IN
THESE GROOVES
THROUGH OVERLAP RIDGE
OF UPPER ROOF PANEL
STEP
18 18
18 18 18

ROOF EDGE TRIM AND ROOF CORNER CAP

Install lengths of roof edge trim (2 pcs.) separately and place
1.
over edge of roof panels with a lap joint. Fasten with bolts and
nuts. NOTE - for sizes 6x4, 6x5 and 6x6 these parts are in
one full length piece.
Fasten corner caps (4) through roof end panels and roof edge
2.
trim with bolts and nuts.
USE 10mm (3/8") LONG
BOLTS AND NUTS
ASSEMBLY SCREW
WITH WASHER
ROOF CORNER CAP
ROOF CORNER CAP
USE 10mm (3/8") LONG BOLTS AND NUTS
15
See Pages 4 and 5 for
profile, correct part
number and quantity
required for your building.
TAPE
RIDGE COVER
END CAP
No. 49H
L15
RIDGE COVER
SECTION
ROOF EDGE
TRIM
