STEP
9 9 9 9 9

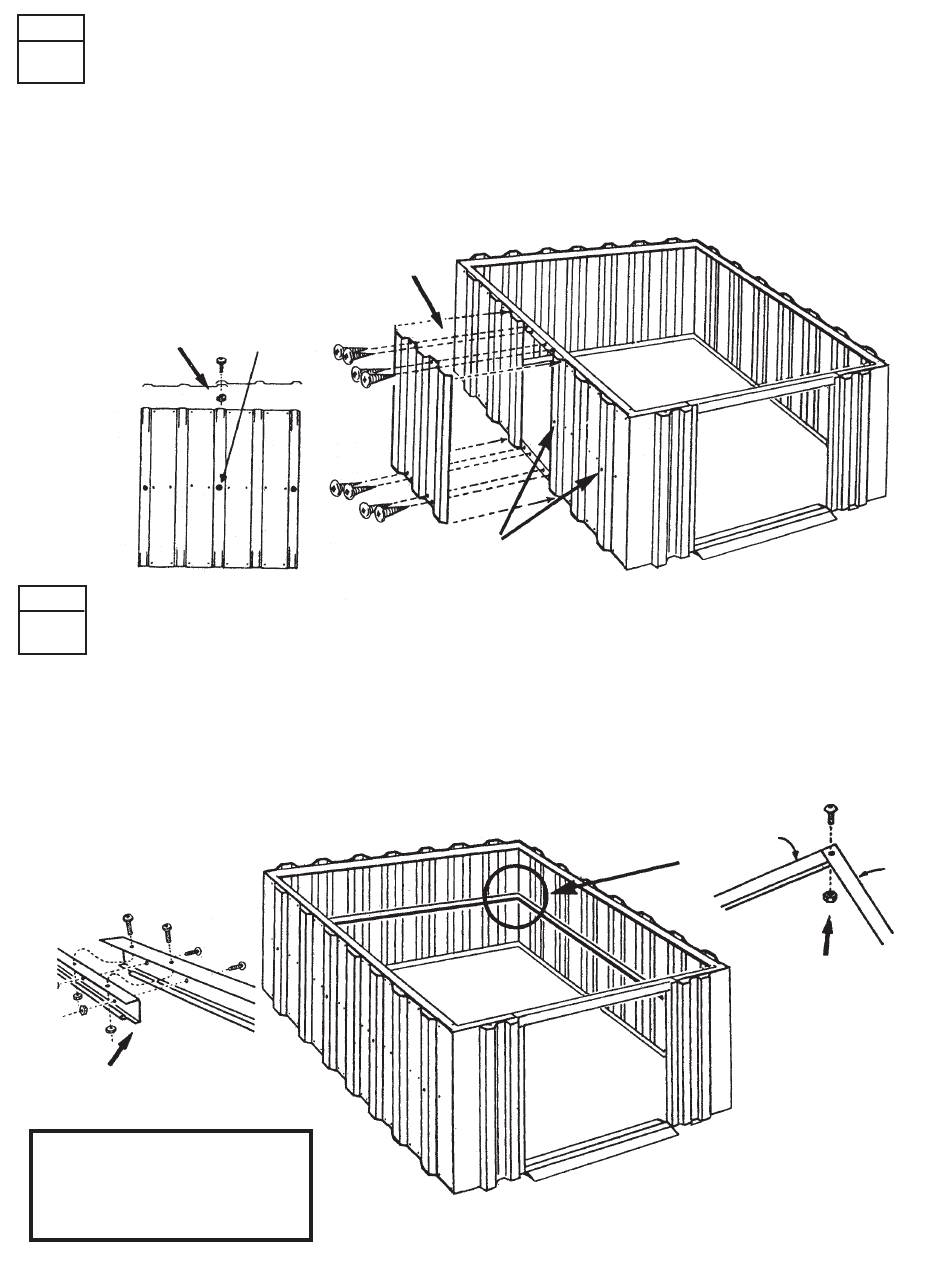

SIDE AND REAR WALL PANELS

1.
Install wall panels on each side wall...fasten to base rails and top rails. NOTE - Size
6x4 and 6x6 uses a smaller half wall panel along the side walls only.
2.
At the midwall height on the overlap ridge joint of each wall panel...fasten with
10mm (3/8") long bolts and nuts. See "A"
3.
Repeat above procedure to install rear wall panels.
USE 10mm (3/8") LONG
BOLTS AND NUTS
STEP
1 1 1 1 1 0 0 0 0 0

SIDE AND REAR MIDWALL BRACE

1. Assemble lengths of side midwall brace (2 pcs.) together with a lap joint. See "A" Fasten
midwall brace to wall panels from the outside. Repeat for other side. NOTE - for sizes 6x4, 6x5
and 6x6 these parts are in one full length piece.
2. Repeat above procedure to assemble and fasten lengths of rear midwall brace No. 640H (2 pcs.)...
See "B".
"A"
USE 10mm (3/8") LONG
BOLTS AND NUTS
ALL WALL PANELS ARE TO BE
ATTACHED TO TOP RAIL, MID-
WALL BRACE AND BASE RAIL
WITH SCREWS.
USE SELF TAPPING SCREWS
...10mm (3/8") LONG
"A"
"A"
11
REAR
"B"
USE 10mm (3/8") LONG
BOLTS AND NUTS
L11
"B"
SIDE
