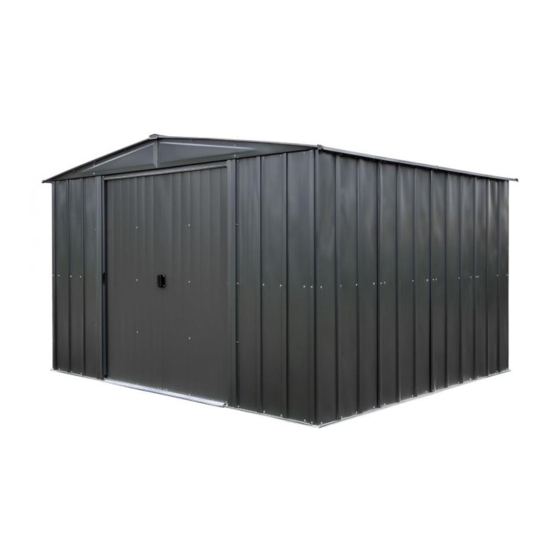

SPACEMAKER RGB108ONEU Owner's Manual & Assembly Instructions
  1. Manuals
  2. Brands
  3. SPACEMAKER Manuals
  4. Outdoor Storage
  5. RGB108ONEU
  6. Owner's manual & assembly instructions

SPACEMAKER RGB108ONEU Owner's Manual & Assembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
Owner's Manual & Assembly Instructions
JC01
728220319
Storage Area: 74 Sq. Ft.
6,9 m
2
BUILDING DIMENSIONS * Size rounded o to the nearest foot
*Approx.
Size
10' x 8'
121" x 92 3/4"
3,0 m x 2,4 m
307,3 cm x 235,6 cm
470 Cu. Ft.
13,3 m
3
Exterior Dimensions
Base
(Roof Edge to Roof Edge)
Size
Width
123 1/4"
313,1 cm
Model No. RGB108ONEU
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES
TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ
SAFETY INFORMATION PROVIDED IN THIS MANUAL
BEFORE BEGINNING CONSTRUCTION. WEAR GLOVES
WHEN HANDLING METAL PARTS.
Depth
Height
Width
95 1/4"
82 1/8"
118 1/4"
241,9 cm 208,6 cm
300,4 cm 228,6 cm 205,4 cm
RGB108FGEU
Interior Dimensions
(Wall to Wall)
Depth
Height
90"
80 7/8"
Door
Opening
Width
Height
55 1/2"
69 1/4"
141,0 cm 175,9 cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the RGB108ONEU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPACEMAKER RGB108ONEU

Summary of Contents for SPACEMAKER RGB108ONEU

  • Page 1 Owner's Manual & Assembly Instructions JC01 Model No. RGB108ONEU RGB108FGEU 728220319 CAUTION: SOME PARTS HAVE SHARP EDGES. CARE Storage Area: 74 Sq. Ft. 470 Cu. Ft. MUST BE TAKEN WHEN HANDLING THE VARIOUS PIECES TO AVOID A MISHAP. FOR SAFETY SAKE, PLEASE READ...
  • Page 2 BEFORE YOU BEGIN..HS02a Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.

  • Page 3: Tools And Materials

    PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 4 SAFETY FIRST..XA04 Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 5 CARE & MAINTENANCE..XA05 Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 6 Base DJ07 The Base For Your Building OPTION 1: Wood Platform If you decide to build your own base, be sure to select the appropriate materials. These are the recommended materials for your base: 2 x 4's (38 mm x 89 mm) Pressure Treated Lumber 5/8"...
  • Page 7 Anchoring XA07 Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) dia.
  • Page 8 Hardware JC09 Remove from bag of screws and save for the last step 65900A #10Bx1/2" (13 mm) 65923 65004 65103 Black Screw (8) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) #8-32 Hex Nut (161) (Packed with Screws) Bolt (161) Screw (358) 65109 66646 #8-32 Acorn Nut (4)

  • Page 9: Parts List

    Parts List JC10 Assembly Part Part Quantity Check Key No. Number Description in Carton List 3719 Door Handle Brace 5210 Wall Panel (Side) 9375 Front Wall Panel 9365 Front Wall Channel 5986 Rear Wall Angle 11236 Right Gable 80173 Left Gable 10497 Horizontal Door Brace 6301...
  • Page 10 Assembly by Key No. JC11...
  • Page 11 Step 1 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) A14ctr 8937 Side Floor Frame (4) (13) 9367 The front oor frame is made up of 8934 three pieces. The side floor frames and the rear floor frame are made up of two pieces.

  • Page 12: Frame Assemblies

    5986 Rear Wall Angle (2) Step 2 Parts Needed For 9917 Rear Wall Channel (2) Frame Assemblies 9922 Side Wall Channel (4) A15 ctr 8839 Side Wall Angle (4) 9917 9917 Rear Wall Channel 118 1/8" 300,0 cm The main frame pieces reinforce the walls.
  • Page 13 Step 3 Parts Needed For 10470 Roof Beam (8) Roof Beam Assemblies D16 ctr (30) 10470 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four 10470 pieces overlapped back to back at the center.
  • Page 14 Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) A17 ctr NOTE: Door Track Splice (painted part) 6403 The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. Using the door track splice, (painted), join the door track (galvanized) pieces end-to-end as...
  • Page 15 Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) 8397 Corner Brace (4) JC16 RIGHT REAR (24) 8937 Assemble the four corners of STEP 8936 the oor frame using two screws at each corner as shown.
  • Page 16 Step 6 Parts Needed For 6521 Wall Panel (2) 9375 Front Wall Panel (2) Corners 9162 Corner Panel (4) JC17 Narrow Side 9162 (26) Wide Side NOTE REAR The remainder of the building assembly 9162 requires many hours and more than one person.
  • Page 17 Door Track Assembly (1) Step 7 Rear Wall Angle Assembly (1) Parts Needed For Side Wall Angle Assemblies (2) Frames Rear Wall Channel Assembly (1) Side Wall Channel Assemblies (2) JC18 6481 Gusset (2) 5986 (30) Wall Angles The main frame pieces give rigidity to Must Face the side walls and provide a surface Inside...
  • Page 18 Step 8 5210 Wall Panel (4) Parts Needed For 6521 Wall Panel (4) Wall Panels 11234 Gusset Strap (2) 67521 Edge Trim (1) JC19 STEP 6521 6521 (112) (17) 5210 6521 STEP 5210 The wall panels come in two widths. 5210 Each wall panel has a crimped rib on one side.
  • Page 19 Step 9 Parts Needed For 9371 Door Jamb (2) Front Channel/Door Jamb 9365 Front Wall Channel (2) JC20 9365 (18) The door jambs reinforce the door STEP opening and provide an attractive trim. Follow these steps for both INSIDE OF door jambs.
  • Page 20 Step 10 Parts Needed For 11236 Right Gable (2) 80173 Left Gable (2) Gable Assemblies 5971 Roof Beam Bracket (4) JC21 The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken as one piece.
  • Page 21 Step 11 Parts Needed For Left Gable Assemblies (2) Right Gable Assemblies (2) Gables/Braces 6635 Gable Brace (2) JC22 (20) Lift and fasten a right and left gable, under angle at corner, to the door track and rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
  • Page 22 Step 12 Parts Needed For Main Roof Beam (1) Roof Beams Single Roof Beam (2) JC23 (12) STEP Spread the two halves of the main roof beam and fasten the roof beam to the gable brace of the front gable. Single Roof Beam Assembly Fasten the other end of the main roof beam to the gable brace of the...
  • Page 23 Step 13 Parts Needed For 8468 Right Roof Panel (1) Right Roof Panel JC24 STEP 8468 8469 Installing the roof panels is best done with a step ladder. Begin installing 7483 7483 roof panels at the back right corner of the building. Each screw and bolt in the roof requires a washer.

  • Page 24: Roof Assembly

    8468 Right Roof Panel (1) Step 14 Parts Needed For 8469 Left Roof Panel (2) Roof Assembly 7483 Roof Panel (2) 6529 Roof Panel (2) JC25 STEP STEP (19) (38) 8469 Left Roof Panel 7483 Roof Panel Install a left roof panel at the left Weather Stripping 7483 Roof Panel 6529 Roof Panel...
  • Page 25 Step 15 8840 Ridge Cap (1) Parts Needed For 7483 Roof Panel (2) Ridge Caps & Panels 8486 Ridge Cap (1) JC26 (16) (40) 8840 STEP Strips Install the rst ridge cap on the completed roof section using bolts and nuts. Fasten roof panel overlaps not used for ridge cap.
  • Page 26 Step 16 8485 Left Side Roof Trim (2) Parts Needed For 8836 Right Side Roof Trim (2) Roof Trim 66847 Vent Gable (4) JC27 (12) Attach the right and left side roof trim to the lower end of the roof panels on each side of the building using screws at each panel overlap.

  • Page 27: Door Assembly

    3719 Door Handle Brace (2) Step 17 Parts Needed For 10472 Right and Left Doors (2) Door Assembly 10497 Horizontal Door Brace (4) 6301 Vertical Door Brace (2) JC28 (12) The steps on this page tell how to assemble the right door. You will per- form exactly the same procedures for 66045 the left door.
  • Page 28 Step 18 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) A31ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 29 SOME FACTS ABOUT RUST XA35 SOME FACTS ABOUT RUST 1. Avoid nicking or scraping the coating surface, Rusting is a natural oxidizing process that occurs inside and out. when bare metal is exposed to moisture. Problem areas include screw holes, unfinished edges, or 2.
  • Page 31 RGB108FGEU RGB108ONEU JC32 Anchoring Anchoring Anchor your building at this time. 728220319...
