UG-182

EVALUATION BOARD SOFTWARE OPERATION

The main window of the AD9523-1 evaluation board software
comprises subsections that correspond to the major functional
blocks of the AD9523-1 (see Figure 6). These subsections, most
of which have their own window, are outlined in this section.
From the main window, the window for each functional block
can be accessed by clicking the appropriate box.
When a subsection window closes after clicking OK, the
WRITE button under REGISTER W/R on the main window
may start blinking. This indicates that there are settings that
have not been loaded to the AD9523-1 evaluation board. Click
WRITE to load these settings to the evaluation board.

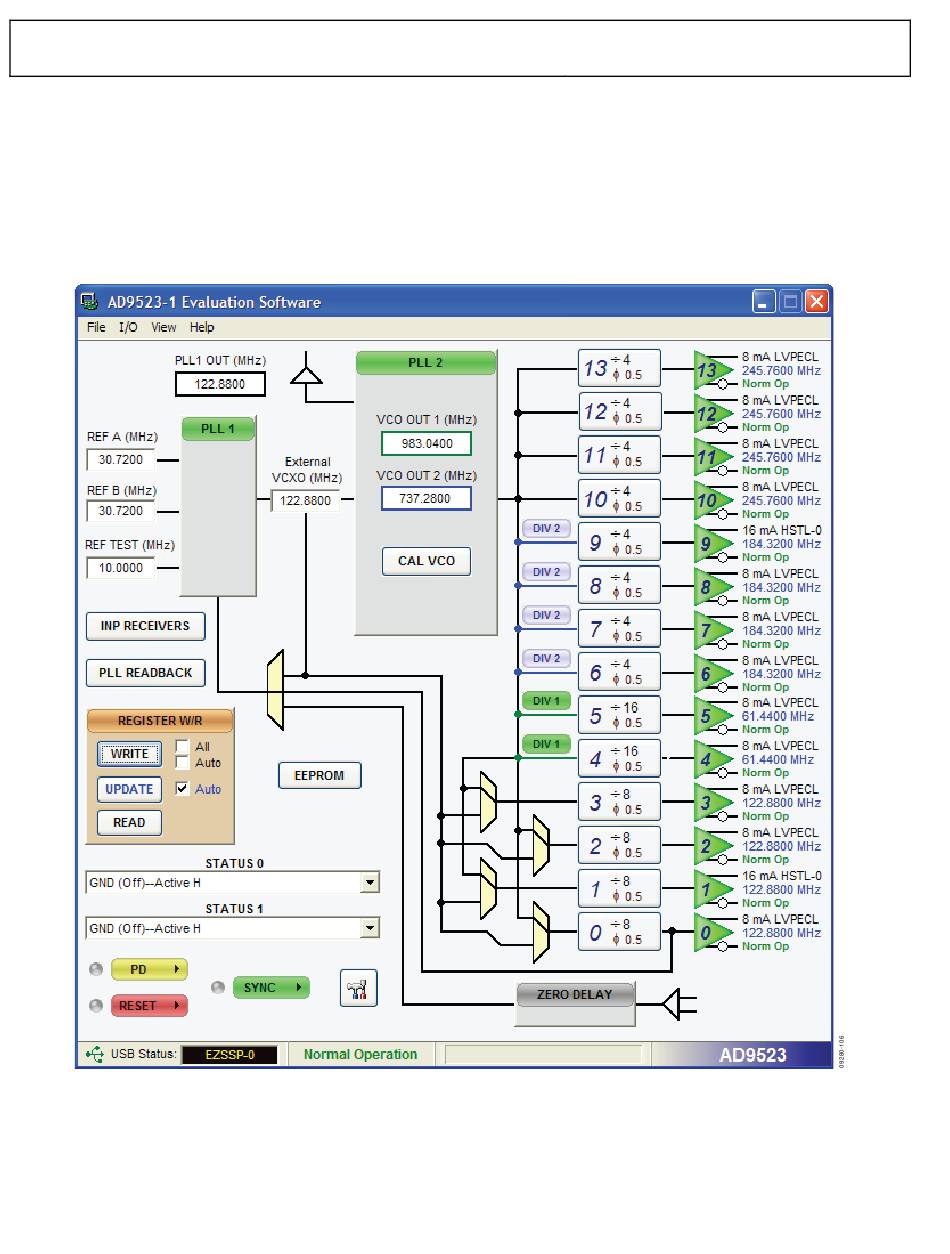

Figure 6. AD9523-1 Evaluation Software Main Window
Rev. 0 | Page 6 of 16
