RG-AP630(CD) Wireless Access Point

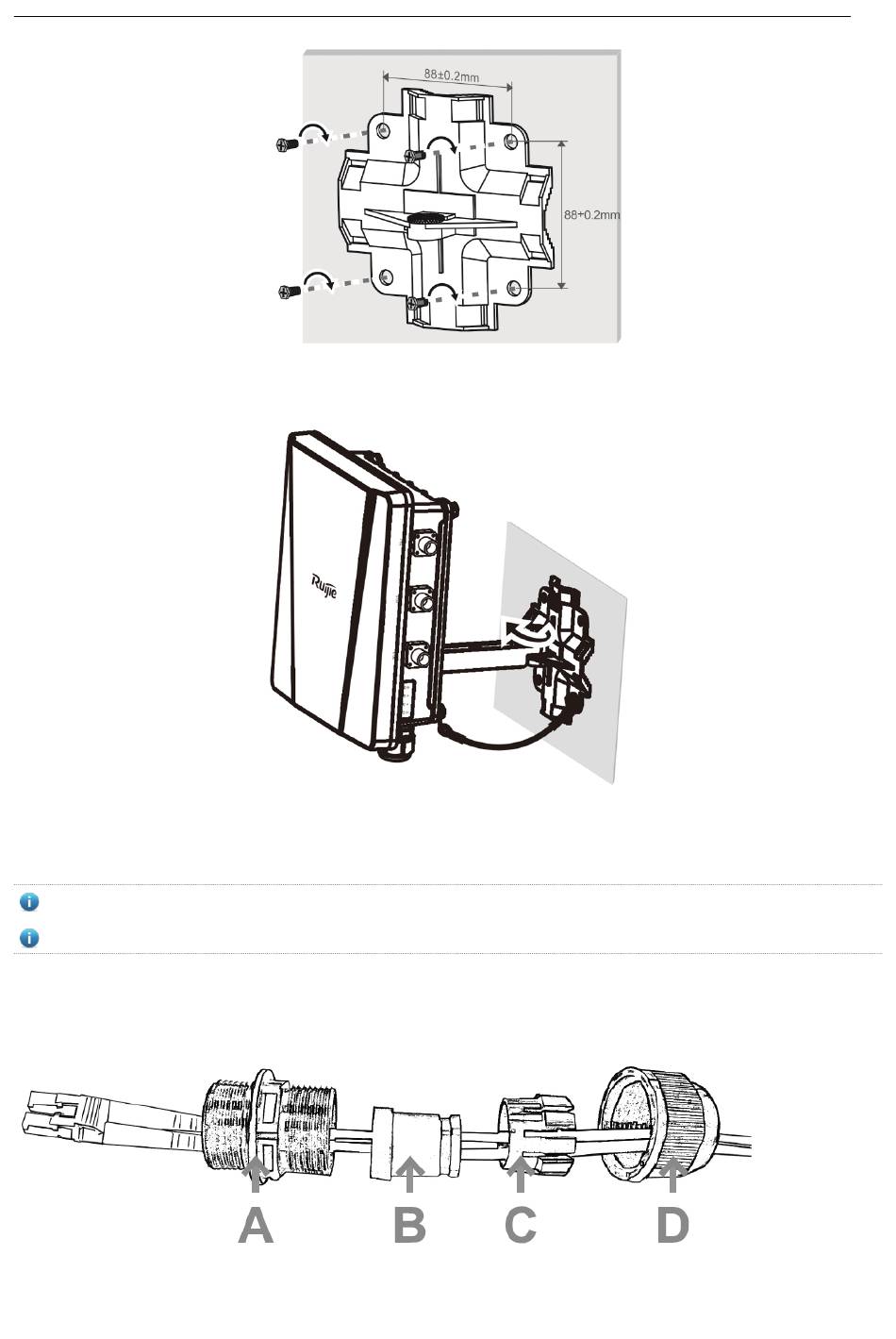

Attach the tie rod to the mounting plate and fix the rod with the supplied M8x40 screws. Adjust the AP orientation, and
drive the two-side screws on the rod. Finally, drive the screw of Loop B into the fourth anchor.

9 Connecting the Fiber Cable

The liquid-tight adapter for optical fiber is supplied for hardware V2.00 and later
Waterproofing material is customer-supplied.
1)
Choose an LC-LC optical fiber with the diameter of 2.7±0.2mm.
2)
Thread the fiber through the liquid-tight adapter in the order as shown.
